Moxa V2201-E4-T [28/61] Watchdog

V2201 Series Windows Software Examples

5-5

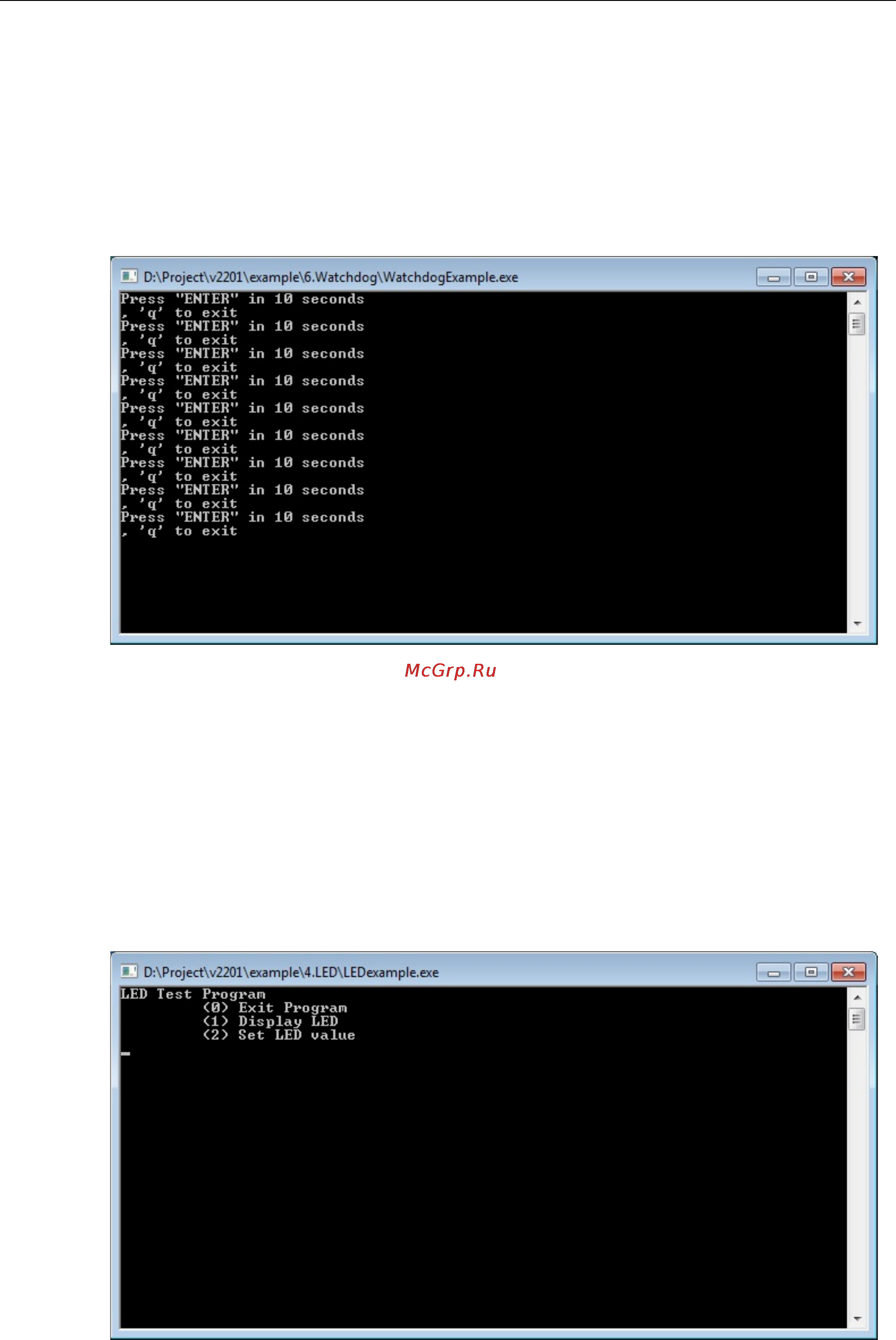

Watchdog

1. Copy the following files from the software CD/DVD to a folder on the V2201.

• mxdwg.dll: \examples\V2201-W7E-example\3.lib\mxdwg\x64\

• mxGeneralIo.dll: \examples\V2201-W7E-example\3.lib\MxGeneralIo\x64\

• Watchdog.exe: \examples\V2201-W7E-example\Release\x64\

2. To prevent the system from rebooting, press [Enter] at least once every 10 seconds; otherwise, the system

will reboot automatically.

3. To stop the watchdog, press q to exit the program

LED

In this section we illustrate how to use the test utility to display and set LED values.

1. Copy the following files from the product software DVD.

• mxgpio.dll: \examples\V2201-W7E-example\3.lib\mxgpio\x64\

• mxGeneralIo.dll: \examples\V2201-W7E-example\3.lib\MxGeneralIo\x64\

• LED.exe: \examples\V2201-W7E-example\Release\x64\

2. Execute LED.exe.
