Moxa V2403-C7-T [21/47] Connecting to the network

V2403 Series Hardware Hardware Connection Description

3-9

Connecting to the Network

Connect your network cable to the embedded computer’s Ethernet port. The other end of the cable should be

connected to your Ethernet network. When the cable is properly connected, the LEDs on the embedded

computer’s Ethernet port turns on to indicate a valid connection.

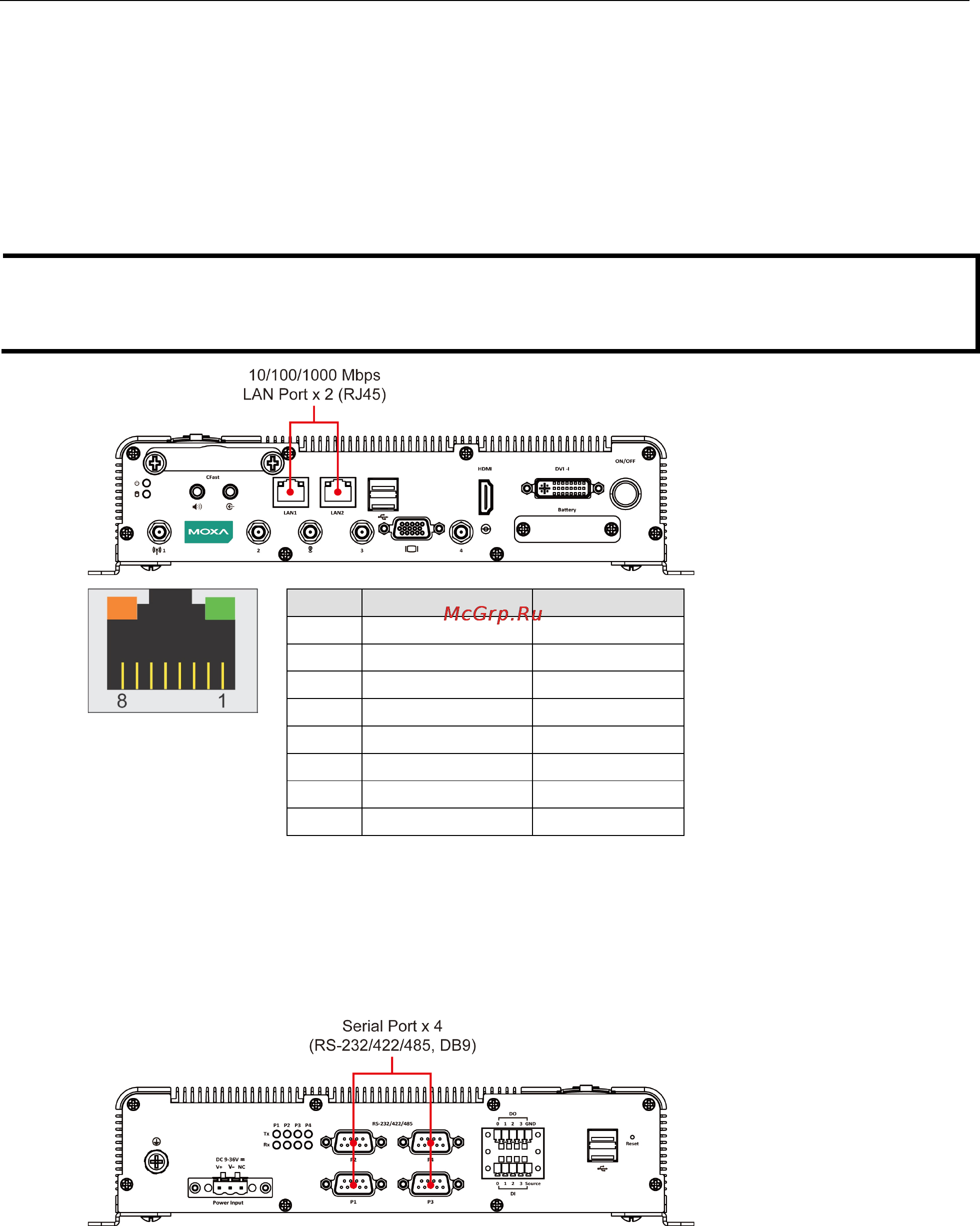

Two 10/100/1000 Mbps Ethernet ports using RJ45 connectors are located on the front panel of the embedded

computer. See the following figure for the location of the Ethernet ports and the pin assignments.

NOTE

e pin assignments for the V2403 computer’s Ethernet port are shown in the following figure. If you create

your own Ethernet cable,

make sure that you match the pin assignments on the connector of the Ethernet

cable.

Pin 10/100 Mbps 1000 Mbps

1 ETx+ TRD(0)+

2 ETx- TRD(0)-

3 ERx+ TRD(1)+

4 – TRD(2)+

5 – TRD(2)-

6 ERx- TRD(1)-

7 – TRD(3)+

8 – TRD(3)-

Connecting to a Serial Device

Use a serial cable to connect your serial device to the embedded computer’s serial port. Serial ports P1 to P4

have male DB9 connectors and can be configured for RS-232, RS-422, or RS-485 communication (refer to the

software manual for your operating system version). The pin assignments are shown in the following table:
