Moxa V2403-C7-T [25/47] Connecting to a vga monitor
![Moxa V2403-C3-W-T [25/47] Connecting to a vga monitor](/views2/1199381/page25/bg19.png)
V2403 Series Hardware Hardware Connection Description
3-13

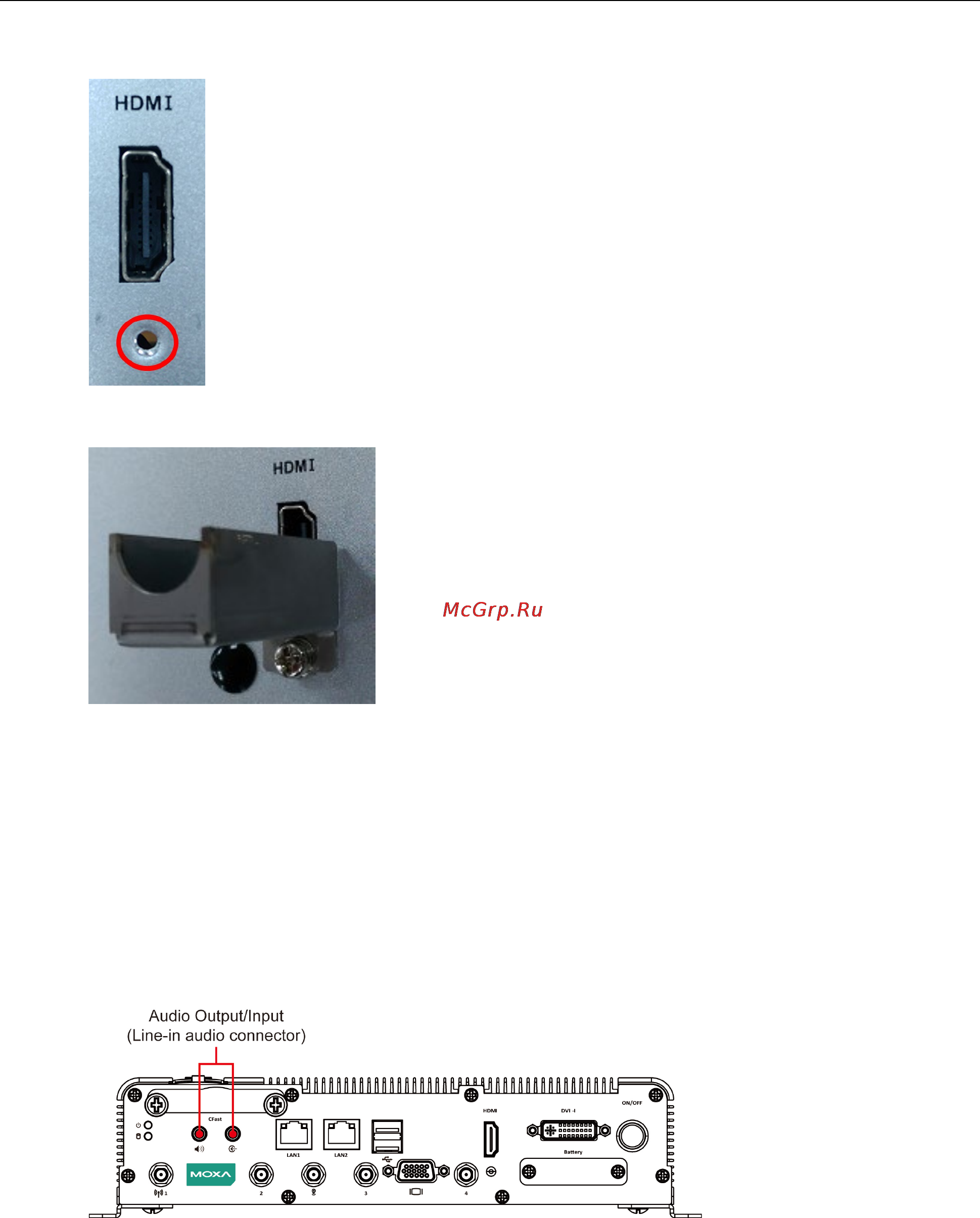

The lock appears as shown below:
The lock should appear as follows after it is attached to the V2403:
Connecting to a VGA Monitor
The V2403 can support VGA output; contact your Moxa sales representative for details.
Connecting to a Speaker or a Headphone
The V2403 comes with a Line-in audio connector for audio input and a Line-out audio connector for audio
output, allowing users to connect a speaker or earphones.
Installing a SATA Hard Disk
The V2403 has one SATA-I/II connector for 2.5" SSD/HDD storage expansion. To expand storage capacity,
purchase an SSD/HDD and an internal storage kit* through Moxa’s CTO** service.
*This must be purchased separately to install an SSD / HDD. For details, check the optional accessories section
of the V2403 datasheet.
**CTO = Configure to order
