V2403 Series Hardware BIOS Setup
4-9

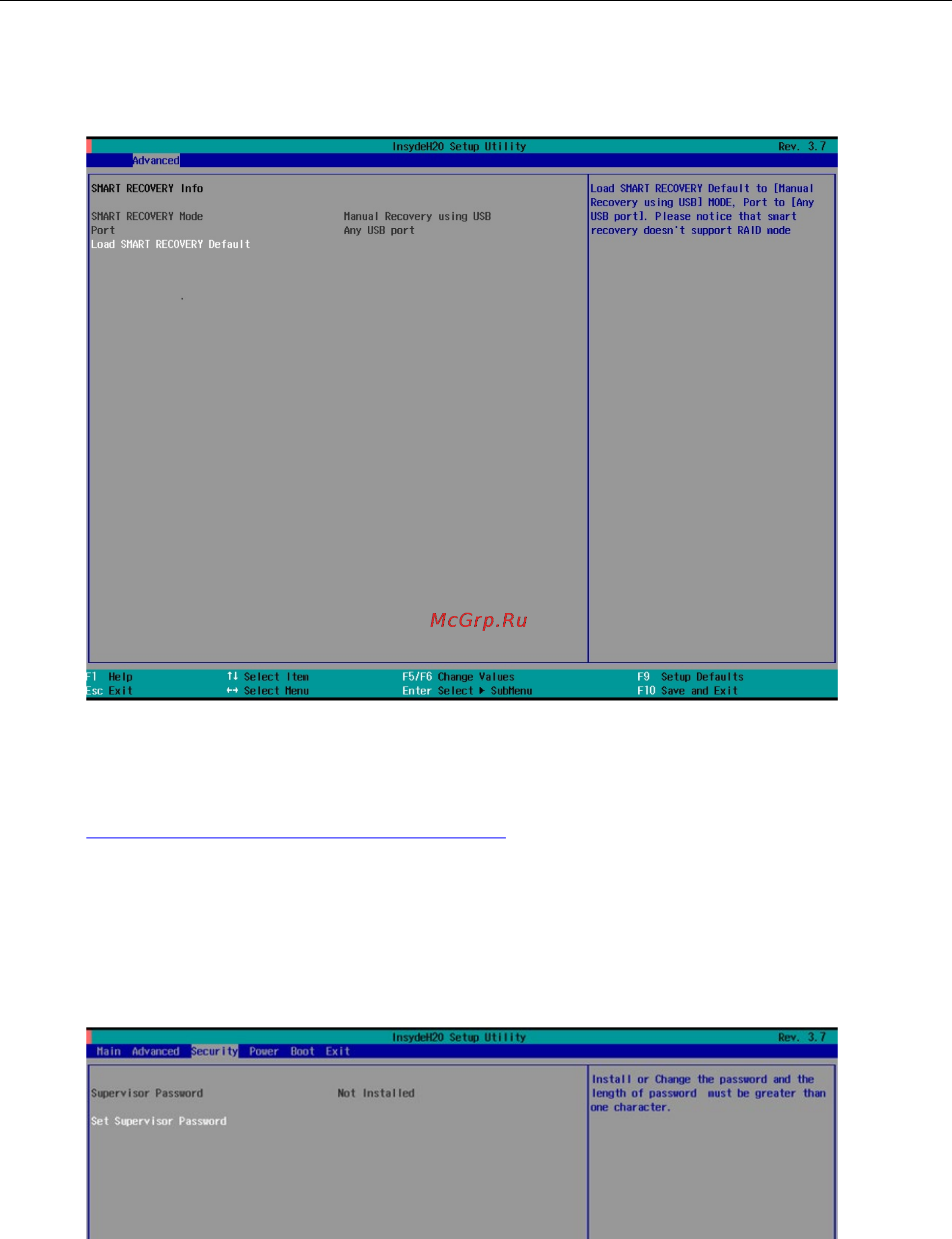

SMART RECOVERY Info
This screen allows you to view Smart Recovery information.
Load SMART RECOVERY Default
This setting allows you to load the Smart Recovery default value. Refer to the Smart Recovery Website at
http://www.moxa.com/product/Smart-Recovery.htm
for details
Options: Yes (default), No
Security Settings
This screen allows you to configure a supervisor password.
