V2403 Series Windows Software Configuring the Serial Interface
3-5

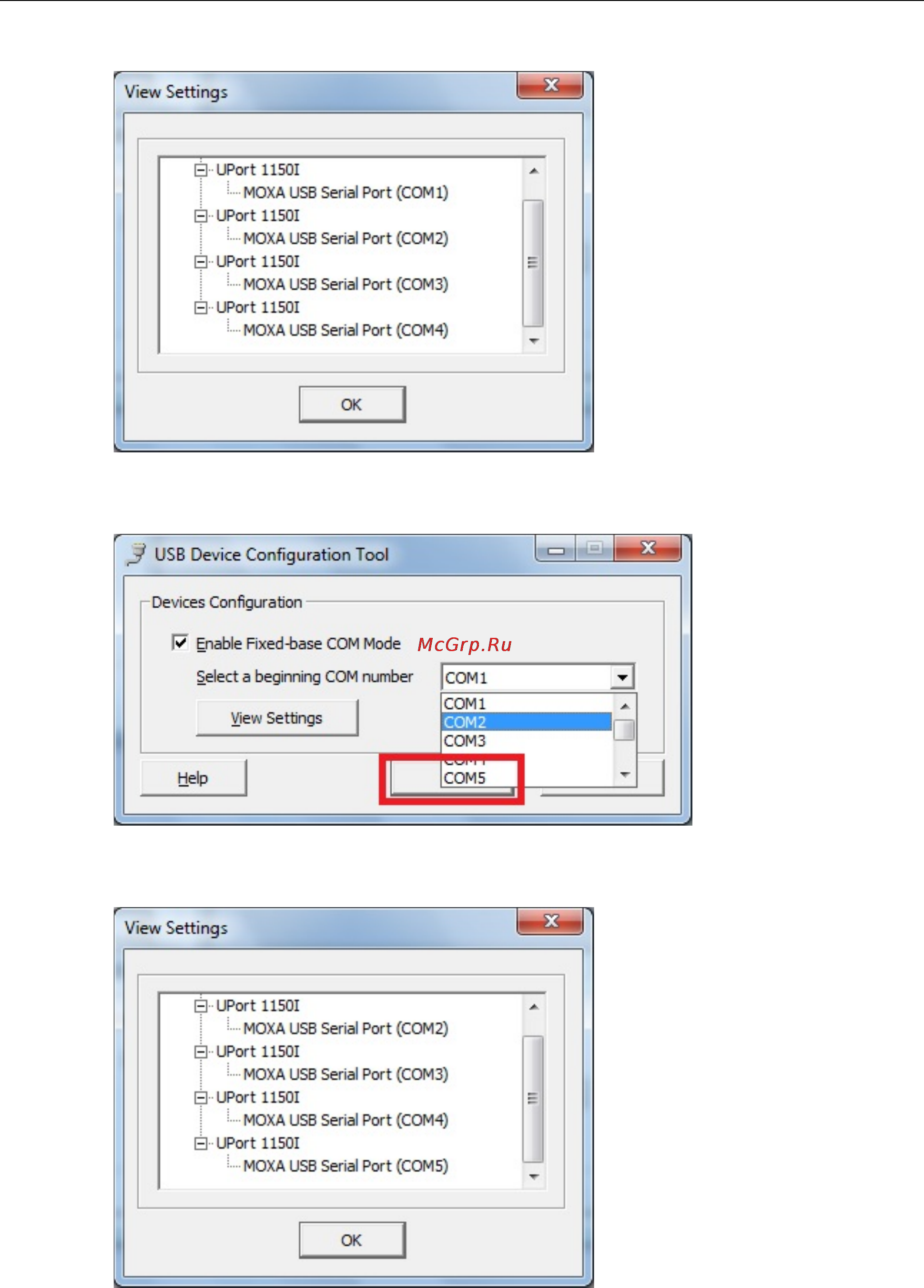

3. In View Settings, you can check which ports Windows is using for a MOXA Serial port; click OK to exit.
4. Select the Enable Fixed-base COM Mode checkbox, select a beginning COM number, and then click OK
to complete the setting.
5. Click View Settings again to check that the beginning COM number was changed, and then click OK to
exit.
