V2403 Series Windows Software System Recovery

7-2

Overview

This section describes how to prepare your computer for recovery in the event the system becomes unstable.

You can perform a system recovery using one of the following system images:

• A clean factory default image.

• A user-generated image created from a fully configured, fully set up system.

Before you perform a system recovery, set up the system environment.

Setting Up the Recovery Environment

To set up the recovery environment on a V2403 computer, you will need a USB drive that has at least 4 GB of

memory, and a copy of the recovery programs and system image file. To set up the recovery environment, do

the following:

1. Copy the recovery programs and system image file on to the USB drive and set up the drive as a live-drive

system with an ISO image of the boot environment.

2. Reboot the system and configure the BIOS to boot the recovery system from the USB port.

3. An image of the current software system will be created on the USB drive. The recovery environment will

use this image when restoring the system.

4. Reboot the system again and configure the BIOS to its original state.

Recovery Procedure

Step 1: Prepare your USB drive

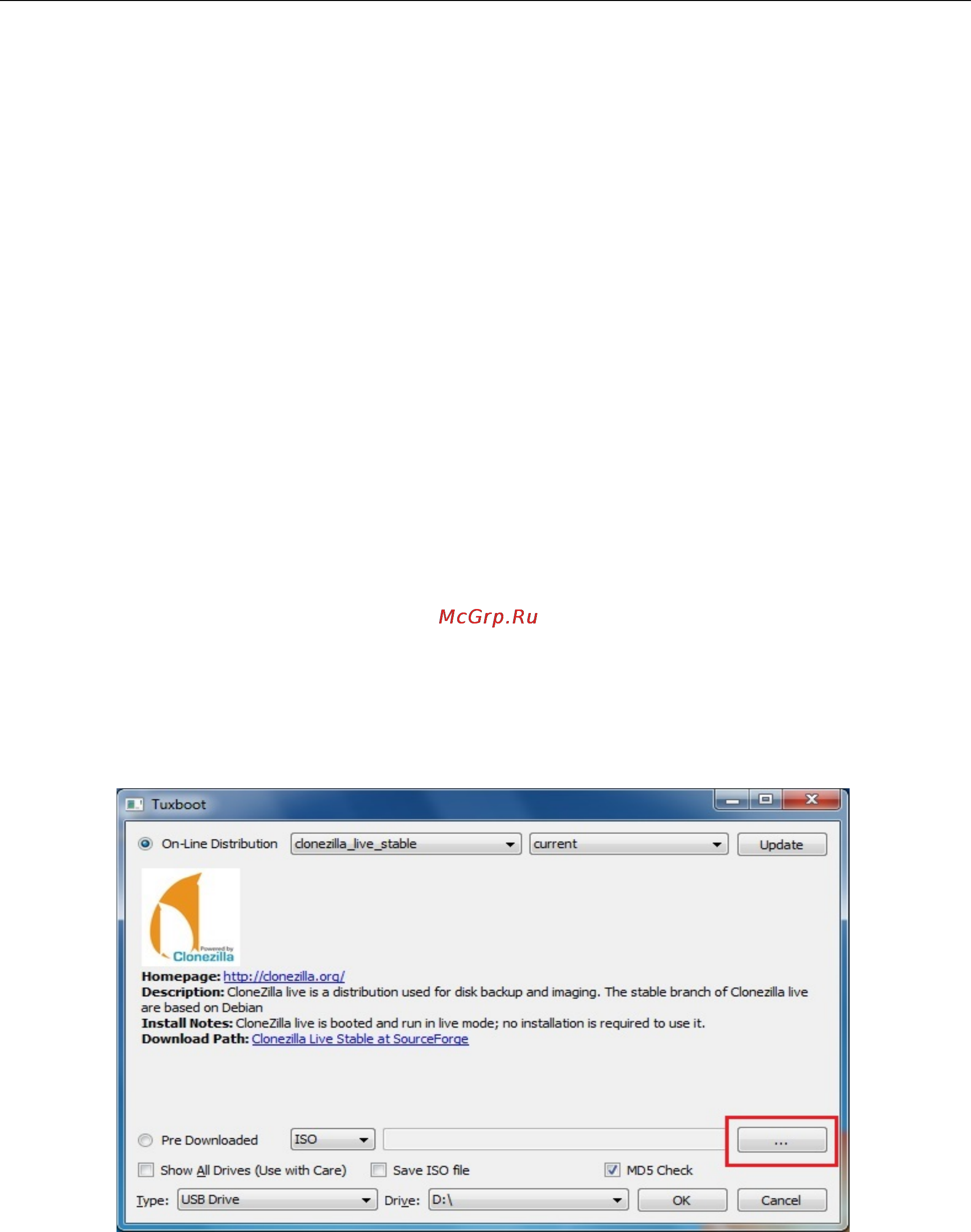

1. Execute tuxboot-windows-23.exe from the <Software DVD>\Recovery\ folder on the Software DVD,

select Pre Download, and then click “…”
