Moxa DA-683-SP-XPE [14/35] Excluding files from fbwf protection

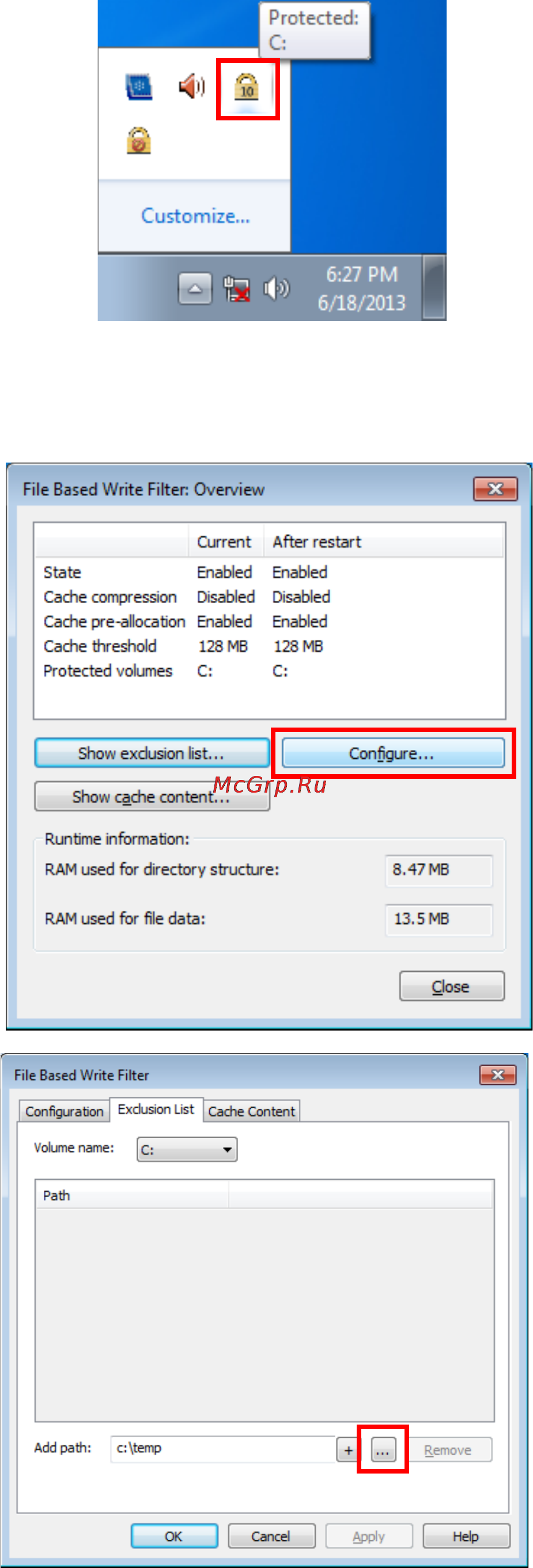

Once again, open the system tray (located in

the lower right corner of the desktop) and

check to verify that the padlock icon now

shows you have enabled FBWF. The icon

should have changed to become a padlock

displaying the number 10, as shown in the

figure at right.

Excluding Files from FBWF Protection

1. Click on the FBWF icon (in the desktop

systray) to open the Overview dialog. Click

on Configure to switch to the configuration

interface.

2. Click on the Exclusion List tab. Make sure

the correct drive volume is shown in the

dropdown menu labeled Volume Name; if

not, select the correct volume from the

dropdown menu.

Next, you must select the file path you wish

to exclude from FBWF protection; this wll

allow the drive to write to the selected files

and directories, so be careful. You may

indicate an entire section of the file tree by

selecting an entire file path, or you may

select individual files.

To select individual files, click on the Browse

button (marked with ellipses, in the lower

right corner, as shown at right). This will

open a Windows Explorer interface.
