4. Click OK, and the boot environment and bootloader will be copied to your USB drive.
5. Because of the file system naming conventions used, for any given computer only a single recovery image
may be used on any given USB drive. Consequently, at this point, users need to make a decision about
which sort of system recovery is preferred:
A. a basic recovery of the root OS, or
B. a recovery image of the fully configured OS, with all user-installed software applications and
scripts.

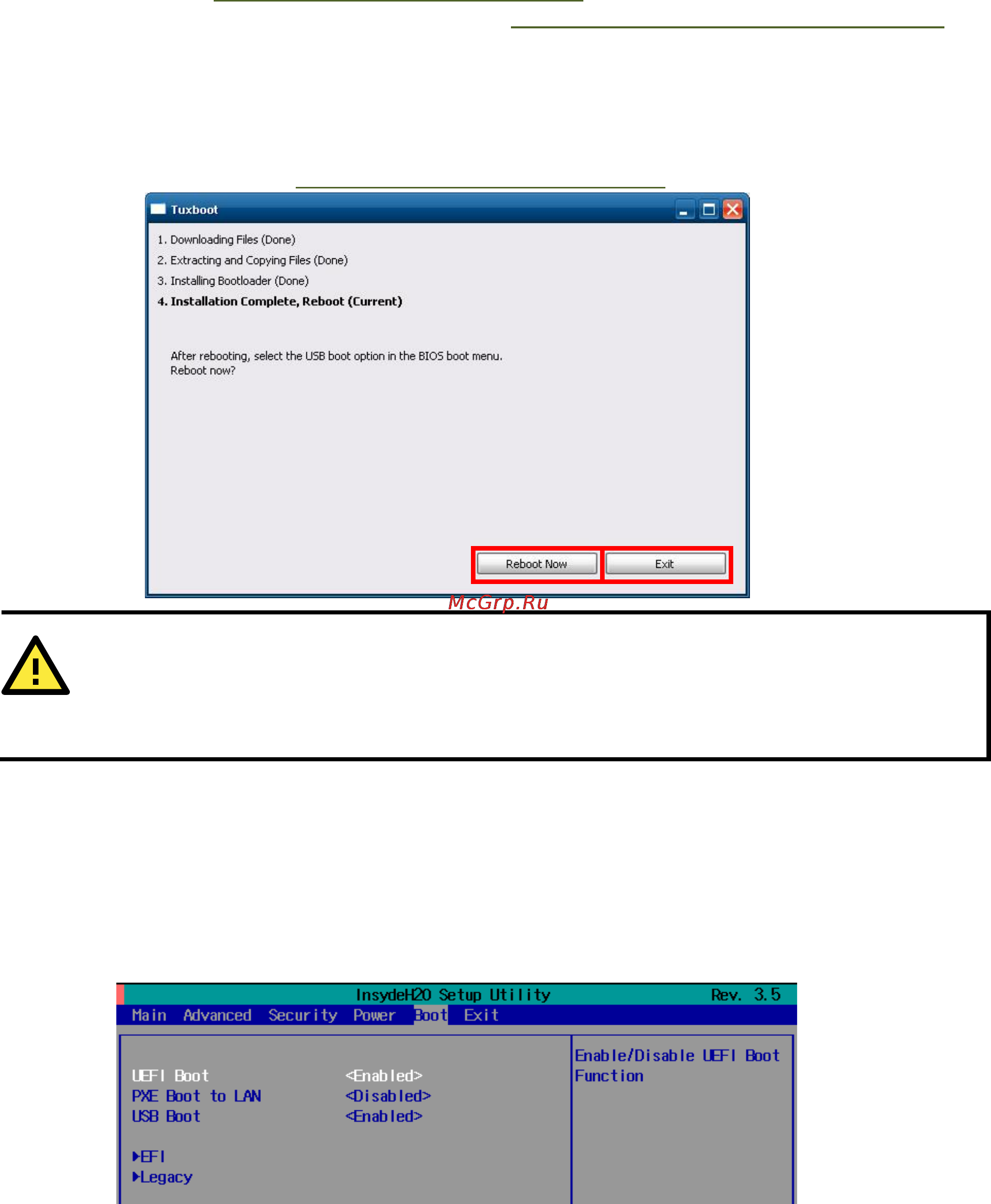

A. To configure the recovery environment to boot into a fully configured system, click Reboot Now to
close the installation environment and restart the computer. You should then proceed to the next
section, Step 2: Setting the BIOS to Boot via USB and continue the installation of the recovery
environment by following the instructions at Step 3 (opt.): Creating a Custom System Image.
B. To configure the recovery environment to boot into a clean OS image with no applications, you should
instead click Exit here to complete the installation and return to the OS. From within the desktop
environment, you should manually copy the directory containing the base OS from the software DVD
over to the USB drive. To do this, copy #:\
<SoftwareDVD>\recovery\os_image over to the
partition image directory,
F:\home\partimag\. At this point, Step 1 has been completed, and you
should proceed to Step 2: Setting the BIOS to Boot via USB.
ATTENTION
Because of the
peculiarities of the
file tree naming, it is not possible to include both the base OS image and a
fully configured system image on the same USB stick
. If you wish
to configure both, then two USB drives must
be used, each configured according to the two different alternatives offered here.
Step 2: Setting the BIOS to Boot via USB
At this stage, reset the BIOS so that the system boots directly from the USB. This must be done before the rest
of the system recovery environment can be configured
1. Turn on the computer, during the POST process, press F2 until you hear a long beep. You should then enter
the BIOS setup menu.
2. Use the arrow keys to navigate to the Boot tab, and then press Enter.
