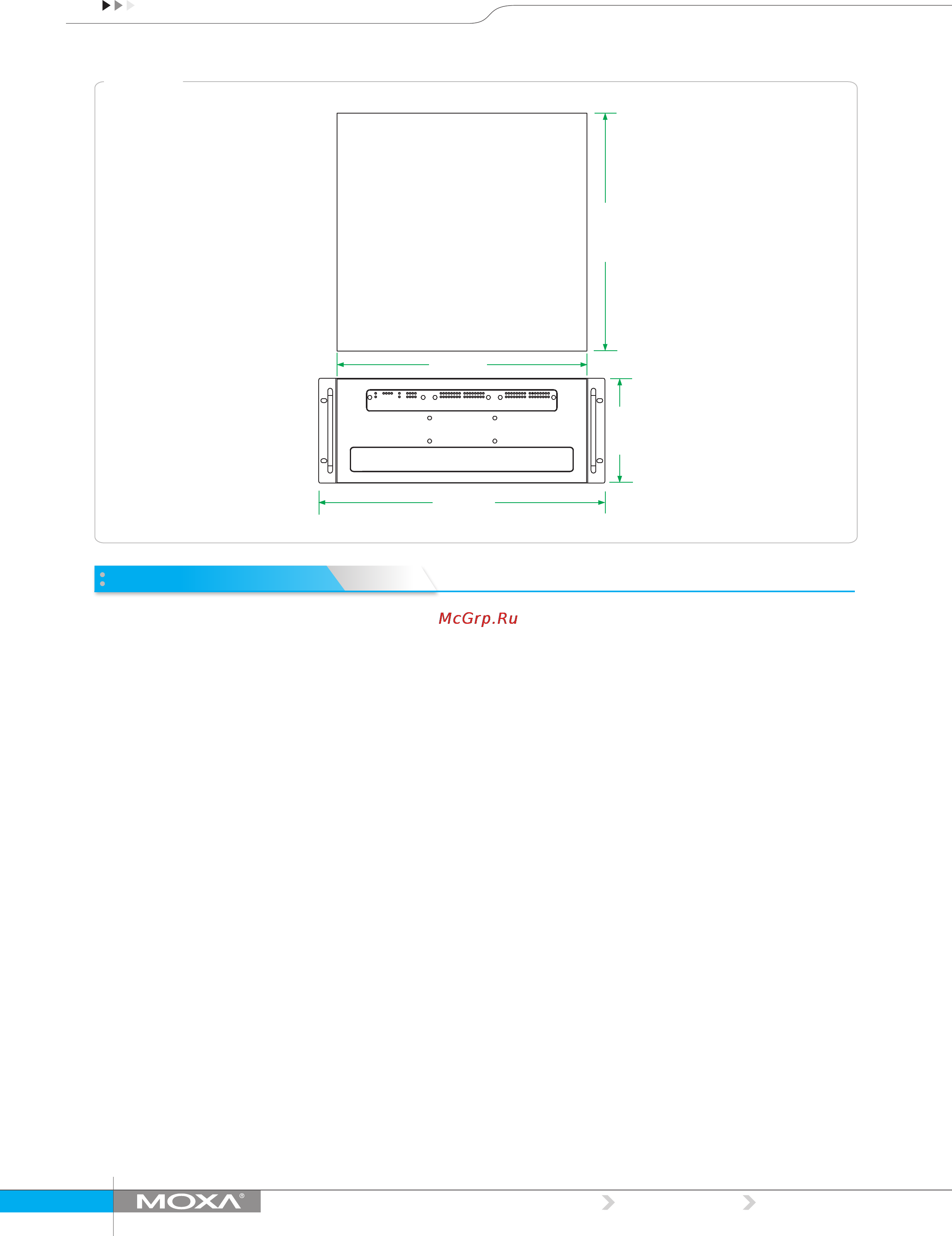

Dimensions

Unit: mm (inch)

Hardware Speciﬁcations

Computer

CPU: Intel Core 2 Duo T7500 2.2 GHz processor

OS (pre-installed): Windows Embedded Standard 2009, Linux 2.6

System Chipset: Intel GME965 + ICH8M

BIOS: 8 Mbit SPI Serial Flash, PCI Plug & Play, ACPI function support

FSB: 800 MHz

System Memory: 2 GB capacity, 1 GB pre-installled: 1 slot of

DDR2-533/667 200-pin SO-DIMM SDRAM

USB: USB 2.0 compliant hosts x 4, type A connector, supports system

boot up

Storage

Built-in: 2 GB industrial DOM onboard to store OS

Storage Expansion: CompactFlash socket

HDD Support: 2 x SATA connector, 1 x IDE connector

Other Peripherals

KB/MS: 1 PS/2 interface, supports standard PS/2 keyboard and PS/2

mouse

Display

Graphics Controller: Integrated Intel graphics media accelerator (GMA

X3100)

Display Memory: Dynamic video memory technology

Intel Clear Video Technology: MPEG-2 hardware accelerator,

Microsoft DirectX 9

Display Interface: CRT interface for VGA output (DB15 female

connector)

Resolution: QXGA maximum with resolution up to 2048 x 1536 at

60 Hz

Ethernet Interface

LAN: 4 auto-sensing 10/100/1000 Mbps ports (RJ45)

Magnetic Isolation Protection: 1.5 kV built-in

Serial Interface

Serial Standards: 2 RS-232 ports (DB9 male)

ESD Protection: 4 kV for all signals

Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: XON/XOFF

Baudrate: 50 bps to 115.2 kbps

Serial Signals

RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND

Digital Input

Input Channels: 4, source type

Input Voltage: 0 to 30 VDC

Digital Input Levels for Dry Contacts:

• Logic level 0: Close to GND

• Logic level 1: Open

Digital Input Levels for Wet Contacts:

• Logic level 0: +3 V max.

• Logic level 1: +10 to +30 V (DI Source to DI)

Connector Type: 6-pin screw terminal block (4 points, DI Source,

GND)

Isolation: 4 kV optical isolation

Digital Output

Output Channels: 4, sink type

Output Current: Max. 200 mA per channel

On-state Voltage: 24 VDC nominal, open collector to 30 V

Connector Type: 5-pin screw terminal block (4 points, GND)

Isolation: 4 kV optical isolation

LEDs

System: Power x 1, Storage x 1

LAN: 100M x 4, 1000M x 4

Power Failure: LED x 2

Programmable: LED x 4

Module: Module A x 16, Module B x 16, Module C x 16, Module D x 16

400 (15.75)

180 (7.09)

420 (16.54)

480 (18.90)
