Moxa UC-8132-LX-CG [4/12] Installing the uc 8112 me t

- 4 -

Wireless

Signal

Strength

Green

Yellow

Red

The number of glowing LEDs indicates the

signal strength.

3 (Green + Yellow + Red): Excellent

2 (Yellow + Red): Good

1 (Red): Poor

Off

Wireless module is not detected.

Programm

able

diagnostic

LEDs

Green

Yellow

Red

These three LEDs are programmable. For

details, refer to the “

Default Programmable

Button Operation" section in the Hardware

User’s Manual.

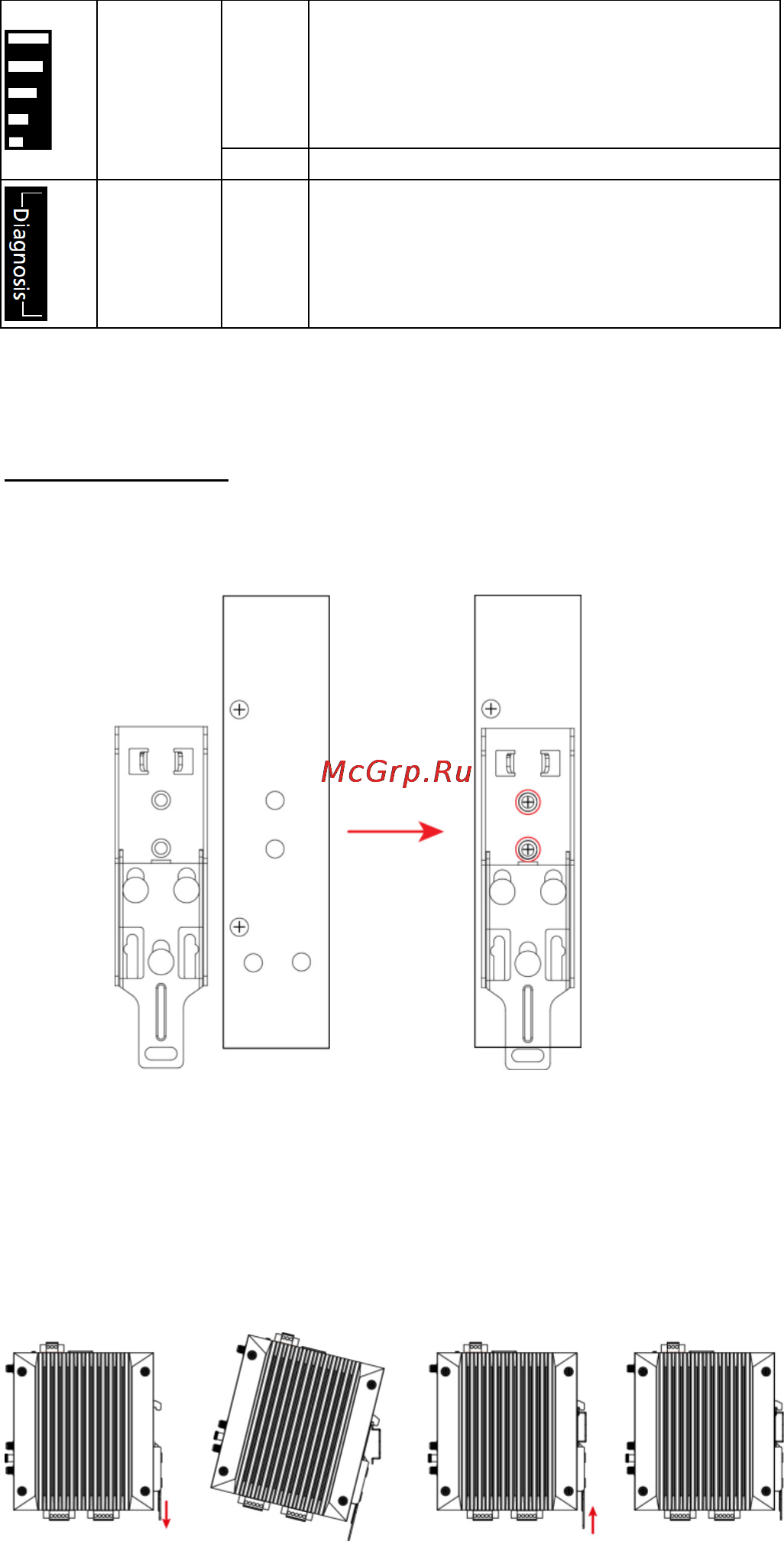

Installing the UC-8112-ME-T

Two sliders are provided at the back of the unit for DIN-rail mounting or

wall mounting.

DIN-Rail Mounting

1. Attach the DIN-rail mounting kit on the rear panel of the

UC-8112-ME-T as shown in the following illustration. Make sure

that the two screws are securely fastened.

2. Pull down the bottom slider of the DIN-rail bracket located at

the back of the unit

3. Insert the top of the DIN rail into the slot just below the upper

hook of the DIN-rail bracket.

4. Latch the unit firmly on to the DIN rail as shown in the

illustrations below.

5. Push the slider back into place.
