Moxa UC-8132-LX-CG [6/12] Attention

- 6 -

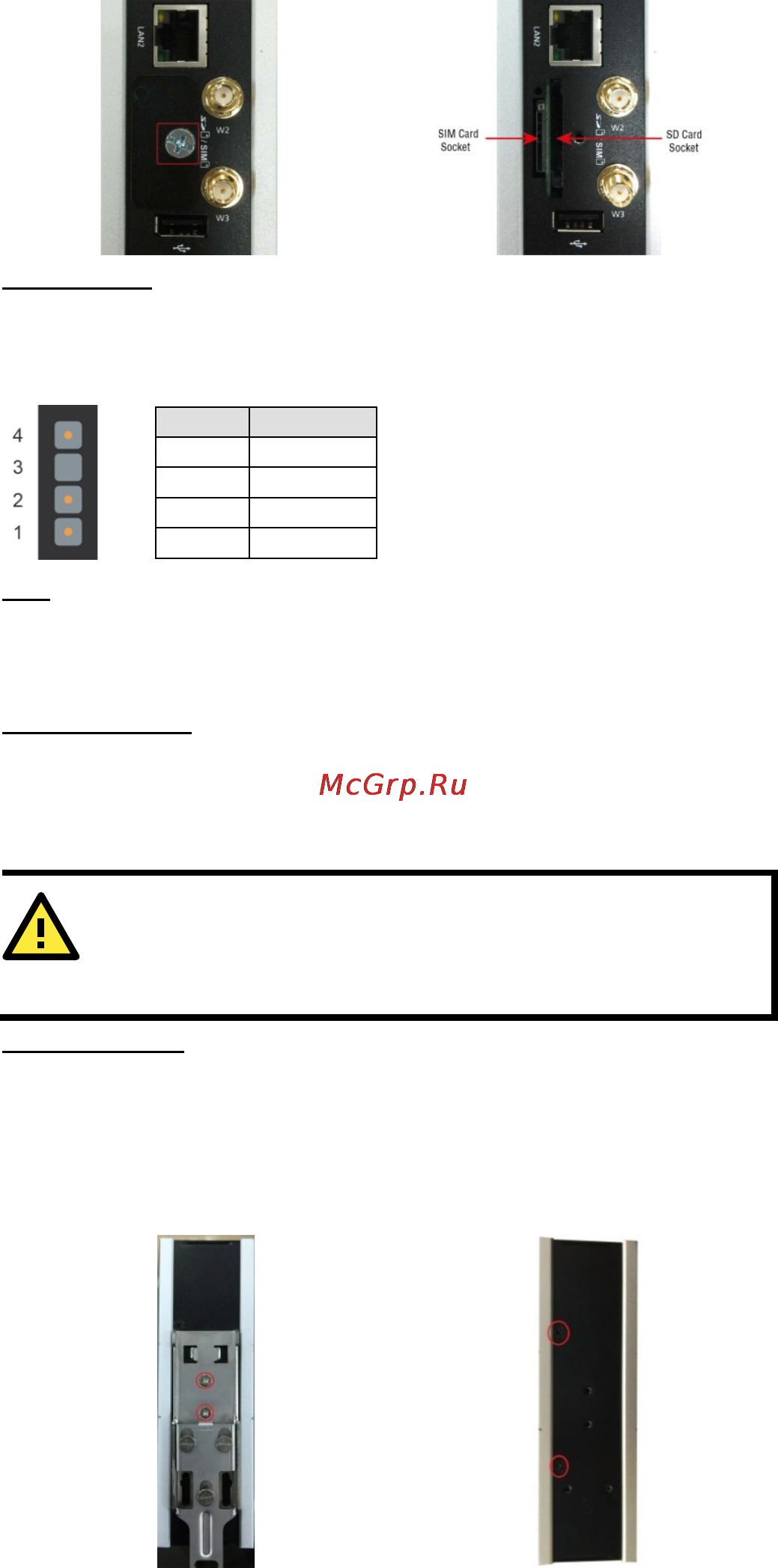

Console Port

The console port is an RS-232 port that can be connected to with a 4-pin

pin header cable. You can use this port for debugging or firmware

upgrade. Note that the cable is not included in the package.

Signal

TxD

RxD

GND

USB

The USB 2.0 port is located at the lower part of the front panel and

supports a USB storage device driver. By default, the USB storage is

mounted at

/mnt/usbstorage.

Real-Time Clock

The real-time clock in the UC-8112-ME is powered by a lithium battery.

We strongly recommend that you do not replace the lithium battery

without the help of a Moxa support engineer. If you need to change the

battery, contact the Moxa RMA service team.

ATTENTION

There is

a risk of explosion if the battery is replaced with an

incorrect type of battery.

Cellular Module

The UC-8112-ME-T comes with a built-in PCIe socket for wireless

communication. To install a cellular module, do the following:

1. Remove the two screws on the

DIN-rail mounting bracket and

detach the bracket from the unit.

2. Remove the two screws on

the rear panel.
