Moxa UC-8410A-LX [21/28] Installing the wireless modules

UC-8410A Hardware Hardware Connection Description

4-7

Installing the Wireless Modules

The UC-8410A comes with one internal socket that allows you to install either a Wi-Fi module or a cellular

module.

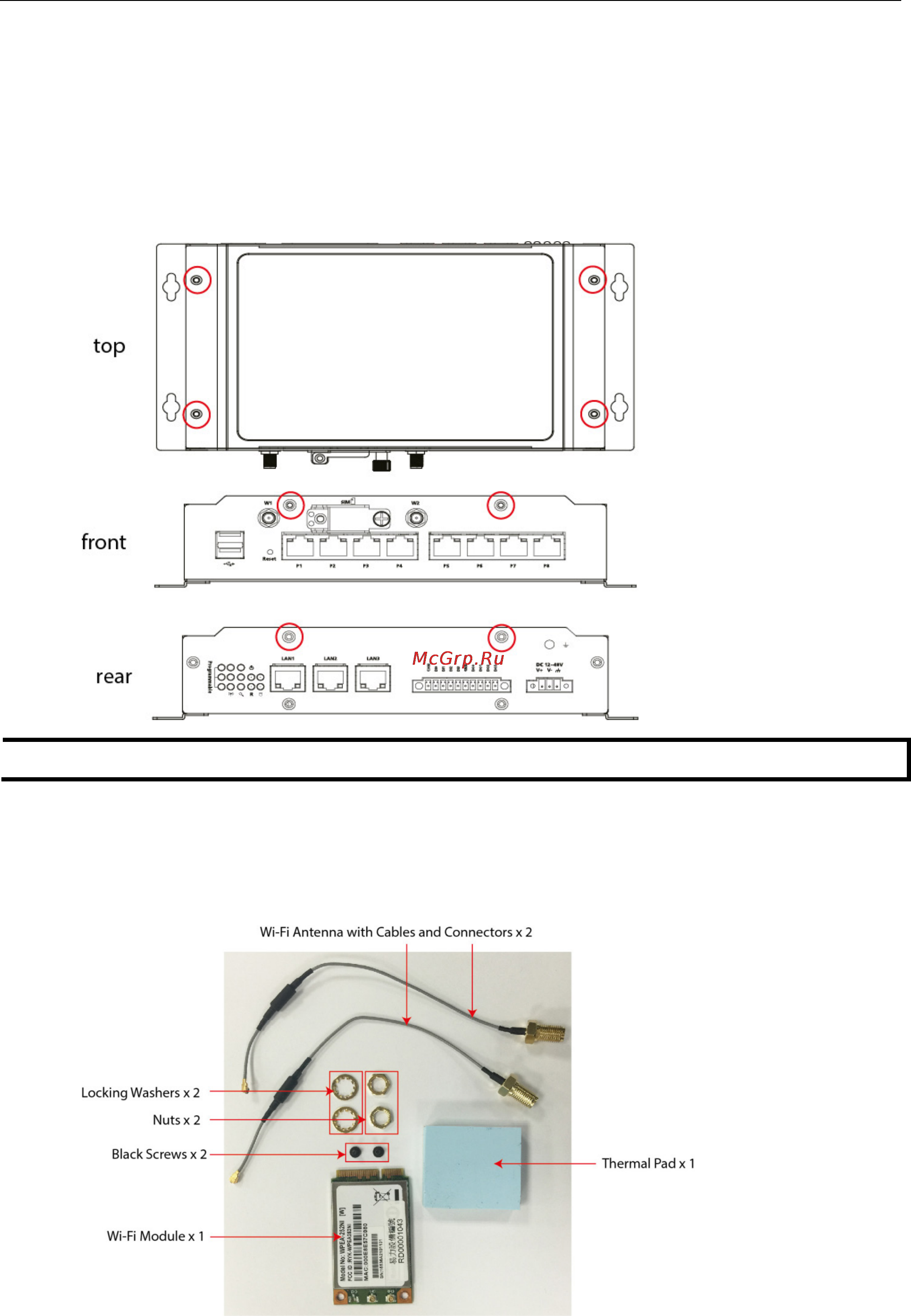

To install a wireless module you must first remove the four screws on the top panel, two screws on the front

panel, and two screws on the rear panel, and remove the top cover of the UC-8410A. See the following figures

for details on the location of the screws:

NOTE

The top cover comes loose only after you have removed all eight screws as indicated in the diagrams.

Installing the Wi-Fi Module

The Wi-Fi Module package includes 1 Wi-Fi module, 2 Wi-Fi antenna cables and connectors, 1 thermal pad, 2

black screws 2 locking washers, and 2 nuts.
