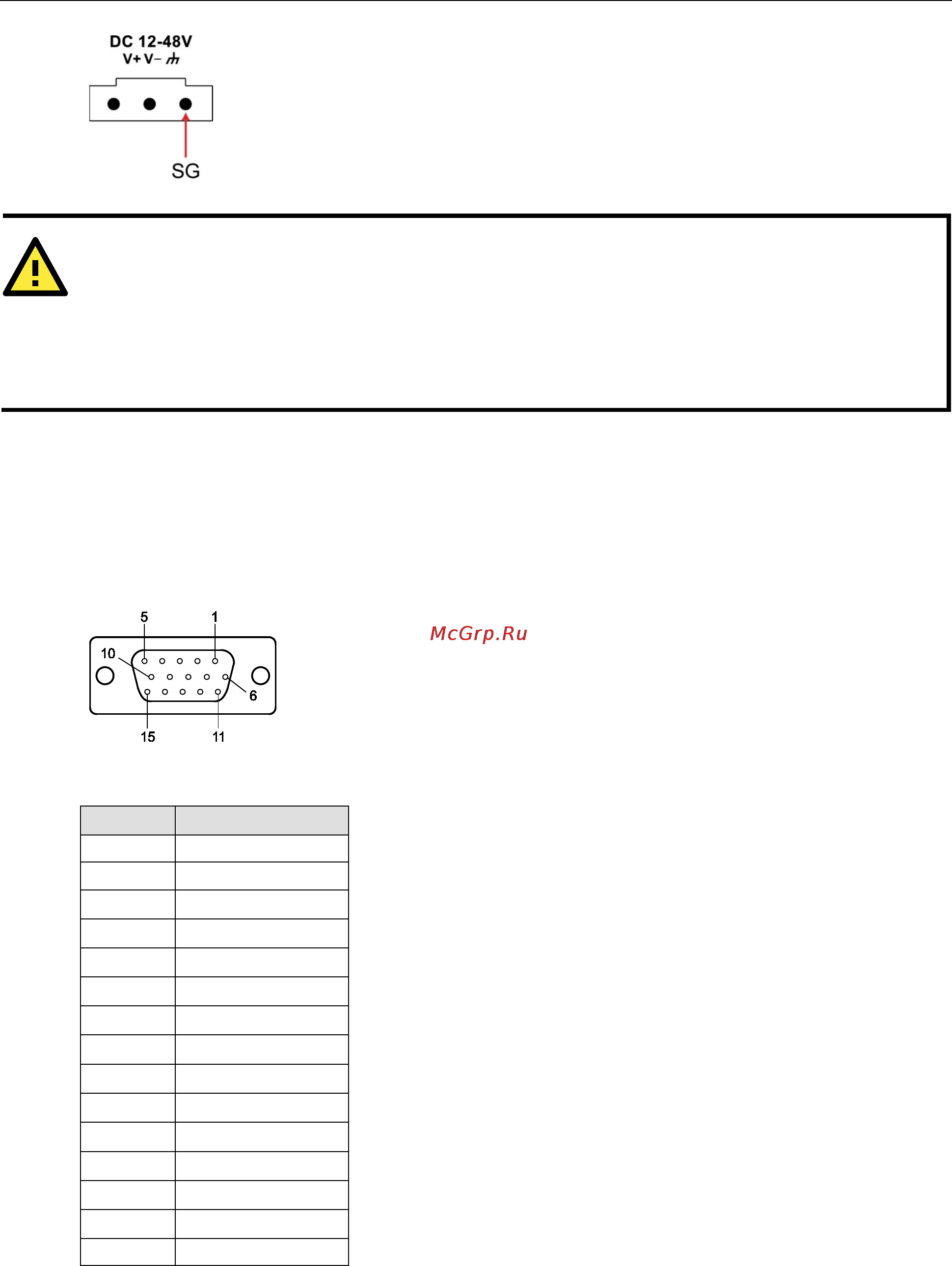

UC-8410/8416/8418/8430 Hardware Hardware Connection Description
4-3
SG:
The Shielded Ground (sometimes called Protected Ground) contact is the right most
contact of the 3
-
pin power terminal block connector when viewed from the angle shown here.
Connect the SG wire to an appropriate grounded metal surface.
ATTENTION
A shielded
-type power cord is required in order to
meet FCC emission limits and also to prevent interference
to nearby radio and television reception. It is essential that only the supplied power cord be used.
You are cautioned that changes or modifications not expressly approved by the party responsible
for
compliance could void your authority to operate the equipment.
Connecting to VGA Monitors (UC-8430 only)
The UC-8430 comes with two D-sub 15-pin female connectors on the rear panel to connect two VGA monitors.
To ensure that the monitor image remains clear, be sure to tighten the monitor cable after connecting it to the
UC-8430. The pin assignments of the VGA connectors are shown below.
DB15 Female Connector
Pin No. Signal Definition
1 Red
2 Green
3 Blue
4 NC
5 GND
6 GND
7 GND
8 GND
9 VCC
10 GND
11 NC
12 DDC2B Data
13 HSYNC
14 VSYNC
15 DDC2B Clock
