UC-8410/8416/8418/8430 Hardware Hardware Connection Description
4-7
CompactFlash
The UC-8410/8416/8418/8430 provides one CompactFlash slot that supports CompactFlash type I/II card
expansion. Currently, Moxa provides a CompactFlash card for storage expansion. Be sure of power off the
computer before inserting or removing the CompactFlash card.
See the following description for CompactFlash card installation instructions.

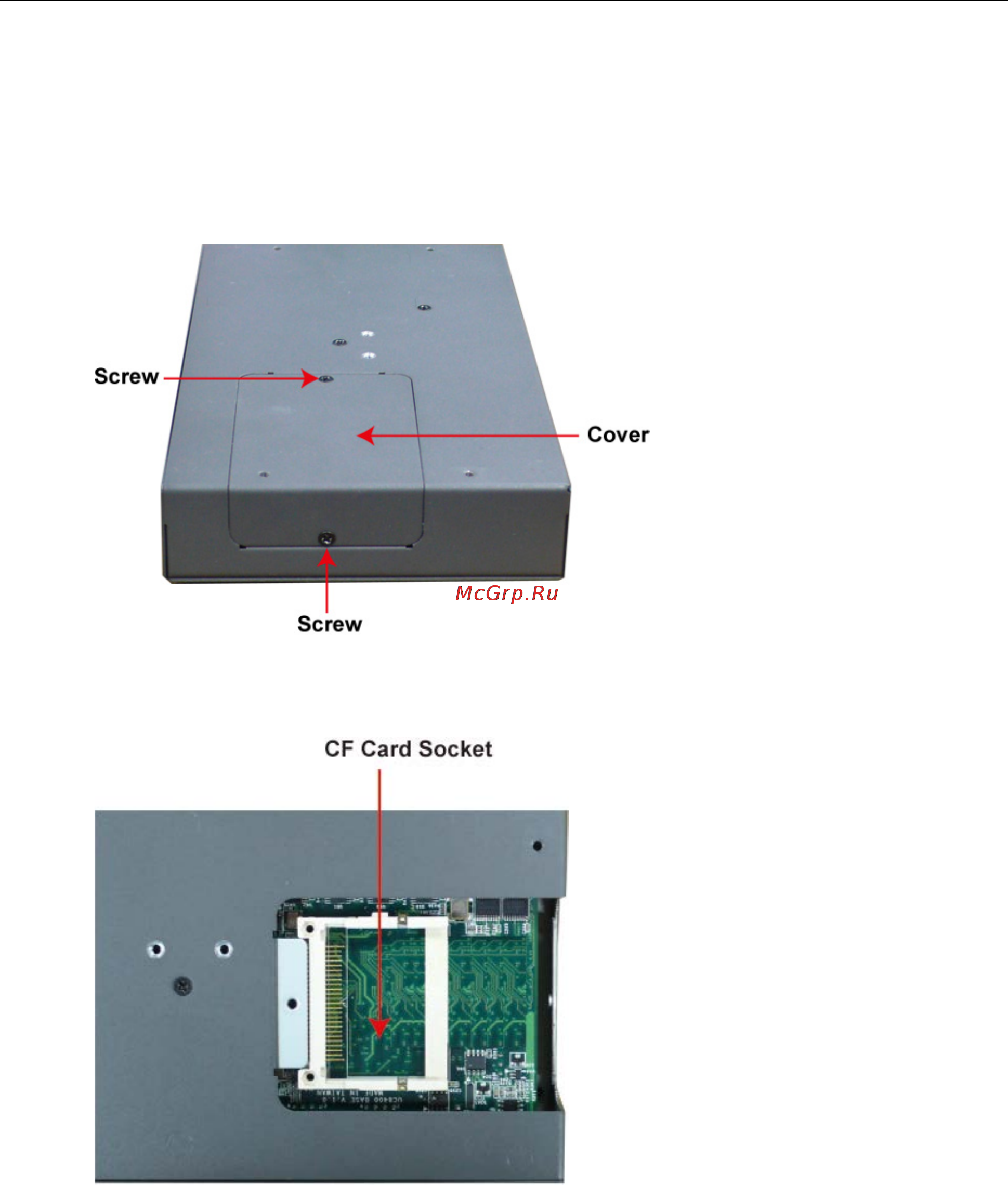

The CF cover is located on the back of the UC-8410/8416/8418/8430. Use a screwdriver to remove the cover
and access the slot. See the following figure for the locations of the CF socket.
