V2416A W7E Series Moxa SynMap Package
6-8

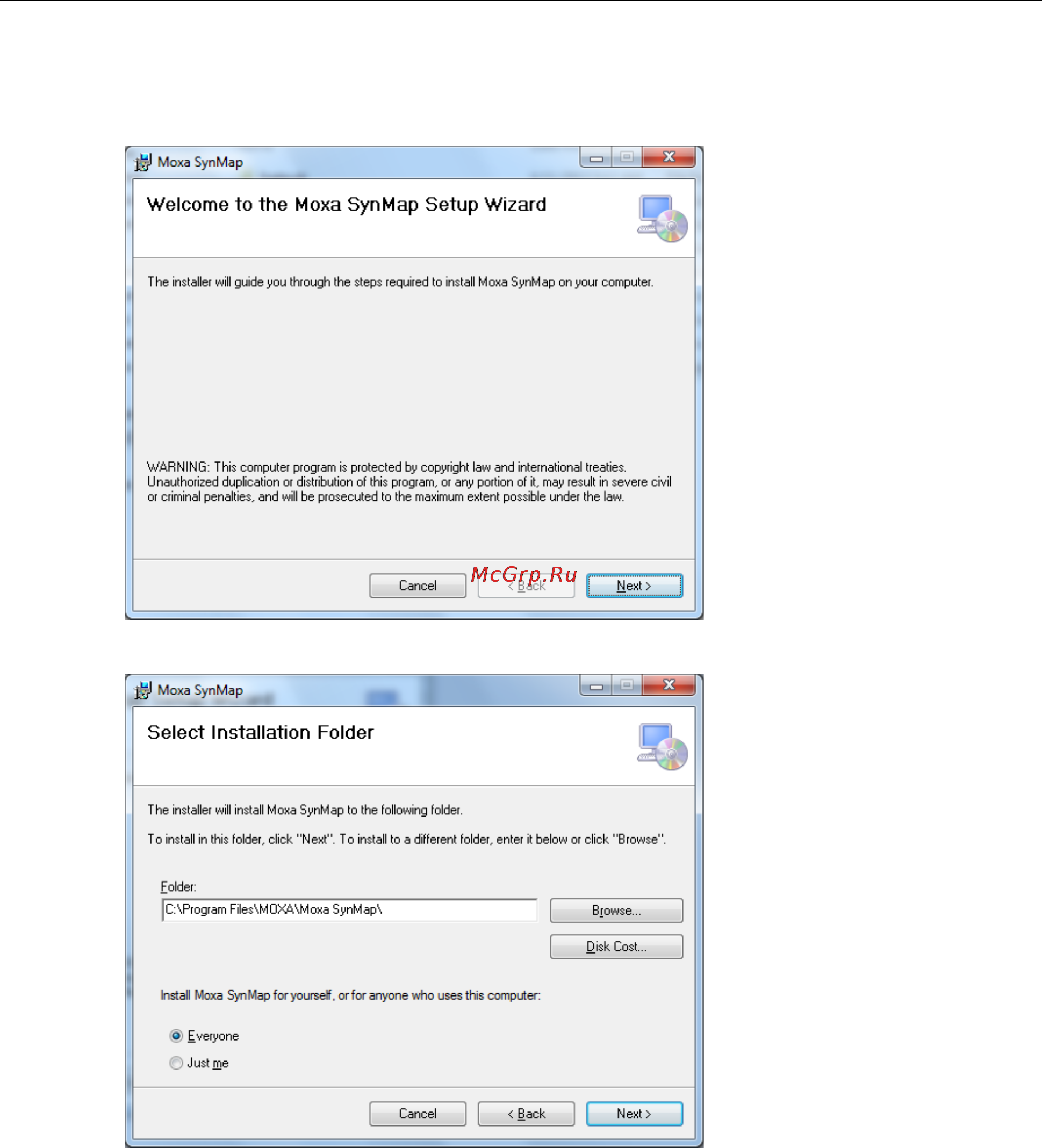

To install the Moxa SynMap package, complete the following steps:
1. On the software DVD, double-click mxSynMap_setup in the \utility\mxSynMap\ folder.
2. A Welcome screen appears. Click Next.
3. Accept the default installation folder or click Browse to select one; then, click Next.
