V2416A W7E Series Moxa SynMap Package
6-2
Overview
The V2416A features two SATA expansion slots that enable you to install 2.5-inch storage drives (HDD or SSD).
To enable the hot swap function, you must install the Moxa Hot Swap utility that enables you to safely remove
a storage drive from the V2416A.
Installing the Moxa Hot Swap Utility

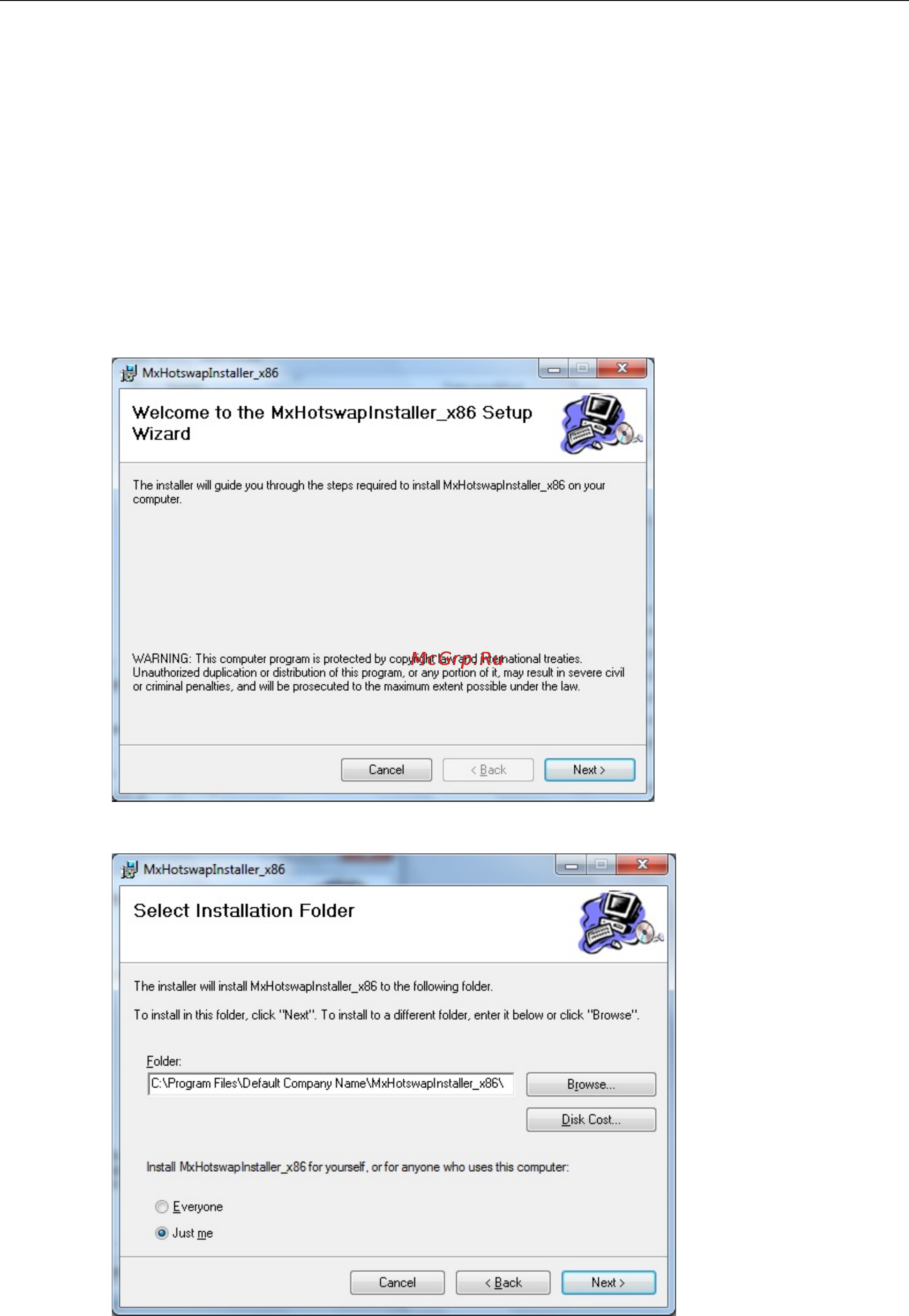

1. On the software CD/DVD that comes with your V2416A, double-click MxHotswapInstaller_x86.msi in
the <software DVD>\utility\ mxHotswap\x86 folder.
2. The Setup Wizard screen appears. Click Next.
3. Accept the default destination folder or click Browse to select one; then, click Next.
