V2416A W7E Series Moxa SynMap Package
6-9

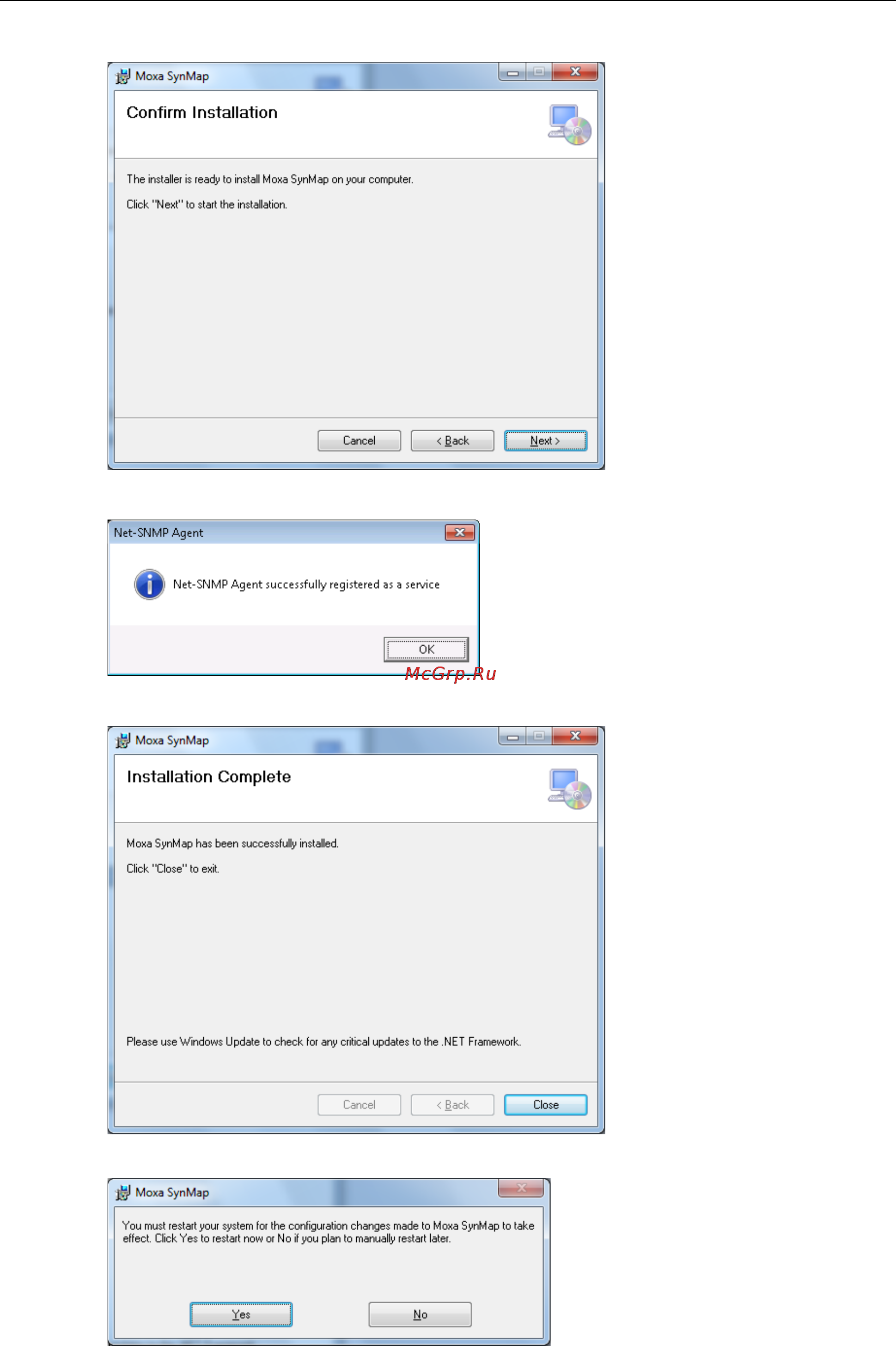

4. Click Next to continue.
5. Click OK to continue.
6. When the installation process is complete, click Close.
7. When prompted, click Yes to restart the V2416A to use the SNMP functions.
