V2416A W7E Series Moxa Diagnostic Package
5-5

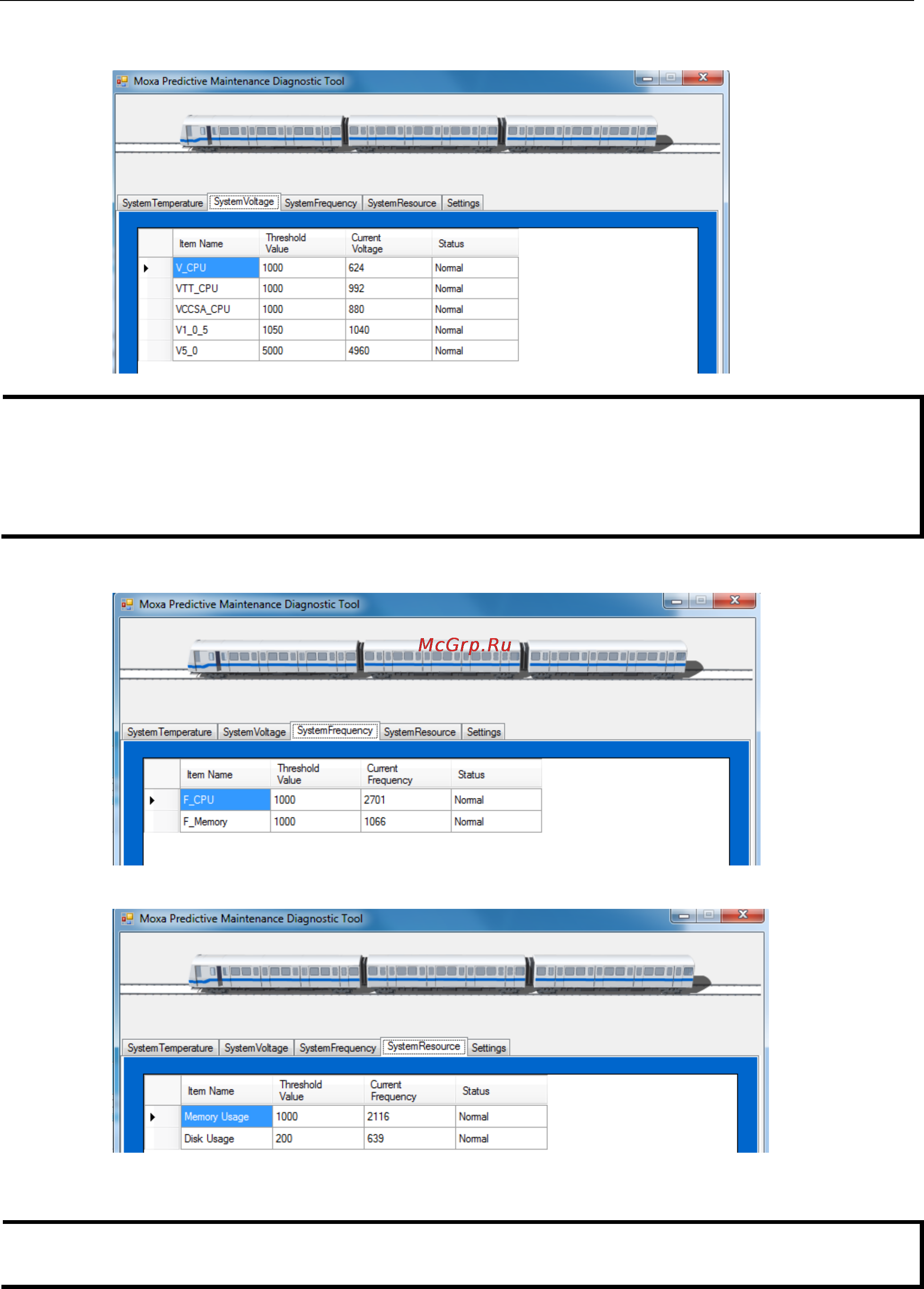

5. Click the System Voltage tab to view the current system voltages (in V).
NOTE
V_CPU = Voltage for processor core
VTT_CPU = Voltage for L3 shared cache, memory controller, and processor I/O power rail (Uncore)
VCCSA_CPU =
Voltage for CPU System Agent
V1_0_5 = (VCCIO) = Voltage for processor uncore
V5_0 = Voltage for other chips
6. Click the System Frequency tab to view the current system frequency.
7. Click the System Resource tab to view the current resource usage.
8. Click the Settings tab to set the polling interval and log options.
NOTE
If the folder you specify in the
Log Path
field does not exist, the system automatically creates the folder when
new logs are recorded.
