V2416A W7E Series Examples
7-6

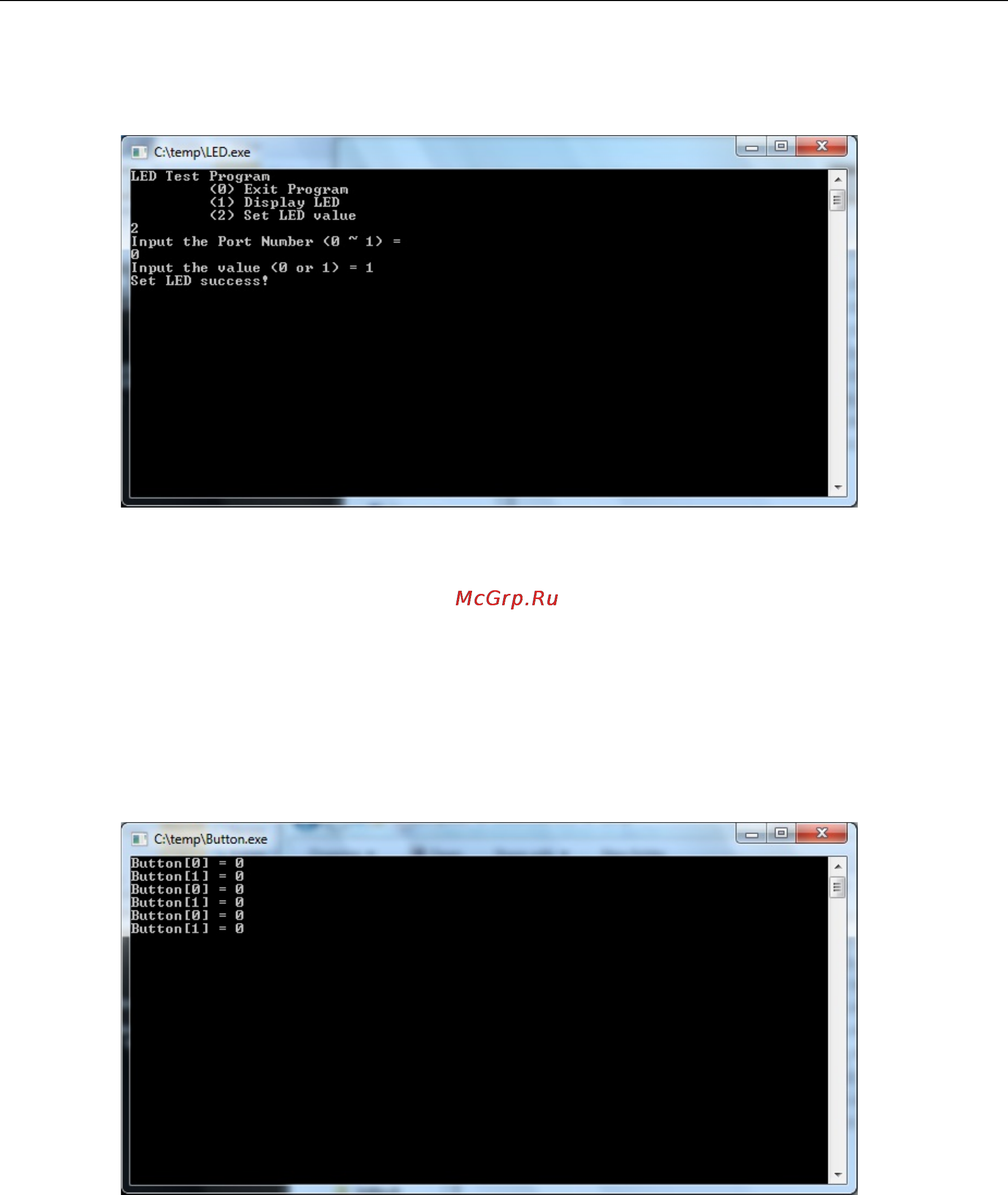

4. Type 2 and follow the on-screen instruction to set the LED value.
When you set the LED value to 0, the LEDs turn off.
When you set the LED value to 1, the LEDs turn on.
Testing Buttons
This section shows you how to use the test utility to display and change button values.
1. Copy the following files from the product software DVD.
• mxgpio.dll: \examples\V2416A_W7E_V1.0_example\lib\mxdgio\x86\
• mxGeneralIo.dll: \examples\V2416A_W7E_V1.0_example\lib\mxgpio\x86\
• Button.exe: \ examples\V2416A_W7E_V1.0_example\Release
2. Execute Button.exe. The program will start to poll the button status information.
