TC-6110 / Windows 7 Installing Moxa Software
4-20

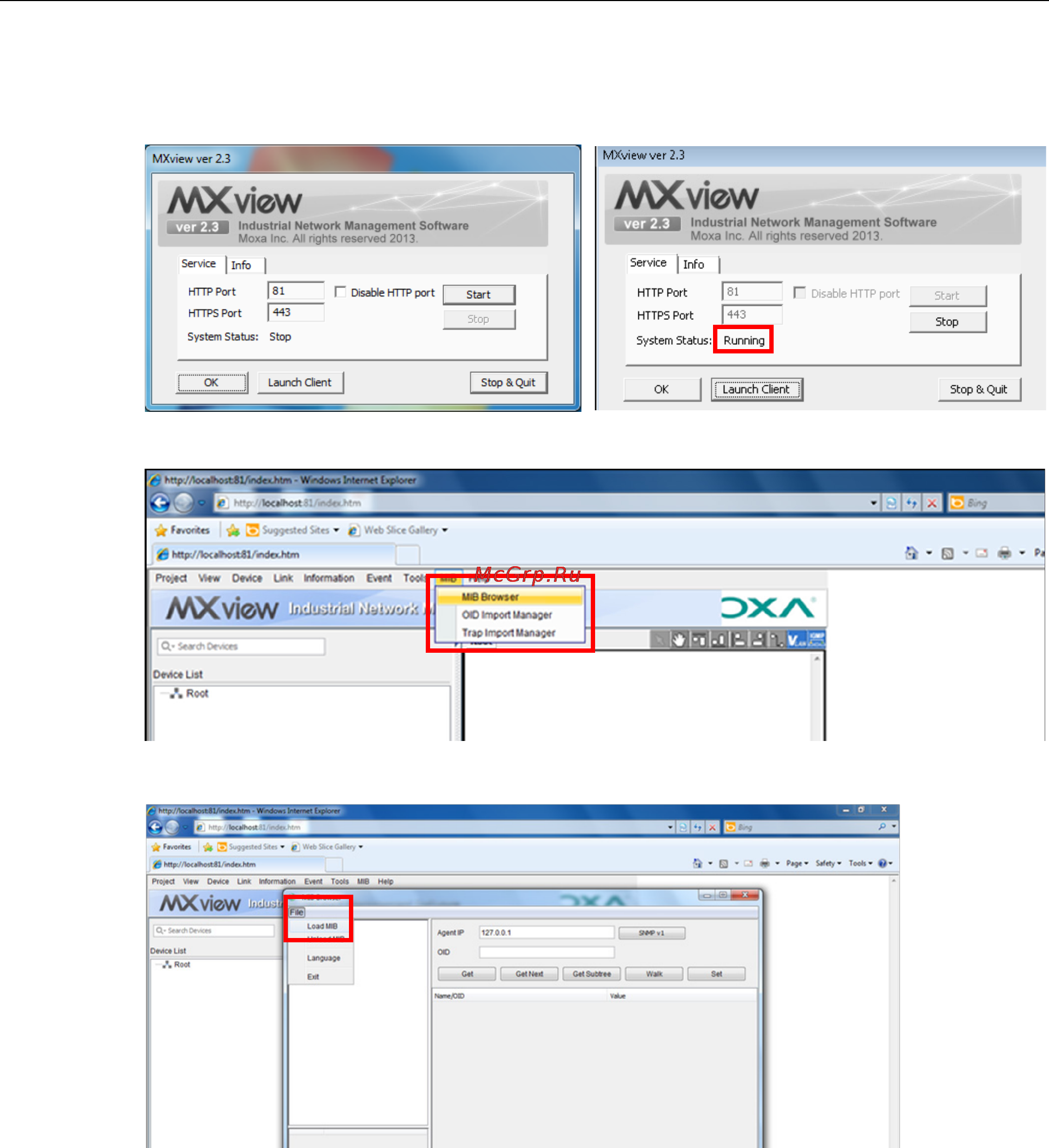

2. Click Start, wait for the System Status indicator to show Running, and then select Launch Client. When
the MXview Setup Wizard appears, click Cancel to skip the setup process and directly open the MXview
interface.
3. Select MIB-->MIB Browser.
4. After the MIB browser has opened, select File from the browser’s upper left corner, and then Load MIB.
(Instructions continue on next page)
