TC-6110 Series Hardware Hardware Installation

2-14

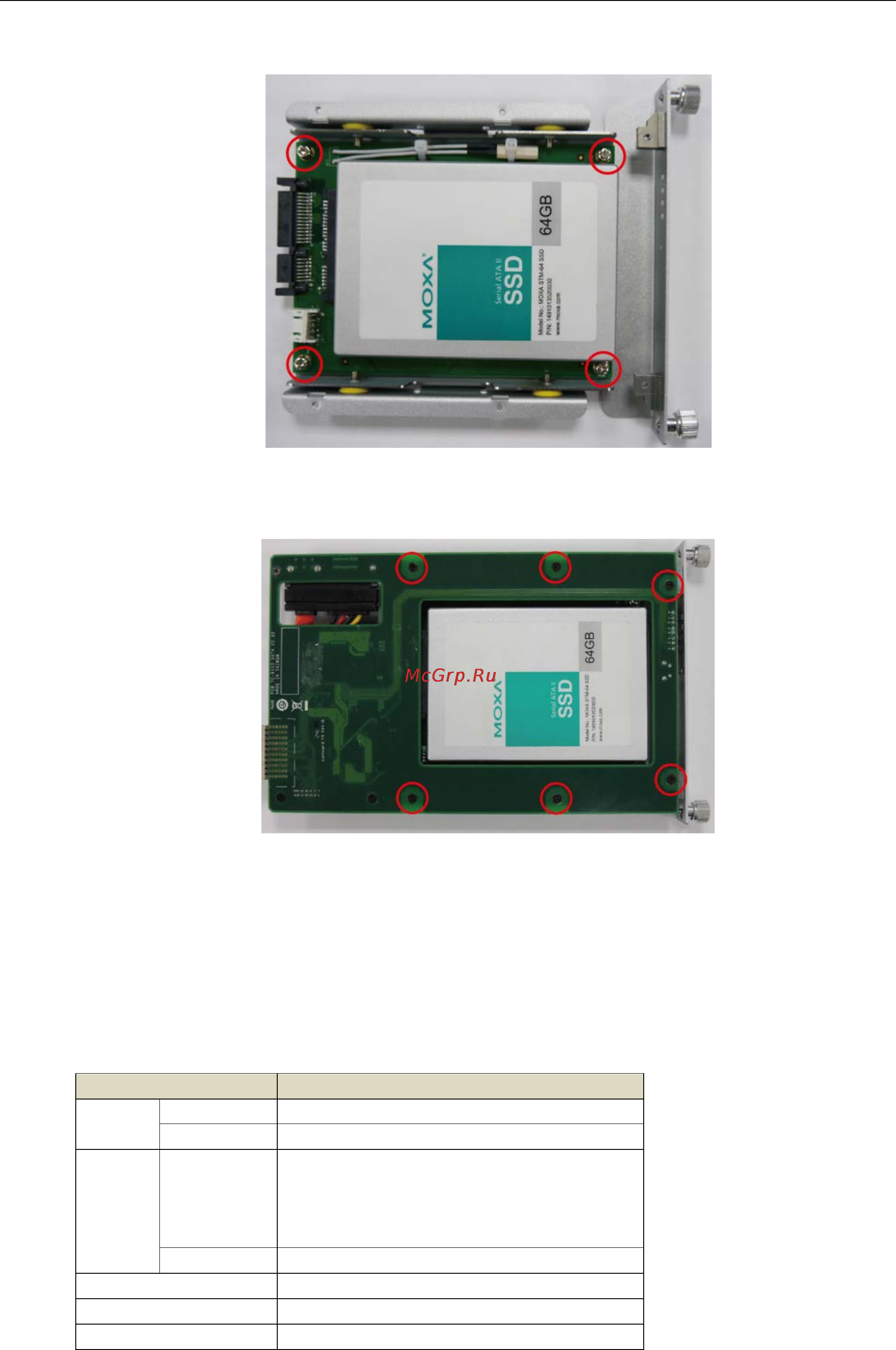

Step 7: Fasten four screws on the front.

Step 8: Connect the power cable and SSD/HDD cable with the main board. Reconnect the data and power

interfaces, then complete the installation by fastening the drive tray to the main PCB using the six screws.

Step 9: When finished, insert the storage tray back into the TC-6110 and tighten the external thumbscrews.

Please note that on each removable drive module there is a hot-swap button and four LED indicators. To hot

swap storage drives users will need to first install the Moxa hot swap software package, as described in the

TC-6110 software manual. Once installed, to hot swap a drive users must use a sharp object to push the hot

swap button (X1, on the front panel map) and wait until the L1 LED indicator goes dark, indicating the drive has

unmounted and is ready for extraction. The L3 and L4 LEDs are programmable, to be defined by users. Refer

to the software manual for more details about the Moxa hot swap software package and programming the LEDs.

The following table describes the functions associated with each LED and button.

LED Indicator/Button Function

On HDD is accessing data

Off No activity

Blinking

Heater is on in specific environments. Refer to

the following conditions:

• Below 55°C when power is available.

• Below 15°C when system is on.

Off Heater is off

L3 Defined by admin

L4 Defined by admin

hot-swap button, for unmounting drives
