TC-6110 Series Hardware Hardware Installation
2-15
Replacing the Battery
TC-6110 computers come with an internal battery that provides power for the built-in RTC. To replace the
battery, follow these steps.

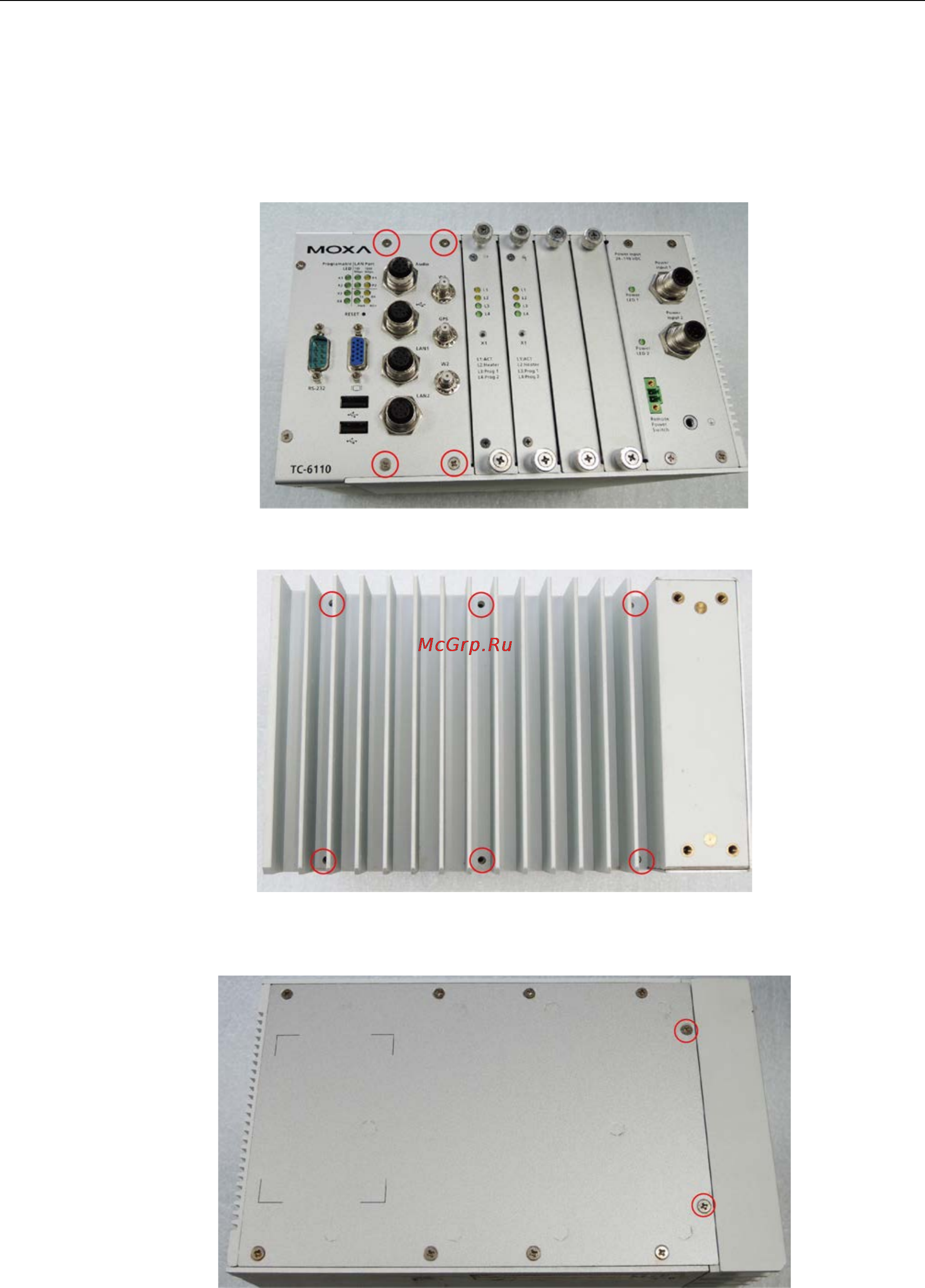

Step 1: Remove the four screws on the front panel of the computer.
Step 2: Remove the six screws from between the computer’s longest heat-sink fins.
Step 3: Turn to the computer backside-front, and remove the two screws fastening the large heat sink to the
rest of the computer (indicated below). It is not necessary to remove the other screws.
