An error light that is turned on only indicates that this error happened in the past. It

does not mean that the error still exists. To check if the error still is present, click on

Clear all errors. If the light is still on afterwards, the error is still there. If more than

one error occurs within one of the four groups, only the error with the highest

priority (the most important one = the error that is listed highest) will be displayed

in this group.

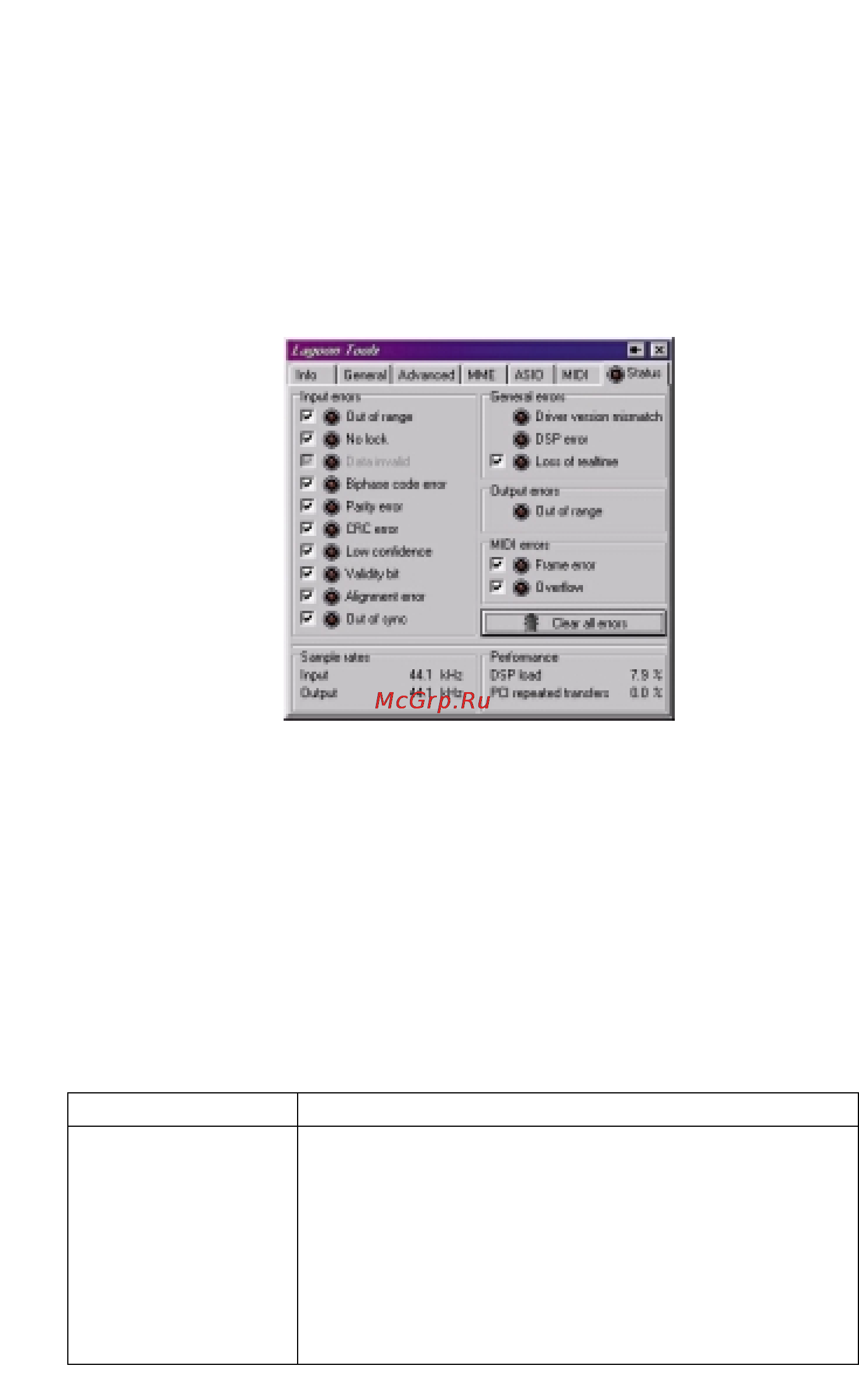

At the bottom of the page the detected

Input sample rate, the current Output sample

rate, the DSP load and a percentage value for PCI-repeated transfers are displayed.

All of these values are permanently measured by the DSP on the LAGOON card.

Hint: You should only start recording or playback when all error lights are turned

off. This way you will be informed about every error which occurs during record or

playback. Remember: Input errors are only relevant if you are using the LAGOON

card for recording.

Input Errors

Input errors are related to the optical input of the LAGOON card.

Depending on your settings for the optical input (ADAT or S/PDIF) some

of the errors are listed in grey color. This means that these errors may not

appear with the actual input configuration. Input errors are only relevant if

you are using the LAGOON card for recording.

Out of range

1. You configured the input as

S/PDIF and the sample

rate detected by the LAGOON card is either below

32 kHz or above 96 kHz.

2. You configured the input as

ADAT and the detected

input sample rate is below 39 kHz or above 51 kHz.

3. There is no input signal (check cabling).

4. You configured

ADAT, but the signal is S/PDIF.

5. You configured S/PDIF, but the signal is ADAT.

Error Possible Reasons and Remarks
