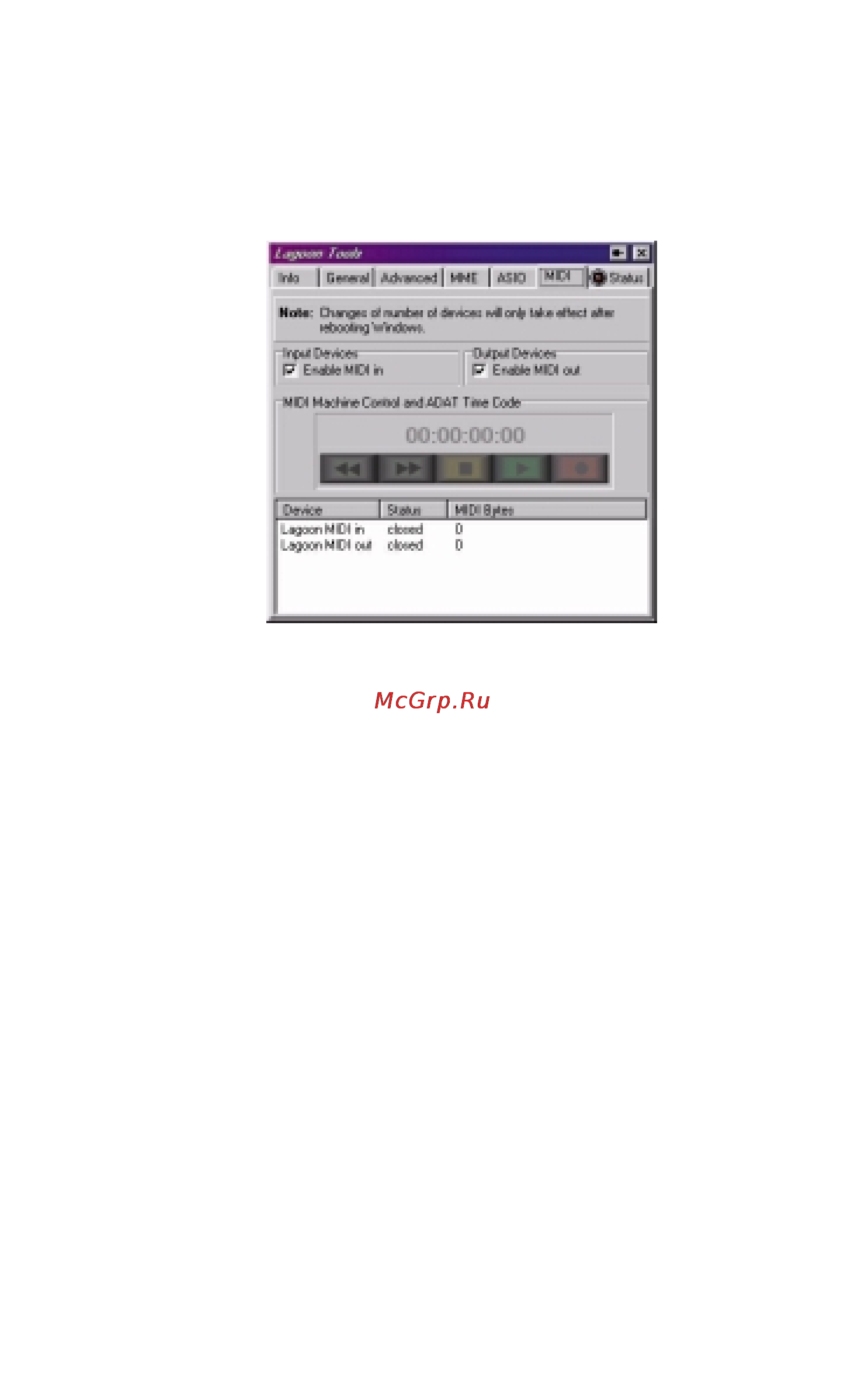

MIDI Page

In the MIDI page you can activate or deactivate the MIDI input and MIDI output

devices separately by using the two Enable checkboxes. Remember that changes

will only take effect after rebooting Windows.

There are three states a MIDI device may enter:

Closed, Paused and Playing. If a

MIDI device is not in use it is Closed. Paused MIDI devices are not actually playing.

Playing indicates that a MIDI device is in use by an application. In that case MIDI

Bytes counts up with every byte transferred by the driver.

To obtain

MIDI Machine Control and ADAT Time Code information, connect an

ADAT recorder with an ADAT Sync cable to the LAGOON and choose ADAT Sync

In (General page). The transport field and the time display then always will show the

current status of your ADAT recorder. Assuming Input device is enabled, Time Code

synchronization is possible now. Since ADAT recorders do not accept MIDI data

coming from an application, the

Output device will be ignored in this mode.

Hint: For proper MIDI timing always make sure the LAGOON is running at a valid

sample rate (Output error light in the Status page should be turned off).

Status Page

The Status page will give you information about the actual state of the LAGOON

card. The upper part of this page contains 4 groups of possible error messages: Input

Errors, Output Error, MIDI Errors and General Errors. By checking the boxes on

the left side of the error light you can determine if the corresponding error will be

evaluated or if it will be ignored. If you check a box and the corresponding error

occurs, the red error light will turn on. If any of the error lights on this page is turned

on, the light on top of the

Status page and the LAGOON icon in the Windows taskbar

will start blinking. This way you can see if something is wrong with your LAGOON

without always having the Status page on top of your desktop.
