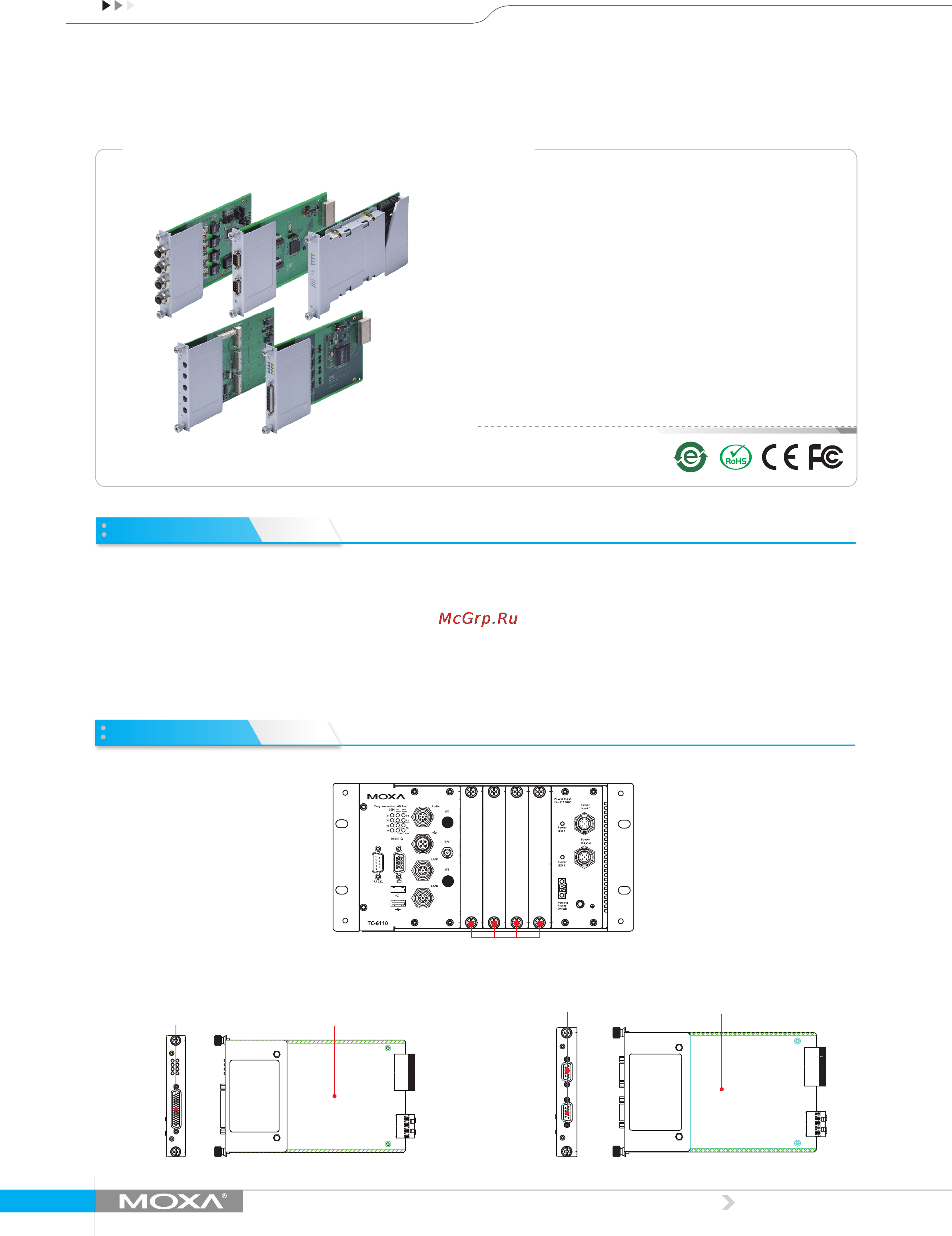

TC-6000 Series Expansion Modules

Introduction

Appearance

TC-6000 series expansion modules provide peripheral interfaces for

the TC-6000 series line of railway computers.

These modules include a 4-port (without PoE) gigabit or megabit

Ethernet switch module with M12 connectors, a mini PCIe card carrier

module with four sockets, a serial module supporting four software-

selectable RS-232/422/485 interfaces over a single DB44-F connector

(cable adapter), and an optically isolated CAN module with two ports.

The modules let system integrators and administrators easily add

additional Ethernet ports and/or bandwidth, as well as serial, PCIe, and

CAN interfaces to the TC-6000 series of train computers.

All of the TC-6000 modules are compliant with the essential sections

of the EN 50155 Class TX standard, maintaining the TC-6000 series

goal of offering a highly dependable computing platform suitable for a

wide variety of on-board railway applications.

Peripheral modules for the TC-6000 series

TC-CP02-DB-T

TC-SP04-DB44-T

TC-6110 Expansion Slot Location

› TC-SP04-DB44-T: 4-port software-selectable RS- 232/422/485

over DB44-F serial module

› TC-CP02-DB-T: 2-port optically isolated CAN module

› TC-DK10-T/TC-DK20-T: 4-socket mini PCIe card carrier module

› TC-SW04-M12-4P-T: 4-port megabit Ethernet switch port module

with M12 connector

› TC-SW04-M12-8P-T: 4-port gigabit Ethernet switch port module

with M12 connector

Expansion Modules

(Slot 1 / Slot 2 / Slot 3 / Slot 4)

1 DB44-F Serial

Interface

TC-SP04-DB44-T Module Board

2 CAN Ports TC-CP02-DB-T Module Board
