TC-DK10-T/TC-DK20-T mini PCIe Carrier Module

Model TC-DK10-T TC-DK20-T

Interface Socket 1 Socket 2 Socket 3 Socket 4 Socket 1 Socket 2 Socket 3 Socket 4

PCIe V1.0 (one lane)



– – –

   

USB .20

       

TC-DK10-T/TC-DK20-T

TC-SW04-M12-4P-T/TC-SW04-M12-8P-T

Front

Rear

TC-SP04-DB44-T Serial Module

TC-CP02-DB-T CAN Module

CAN Interface

Interface: 2 optically isolated CAN 2.0 A/B ports

Signal: CAN_H, CAN_L

Isolation: 2 kV

Speed: 1 Mbps

Connector Type: DB9 male

Mini PCIe Card

Interface: 4 sockets, total

• Socket 1 on both TC-DK10-T and TC-DK20-T: USB 2.0 / PCIe V1.0

• Sockets 2, 3, and 4 on the TC-DK10-T: USB 2.0

• Sockets 2, 3, and 4 on the TC-DK20-T: USB 2.0 / PCIe V1.0

SIM Card Socket: 4 sockets reserved for cellular applications

Wireless Antenna Hole: 5 reserved for QMA antenna connectors

Serial Port Interface

Serial Standards:

RS-232/422/485, software-selectable

Connector Type:

1 DB44 connector serving all 4 interfaces; special cable required

Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction

control) for RS-485

Physical Characteristics

Dimensions: 186 x 118 x 20 mm (7.32 x 4.65 x 0.79 in)

Weight: 227 g (0.50 lb)

Environmental Limits

Operating Temperature: -40 to 70°C (-40 to 158°F) (EN 50155 Class

TX)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Physical Characteristics

Dimensions: 186 x 118 x 20 mm (7.32 x 4.65 x 0.79 in)

Weight: 220 g (0.49 lb)

Environmental Limits

Operating Temperature: -40 to 70°C (-40 to 158°F) (EN 50155 Class

TX)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Baudrate: 50 bps to 921.6 Kbps (non-standard baudrates supported;

see user’s manual for details)

Physical Characteristics

Dimensions: 186 x 118 x 20 mm (7.32 x 4.65 x 0.79 in)

Weight: 234 g (0.52 lb)

Environmental Limits

Operating Temperature: -40 to 70°C (-40 to 158°F) (EN 50155 Class

TX)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

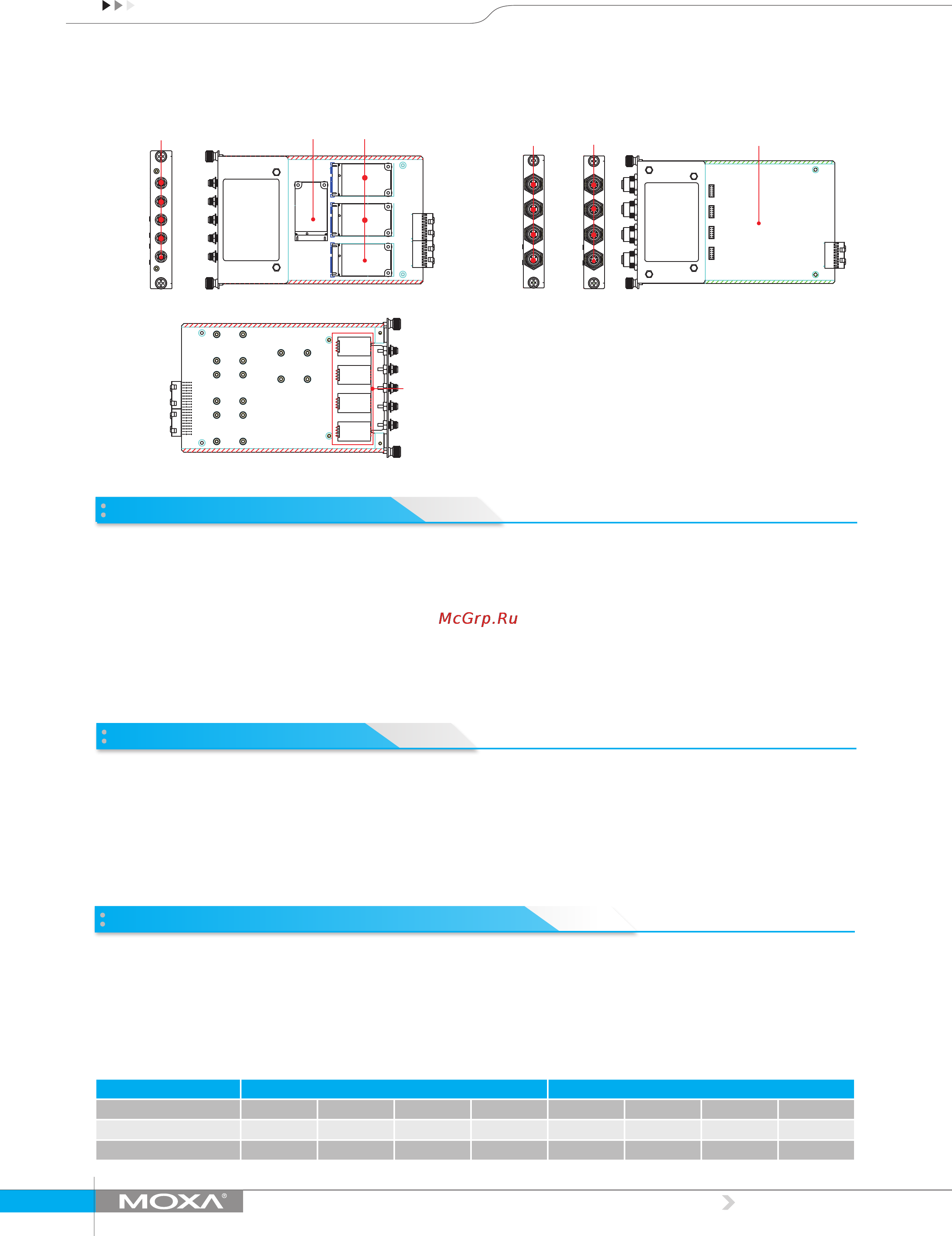

4 Mini PCIe Card Sockets

5 Holes for QMA

Antenna Connectors

4 Megabit/Gigabit Ethernet

M12 Ports

TC-SW04-4P-M12-T/

TC-SW04-8P-M12-T

Module Board

4-pin

Connector

8-pin

Connector

SIM Card

Socket x 4
