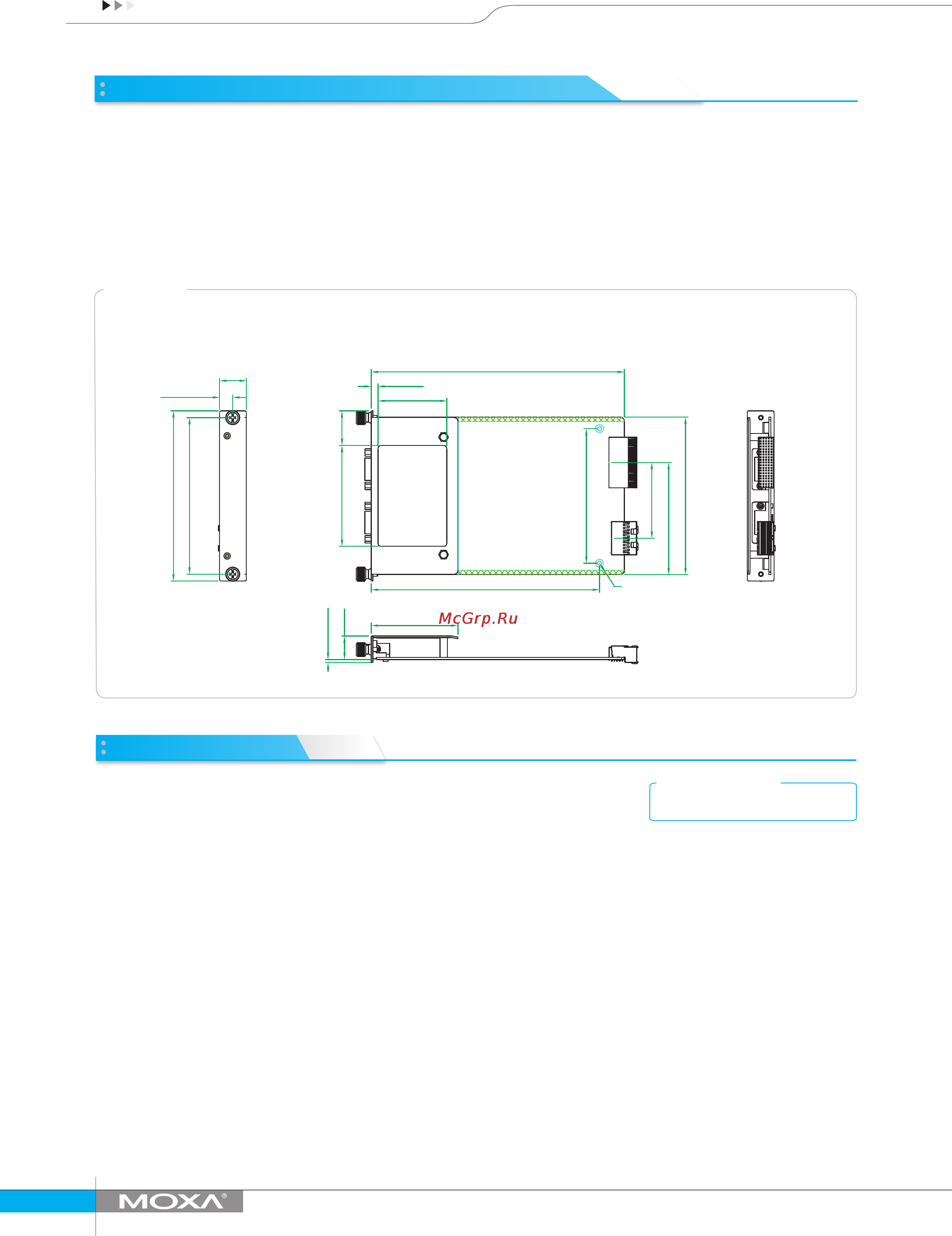

Dimensions

Unit: mm (inch)

127.4 (5.02)

117.2 (4.61)

9.82 (0.39)

20.02 (0.79)

189.5 (7.46)

118 (4.65)

83.99 (3.31)

17.7 (0.7)

2.32 (0.09)

170.9 (6.73) aming

100.8 (3.97)

64.92 (2.56) aming

2-Ø3.2

25.95 (1.02)75.5 (2.97)

51.5(2.03)

5 (0.2)

56.69 (2.23)

TC-SW04-M12-4P-T/TC-SW04-M12-8P-T Switch Module

Ordering Information

Available Models

TC-SP04-DB44-T: 4 RS-232/422/485 serial interfaces over a single DB44 connector; cable sold separately,

-40 to 70°C operating temperature (EN 50155 Class TX)

TC-CP02-DB-T: 2 optically isolated CAN interfaces with DB9 connectors, -40 to 70°C operating temperature

(EN 50155 Class TX)

TC-DK10-T: 4 PCIe mini card slots with PCIe and USB interfaces on slot 1 and USB interfaces on Slot 2, 3 and 4, 4 SIM card sockets, -40 to 70°C

operating temperature (EN 50155 Class TX)

TC-DK20-T: 4 PCIe mini card slots with PCIe and USB interfaces, 4 SIM card sockets, -40 to 70°C operating temperature (EN 50155 Class TX)

TC-SW04-M12-4P-T: 4-port megabit Ethernet switch with M12 D-coded connectors, -40 to 70°C operating temperature (EN 50155 Class TX)

TC-SW04-M12-8P-T: 4-port gigabit Ethernet switch with M12 A-coded connectors, -40 to 70°C operating temperature (EN 50155 Class TX)

Package Checklist

• TC-6000 series expansion module

Ethernet Interface

Standard:

4 Ethernet M12 switch ports: auto-sensing 10/100 Mbps (TC-SW04-

M12-4P-T) or 10/100/1000 Mbps (TC-SW04-M12-8P-T)

Protection: 1.5 kV magnetic isolation protection

Connector Type: 4-pin M12 D-coded/8-pin M12 A-coded

Physical Characteristics

Dimensions: 186 x 118 x 20 mm (7.32 x 4.65 x 0.79 in)

Weight: 278 g (0.62 lb)

Environmental Limits

Operating Temperature: -40 to 70°C (-40 to 158°F) (EN 50155 Class

TX)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)
