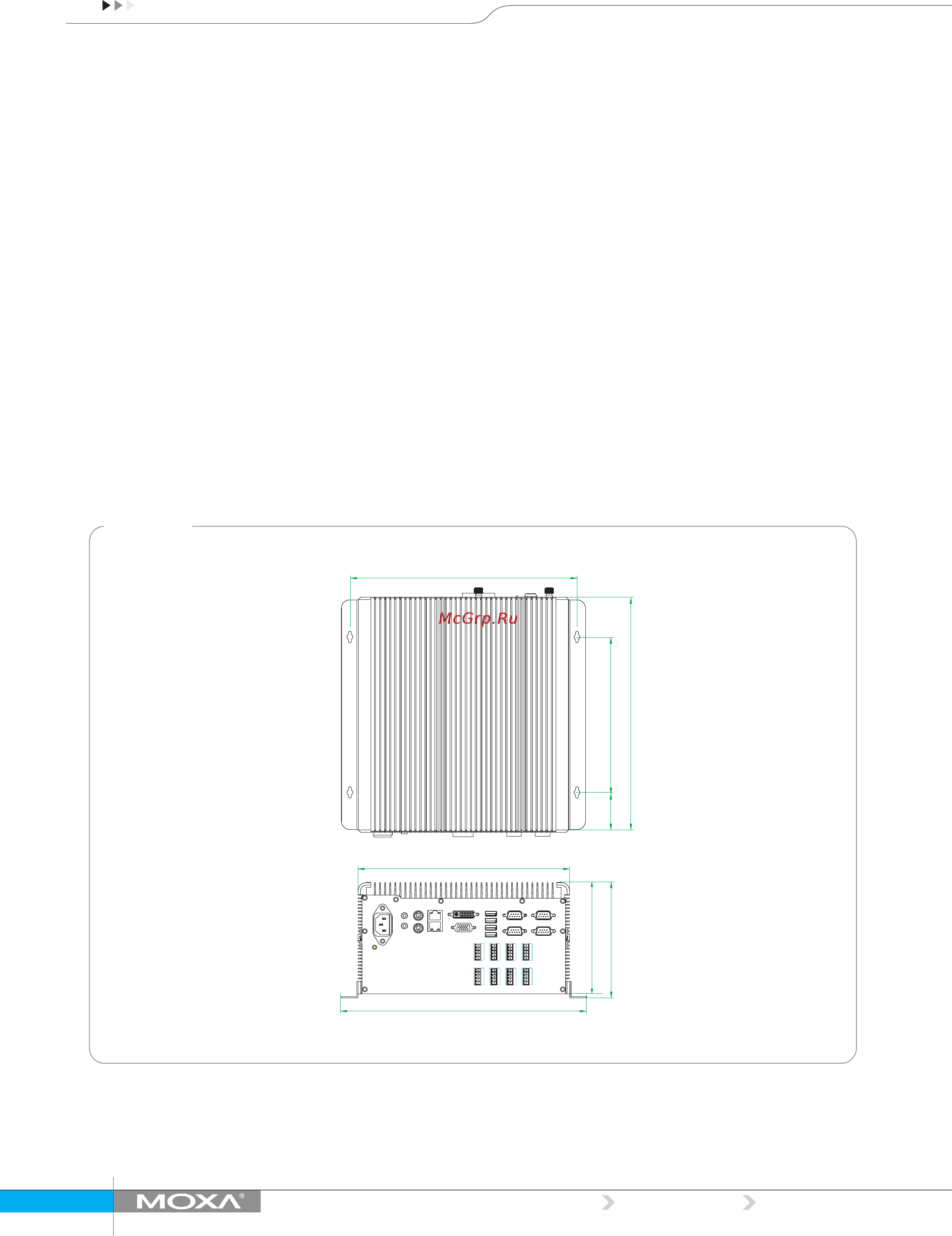

Dimensions
Unit: mm (inch)
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC
®
(automatic data direction
control) for RS-485
Baudrate: 50 bps to 230.4 Kbps
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
LEDs
System: Storage, Power
LAN: 100M/Link x 2, 1000M/Link x 2 (on connector)
Physical Characteristics
Housing: Aluminum, sheet metal
Weight: 6.85 kg
Dimensions:
• Without ears: 287 x 250 x 135 mm (11.30 x 9.84 x 5.31 in)
• With ears: 287 x 290 x 140 mm (11.30 x 11.42 x 5.51 in)
Mounting: Wall
Environmental Limits
Operating Temperature: -15 to 55°C (5 to 131°F)
Storage Temperature: -20 to 60°C (-4 to 131°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-Vibration:
• 0.7 g @ DNV 2.4 (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr
per axis
• 1 G
rms
@ DNV 2.4, random wave, 3-100 Hz, 2.5 hr per axis
• 2.1 g @ DNV 2.4 (Class C), sine wave, 2-50 Hz, 1 Oct./min., 1.5 hr
per axis
Power Requirements
Input Voltage:
• DC Model: 24 VDC (with tolerance from 18 to 30 VDC, 2-pin terminal
block)
• AC Model: 100 to 240 VAC
Power Consumption: Less than 100 W, 2.5 A @ 24 VDC
Standards and Certifications
Safety: UL 60950-1, DNV 2.4, IEC 60945 (4th), IACS E10, CCC
(GB4943, GB9254, GB17625.1)
EMC: EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4,
FCC Part 15 Subpart B Class B
Marine: IEC 60945 4th, IACS E10
Green Product: RoHS, cRoHS, WEEE
Reliability
MTBF (mean time between failures): 220,490 hrs
Warranty
Warranty Period: 3 years
Details: See www.moxa.com/warranty
