P/N: 1802071300011
MC-7130-MP Series
Quick Installation Guide
Second Edition, November 2012
Overview
Standard MOXA MC-7130-MP marine computers are powered by
the third generation Intel® Core™ i3 3120ME processor. With
eight NMEA 0183 ports, four DB9 serial ports, four Gigabit Ethernet
ports, six USB 2.0 ports, two SuperSpeed USB 3.0 ports, and eight
digital I/O terminal blocks, this computer offers a full range of I/O
connectivity in a powerful, compact package. In addition, it also
provides two PCI slots alongside a PCIe Gen 3 slot (x16), allowing
even more versatile peripheral expansion opportunities for
industrial applications.
Package Checklist
Before installing the MC-7130-MP, verify that the package contains
the following items:
• 1 MC-7130-MP marine computer
• 2 removable storage protection keys
• 8 screws for SSD mounts
• Wall mounting kit, with 6 screws
• 1 terminal block for DC power input
• 2 6-pin digital input terminal blocks
• 2 8-pin digital output terminal blocks
• 8 terminal blocks for NMEA 0183 ports
• Documentation and driver CD
• Quick Installation Guide (printed)
• Warranty card
NOTE: Please notify your sales representative if any of the
above items are missing or damaged.

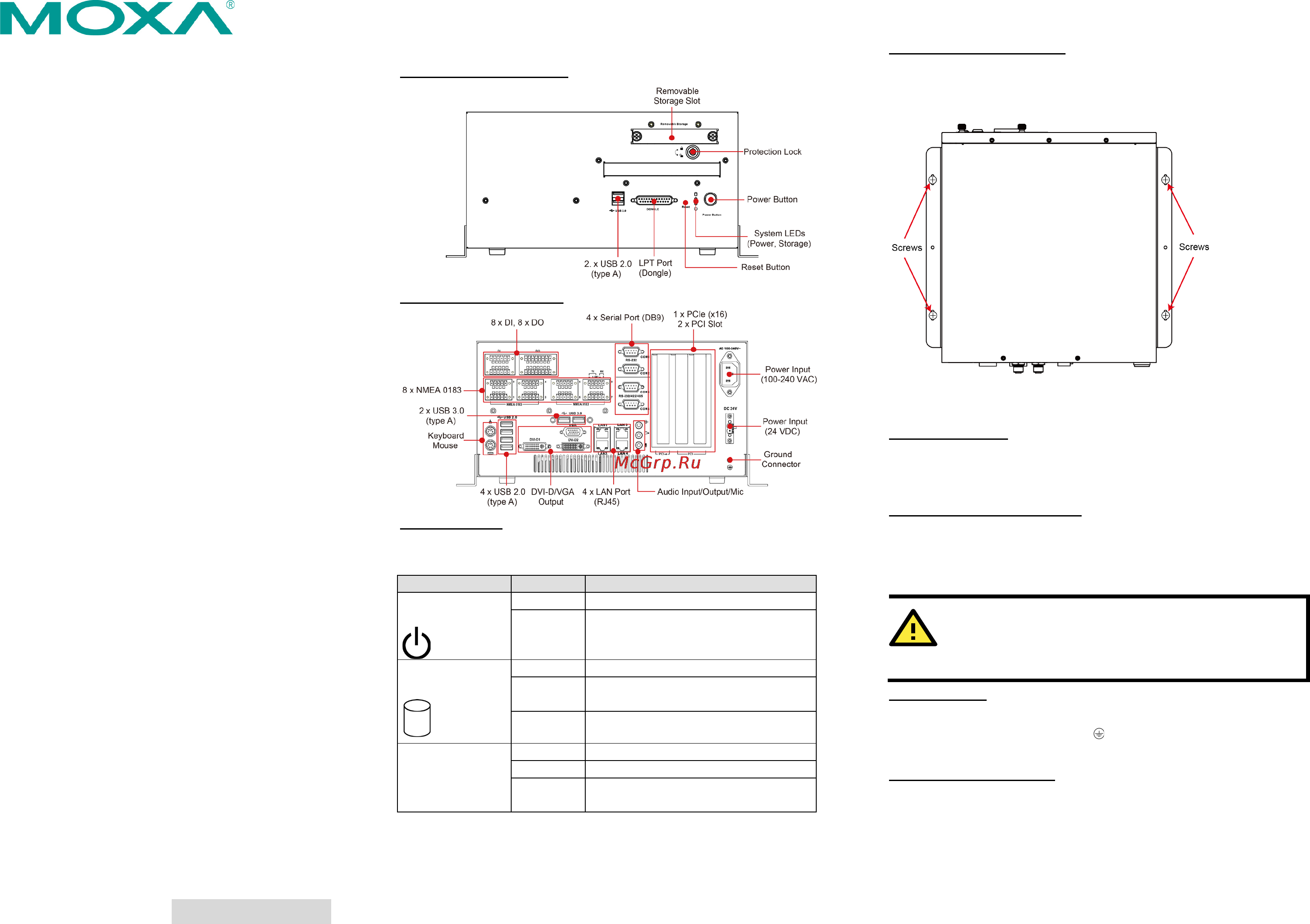

MC-7130-MP Panel Layout
The following figures show the panel layout of the MC-7130-MP.
MC-7130-MP Front View
MC-7130-MP Rear View
LED Indicators
The following table describes the LED indicators of the
MC-7130-MP.
LED Name
LED Color
LED Function
Power
(on front panel)
Green
Power is on and functioning normally
Off
Power is off or there is an error
Storage
(on front panel)
Red (on)
Storage drive is functioning properly
Red
(blinking)
Drive is accessing or writing data
Off
No activity
LAN
(on connectors)
Green
100 Mbps Ethernet mode
Yellow
1000 Mbps (Gigabit) Ethernet mode
Off No activity or 10 Mbps Ethernet
mode
Installing the MC-7130-MP
Wall or Cabinet Mounting
The MC-7130-MP provides brackets for both wall and cabinet
mounts. Attach the brackets with the screws included on the sides
of the chassis.
Connector Description
Power Connector
The MC-7130-MP comes with a 100 to 240 VAC power input, and
has another 24 VDC terminal block power input. If power is
supplied properly, the Power LED will light up.
Grounding the MC-7130-MP
Proper grounding and wire routing help to limit the effects of noise
from electromagnetic interference (EMI). Run the ground
connection from the ground screw to the grounding surface prior to
connecting the power.
ATTENTION
This product is intended to be mounted to a well
-
grounded
mounting surface, such as a metal panel.
Earth Ground:
The MC-7130-MP has an earthing/grounding connector on the rear
panel. There is a ground symbol next to the connector. Connect
the EG wire to an appropriate grounded metal surface.
VGA and DVI-D Outputs
For connecting display monitors, the MC-7130-MP comes with a
female D-sub 15 pin (DA-15) VGA interface on the rear panel, and
has an additional pair of DVI-D interfaces on the rear panel.
