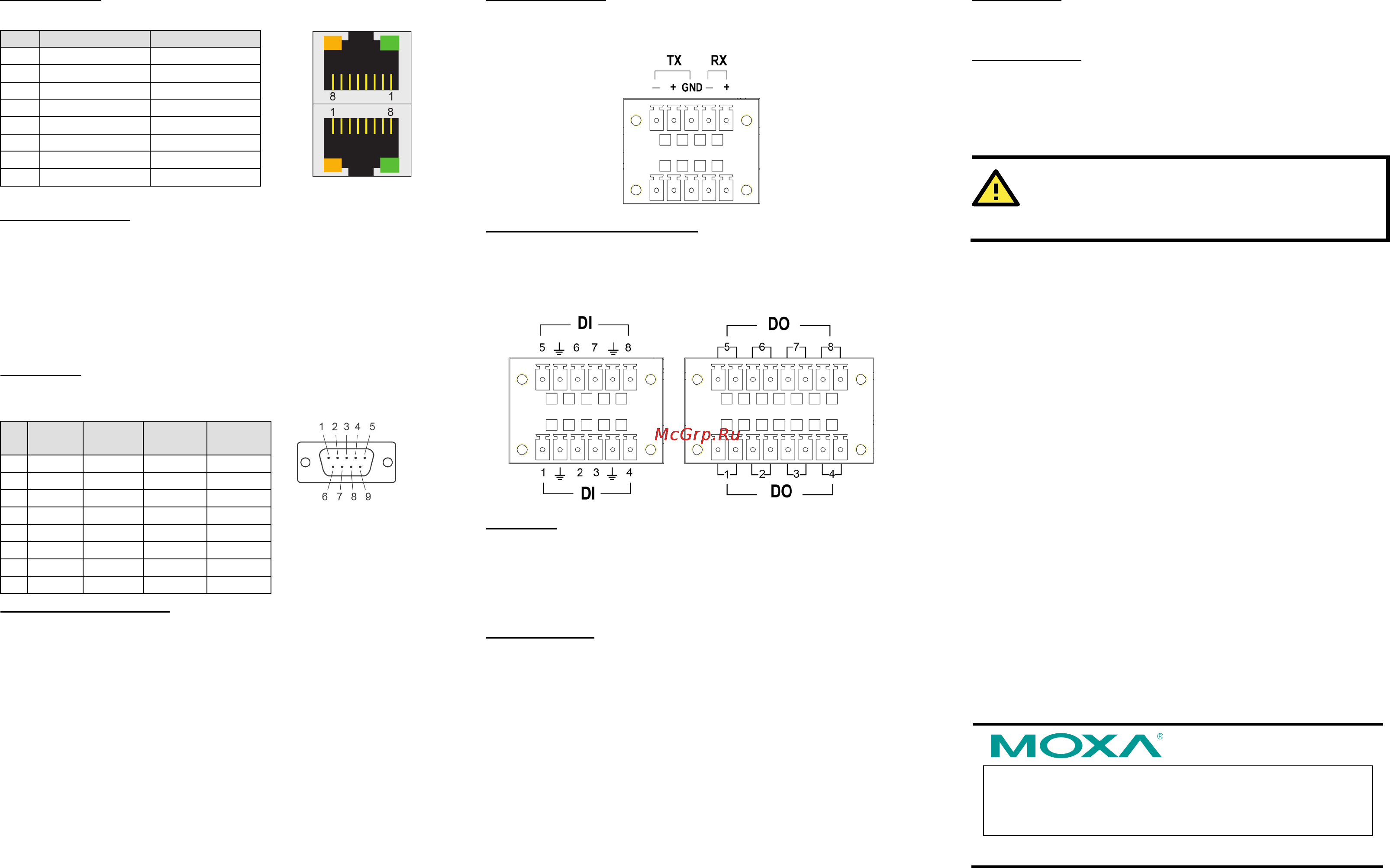

Ethernet Ports
The four 10/100/1000 Mbps Ethernet ports use RJ45 connectors.
Pin
10/100 Mbps
1000 Mbps
1
ETx+
TRD(0)+
2
ETx-
TRD(0)-
3
ERx+
TRD(1)+
4
–
TRD(2)+
5
–
TRD(2)-
6
ERx-
TRD(1)-
7
–
TRD(3)+
8
–
TRD(3)-
PCI and PCIe Slots
The MC-7130-MP comes with 2 universal PCI slots (3.3/5 V) that
can connect to various peripheral cards, such as radar or Profibus
cards. A third generation PCIe x16 slot is also available for
connecting an additional VGA graphics card (or other peripherals).
To insert a peripheral card, remove the screws and open the
chassis cover, then remove the covering plates and insert the
peripheral card into the slot.
Serial Ports
The serial ports use DB9 connectors. COM1 and COM2 support
RS-232, and COM3 and COM4 support RS-232/422/485.
Pin
RS-232
RS-422
RS-485
(4-wire)
RS-485
(2-wire)
1
DCD
TxDA(-)
TxDA(-)
–
2
RxD
TxDB(+)
TxDB(+)
–
3
TxD
RxDB(+)
RxDB(+)
DataB(+)
4
DTR
RxDA(-)
RxDA(-)
DataA(-)
5
GND
GND
GND
GND
6
DSR
–
–
–
7
RTS
–
–
–
8
CTS
–
–
–
Removable Storage Tray
The MC-7130-MP computer has a removable storage drive tray on
the front panel, and an internal storage drive expansion slot inside
the chassis. To provide better system safety, protection keys are
provided to lock the removable tray.
NMEA 0183 Ports
The MC-7130-MP comes with 8 NMEA 0183 ports on the rear panel.
See the following figure for the NMEA pin outs.
Digital Input/Output Channels
The MP-7130-MP comes with 8 digital input and 8 digital output
channels on the rear panel. These input/output channels can be
connected via the terminal blocks which have been included in the
package. See the following figure for the pin assignments.
USB Hosts
The MC-7130-MP has six USB 2.0 and two SuperSpeed USB 3.0
type A ports, respectively supported by EHCI and xHCI for full high
speed bandwidth. The USB ports support peripherals like
keyboards, mice, and other devices such as portable HDDs or
DVD-ROMs.
Audio Interface
The MC-7130-MP comes with an audio input, an audio output, and
a microphone input, allowing users to connect a speaker system,
an earphone, or a microphone.
Reset Button
Press the Reset Button on the front panel of the MC-7130-MP for
a hot system reboot.
Real Time Clock
The MC-7130-MP’s real time clock (RTC) is powered by a lithium
battery. We strongly recommend that you do not replace the
lithium battery without help from a qualified Moxa support
engineer. If you need to change the battery, contact the Moxa RMA
service team at http://www.moxa.com/rma/about_rma.aspx.
ATTENTION
There is a risk of explosion if the battery is replaced with an
incorrect type of battery.
Powering on the MC-7130-MP
To power on the MC-7130-MP, you may connect the Terminal
Block to Power Jack Converter to the MC-7130-MP’s DC
terminal block (located on the rear panel) and then connect the
power adaptor, or you may plug in the AC power cord. Press the
Power button to turn on the computer. It takes about 30 seconds
for the system to boot up. Once the system is ready, the Power
LED will light up.
