Marine Displays and Computers

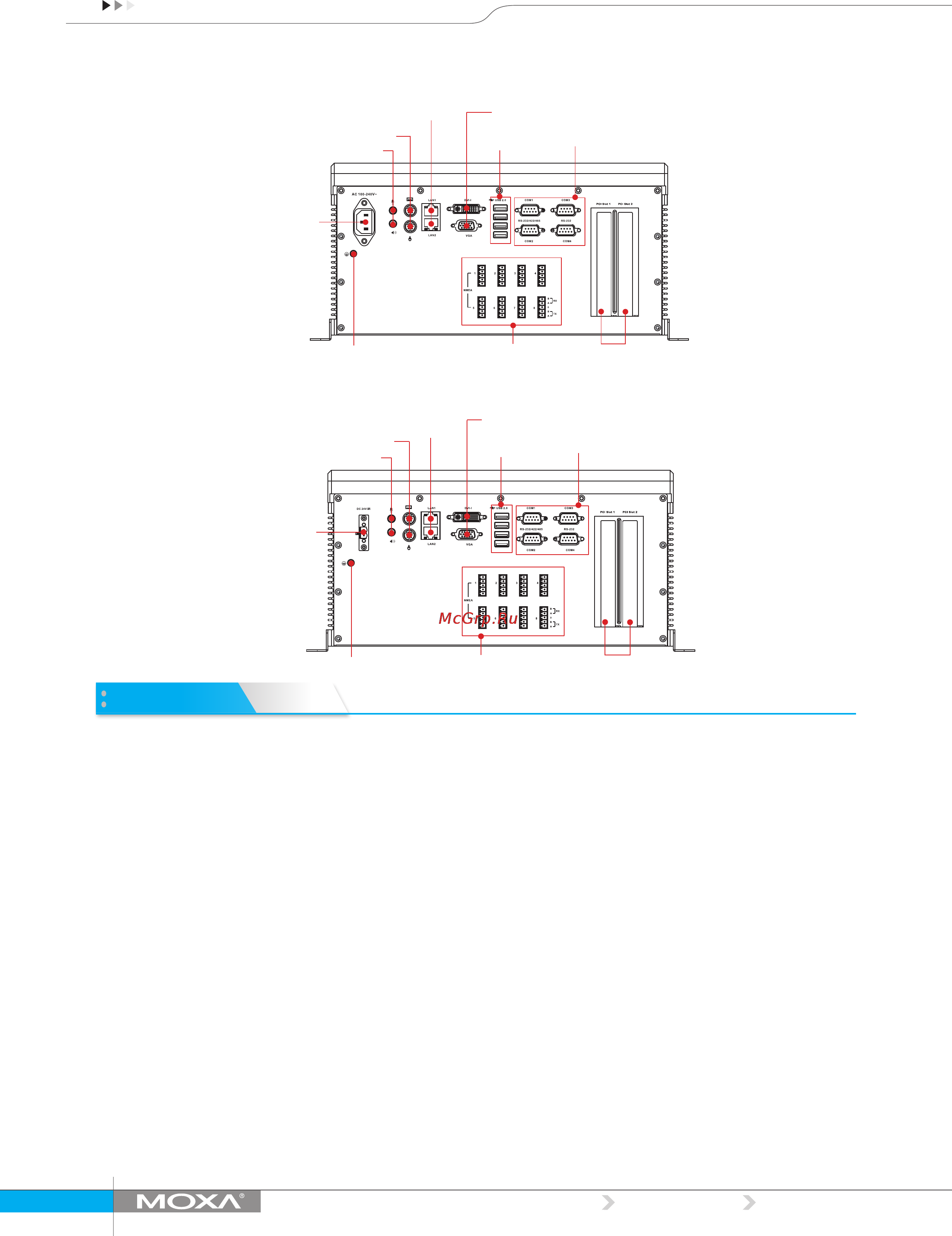

AC Model Rear View
DC Model Rear View
Computer
CPU: Intel
®
Core
™
i5-520E (BGA CPU package), dual core threaded 64
bit 2.4 GHz processor
OS: Windows 7, Windows XP SP3, Windows XP Embedded (must be
installed by the user)
System Chipset: Intel® QM57 Express Chipset
FSB: 1066
System Memory: 8 GB capacity, 2 GB pre-installed: 2 slots of 4 GB
DDR3-1066 204 pin SO-DIMM SDRAM
USB: USB 2.0 hosts x 6, Type A connectors
Storage
Storage Support:
• 1 internal SATA storage tray
• 1 removable SATA storage drive tray
Other Peripherals
KB/MS: 2 PS/2 interfaces supporting standard PS/2 keyboard and
mouse
Audio: line-in/out interface
PCI Slots: 2
Display
Graphics Controller: Onboard Intel® HD graphics
Display Interface:
• VGA Interface: 15-pin D-Sub connector (female), with resolution up
to 1920 x 1080
• DVI-I Interface: 29-pin DVI-I connector (female)
Ethernet Interface
LAN: 2 auto-sensing 10/100/1000 Mbps ports (RJ45)
Magnetic Isolation Protection: 1.5 KV built in
Serial Interface
Serial Standards:
• 2 RS-232/422/485 ports, software-selectable (DB9 male)
• 2 RS-232 ports (DB9)
• 8 NMEA ports (Phoenix 3.81 mm compatible connector)
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction
control) for RS-485
Baudrate: 50 bps to 230.4 Kbps
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
LEDs
System: Storage, Power
LAN: 100M/Link x 2, 1000M/Link x 2 (on connector)
Specifications
USB 2.0
Port x 4 (type A)
Power Input
(AC 100-240V)
Serial Port x 4 (DB9)
LAN Port x 2
(RJ45)
Keyboard
Mouse
DVI-I/VGA
Output
NMEA Port x 8
Audio Input/Output
Ground Connector PCI Slot x 2
USB 2.0
Port x 4 (type A)
Power Input
(DC 24V)
Serial Port x 4 (DB9)
LAN Port x 2
(RJ45)
Keyboard
Mouse
DVI-I/VGA
Output
NMEA Port x 8
Audio Input/Output
Ground Connector
PCI Slot x 2
