MPC-2150 Hardware Display Resolution
4-6
Adjusting Display Resolution

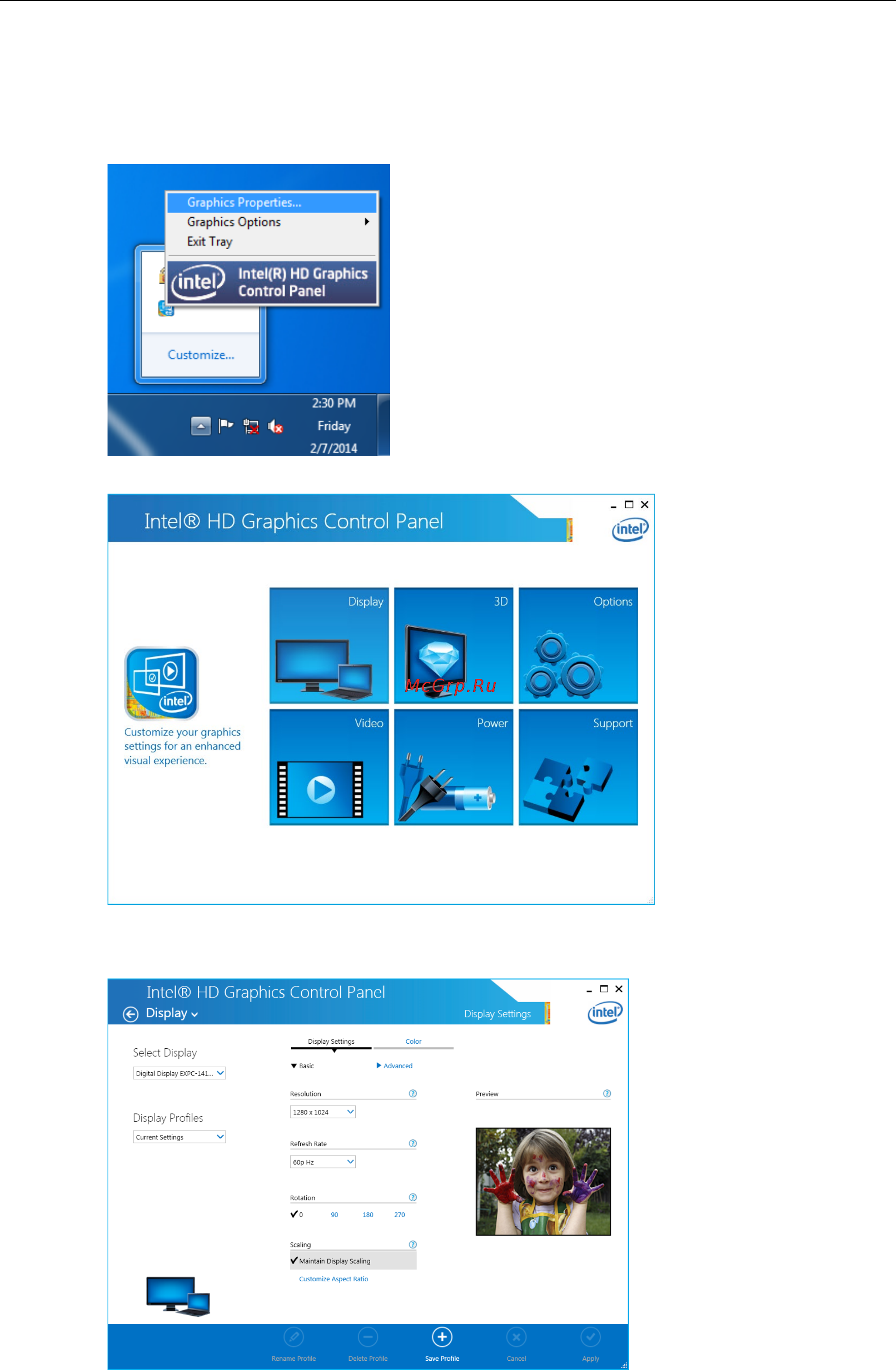

Follow these steps to adjust the display resolution.
1. Right-click the Intel HD Graphics Control Panel icon on the right down corner of the screen, and select
Graphics Properties.
2. Select Display.
3. You can now adjust the resolution, refresh rate, and the display rotation. Select Maintain Display Scaling,
to maximize the display so it fits the screen. Click Apply when finished.
