This example shows the Midiman DMAN PCI and Midiman WINMAN 4x4/S
(another Midiman product) entries in the Windows Device Manager device
list. The DMAN PCI is properly installed with no conflicts, as is the WINMAN
4x4/S.
If a device in this list is having a resource conflict with another device, or if
there are driver problems, a yellow exclamation point will generally appear on
top of the icon next to that device. There are several approaches to solving this
dilemma.
NOTE: Most sound card installation problems result from attempting to use
system resources (IRQ’s and Address locations) that are already in use by other
hardware components in the system.
Driver Resource Conflicts
By highlighting the item with the problem (yellow exclamation point show-
ing), then clicking the Properties button (or double-clicking the actual item),
you will open up a Properties page for that device. Selecting the Resources tab
from within the Properties dialog box will allow you to view resources, plus
view possible conflicts by highlighting each item (by clicking on it) one-by-one
and examining the “Conflicting resource list:” at the bottom of the box.

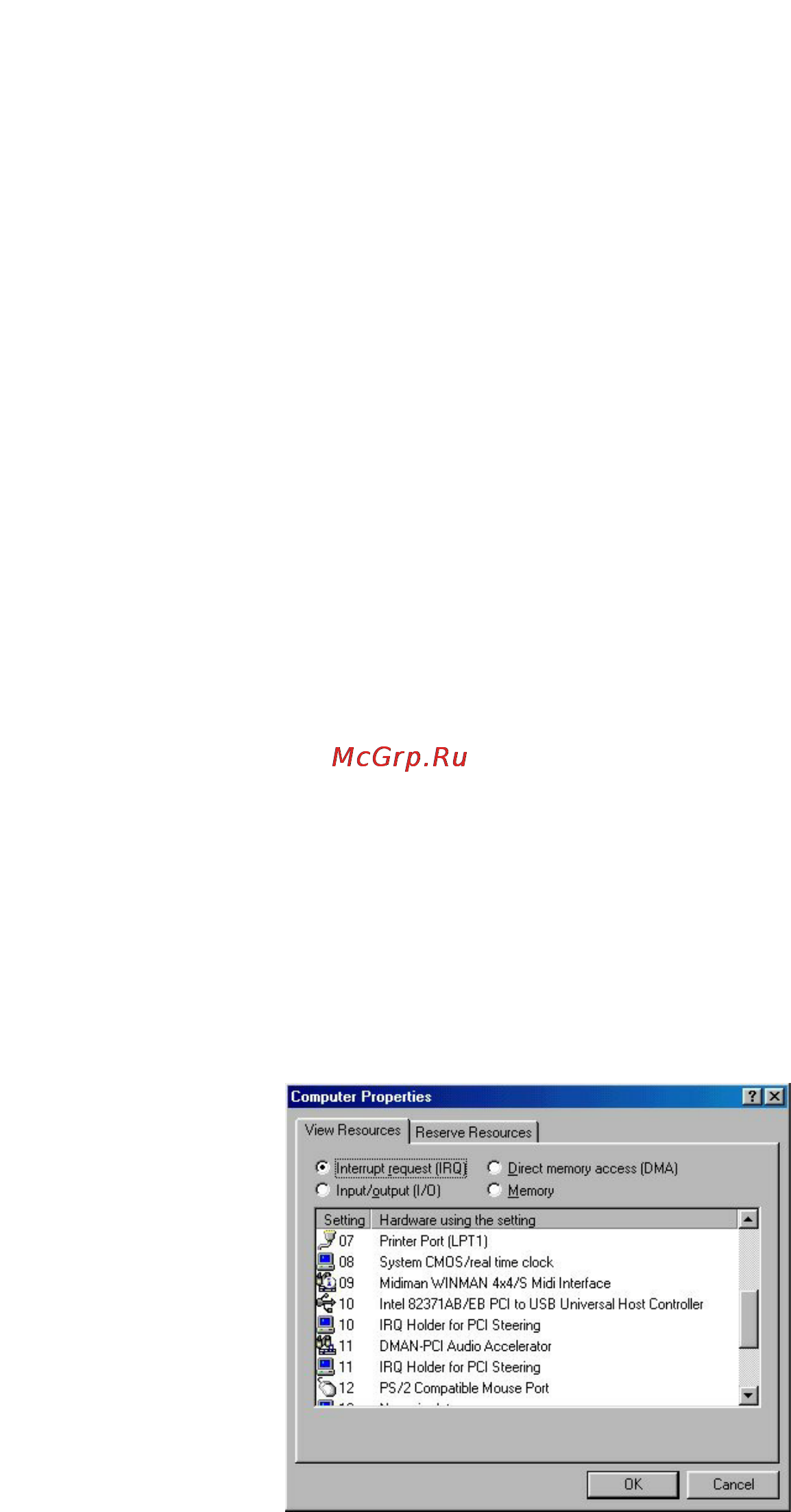

It is sometimes possible for a resource problem to not show up in the
Conflicting Resource List or as a yellow exclamation point in the Device
Manager. If you have any doubts about the configuration of your device (or
just to double-check), you can view all of the devices and their associated IRQs
by highlighting Computer at the top of the Device Manager list and clicking
the Properties button. This will give you a dialog box with IRQ numbers on
the left, and devices on the right.
15
