1. At the Windows Start menu select Programs | Accessories | Multimedia |
Volume Control.
2. Double-click your mouse on the little “speaker” icon on the Windows
taskbar. If this speaker icon is not present on your taskbar, you may enable
it by selecting Settings | Control Panel | Multimedia from the Windows Start
menu, checking “Show volume control on the taskbar” and clicking the
“OK” button.
Once open, you may view and adjust the Master (playback) mixer and the
Record mixer.

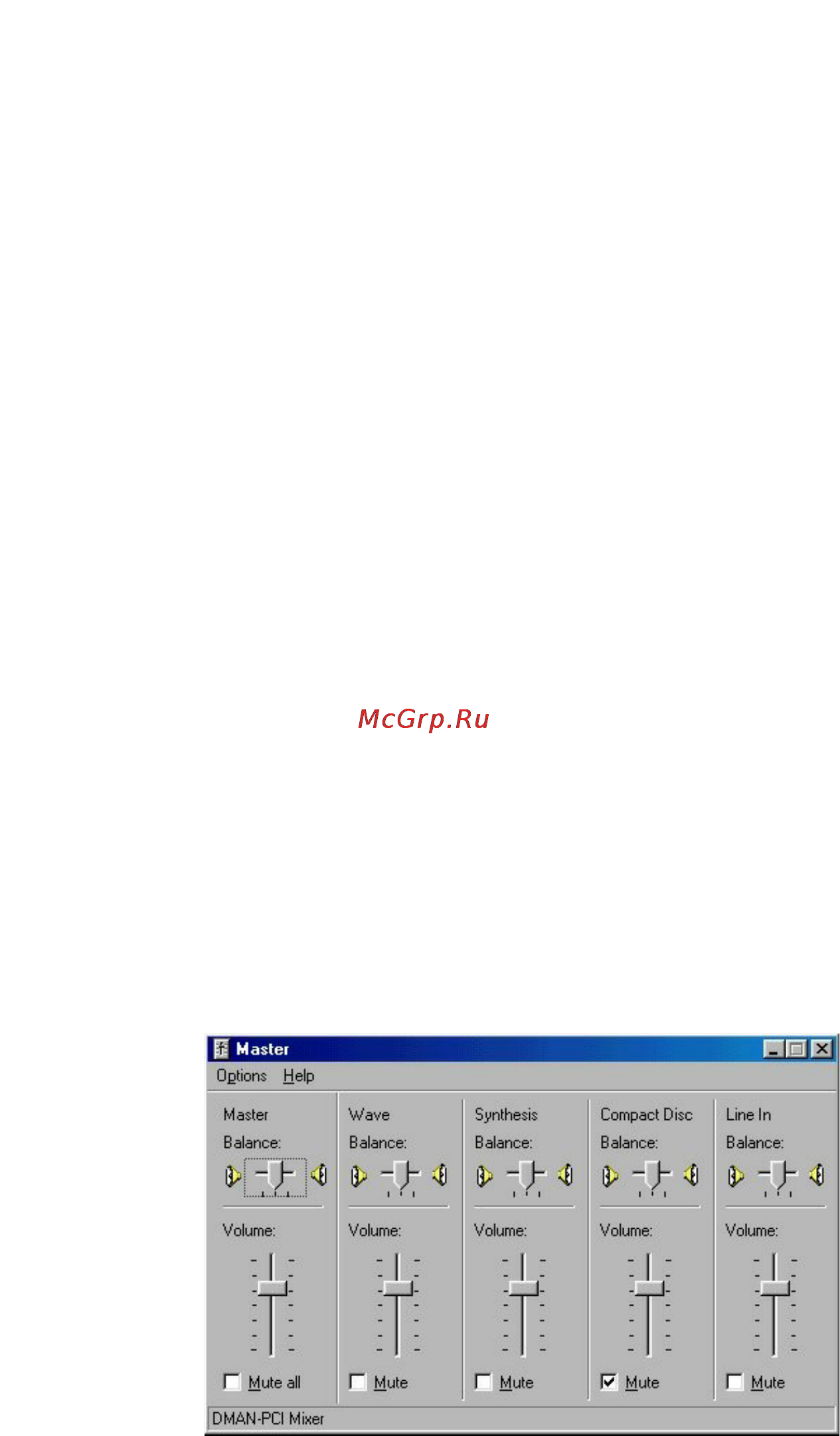

Windows “Master” (Playback) Mixer
The Master mixer is the default mixer and appears each time you open the
Windows volume control. The Master mixer provides control over the play-
back volume and balance for each DMAN PCI audio source:
• Master – This is the board’s master volume/balance; it controls the overall
level at the board’s Line Out jack.
• Wave – This sets the output level/balance from the board’s D/A converter.
• Synthesis – This sets the output level/balance of the onboard synthesizer.
• DaughterBd – This sets the output level/balance of the daughterboard syn-
thesizer if a daughterboard is installed.
• Compact Disc – This sets the output level/balance of the audio coming
from your CD-ROM, if connected to the board.
• Line In – This sets the output level/balance of the Line Input. This control
may be used to monitor the Line In signal during full-duplex
recording/playback.
To adjust volume levels and balances, simply click and drag the desired con-
trols with your mouse. Note that each device also has a “Mute” control. When
18
