Serial Media Converters
3
© Moxa Inc. All rights reserved. Updated Apr. 15, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
PIN RS-232
1 DCD
2 TxD
3 RxD
4 DSR
5 GND
6 DTR
7 CTS
8 RTS
DB9 female
connector
DIP Switch Settings
5 4 3 2 1
9 8 7 6
DIP Switch Settings
RS-422 with
Terminator
SW1 SW2 SW3
OFF OFF ON
RS-422 SW1 SW2 SW3
OFF OFF OFF
4-wire RS-485
with Terminator
SW1 SW2 SW3
ON OFF ON
4-wire RS-485 SW1 SW2 SW3
ON OFF OFF
2-wire RS-485
with Terminator
SW1 SW2 SW3
ON ON ON
2-wire RS-485 SW1 SW2 SW3
ON ON OFF
ON
1 2 3
TCC-80I
TCC-80-DB9, TCC-80I-DB9
DB9 male RS-422/485 port
PIN RS-422/RS-485-4w RS-485-2w
1 TxD+(B) –
2 TxD-(A) –
3 RxD+(B) Data+(B)
4 RxD-(A) Data-(A)
5 GND GND
6 – –
7 – –
8 – –
1 2 3 4 5
6 7 8 9

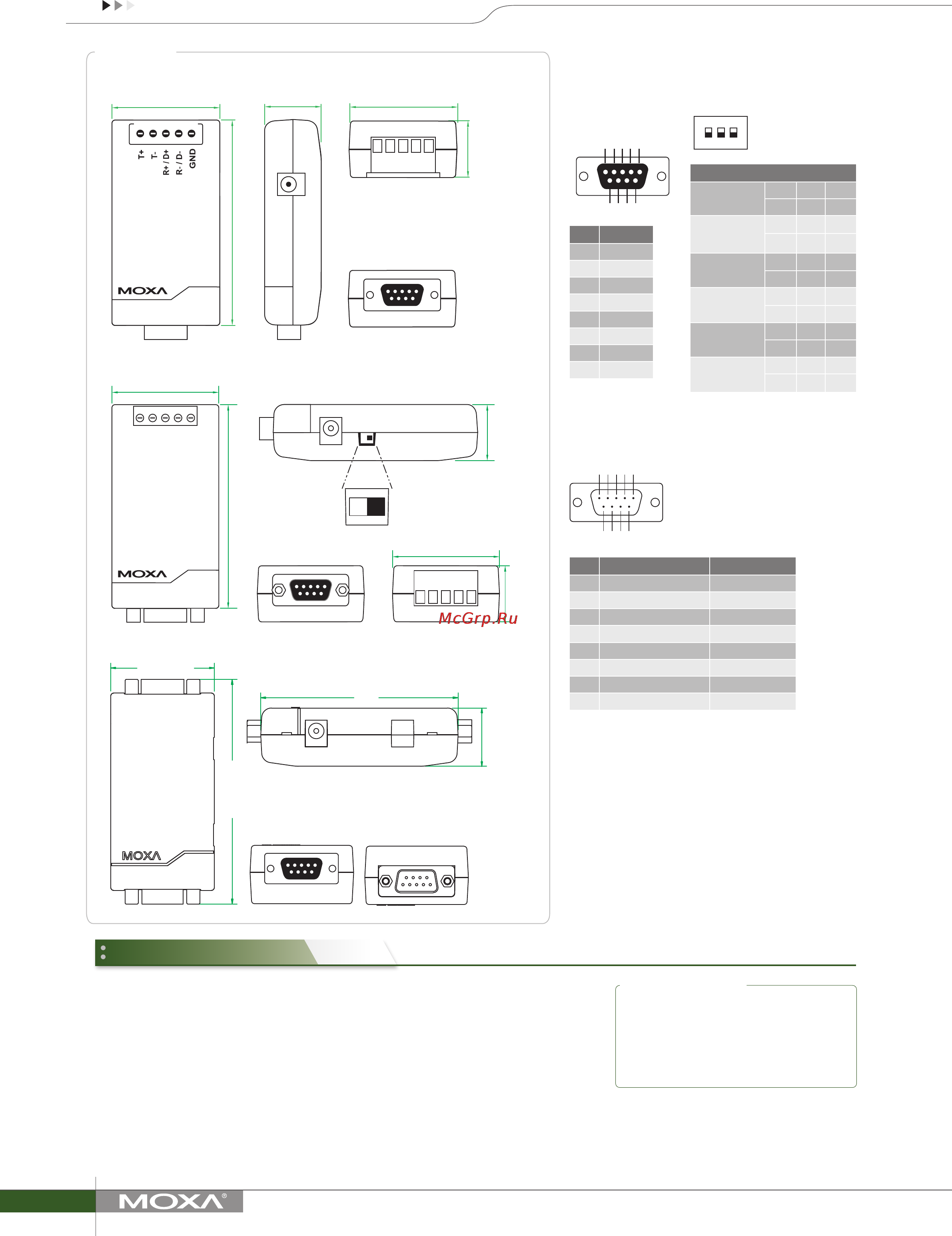

Dimensions
Unit: mm (inch)
42.00 [1.654]
91.00 [3.583]
80.0
23.60 [0.929]
TCC-80
Ordering Information
Available Models
TCC-80: Port-powered RS-232 to RS-422/485 converter with terminal block on the RS-422/485 side
TCC-80-DB9: Port-powered RS-232 to RS-422/485 converter with DB9 male connector on the
RS-422/485 side
TCC-80I: Port-powered RS-232 to RS-422/485 converter with terminal block on the RS-422/485 side,
and 2.5 kV optical isolation
TCC-80I-DB9: Port-powered RS-232 to RS-422/485 converter with DB9 male connector on the
RS-422/485 side, and 2.5 kV optical isolation
Optional Accessories (can be purchased separately)
CBL-F9M9-20: DB9 male to DB9 female RS-232 cable (20 cm)
Note: Additional power adapters can be purchased separately. See Appendix A for details.
Power Adapter: See Appendix A for details
Package Checklist
• 1 TCC-80 or TCC-80I media converter
• CBL-USBAP-50: USB A male, 2.1 mm DC
jack cable, 50 cm
• Quick installation guide (printed)
• Warranty card
T+
22.00 (0.87)
42.00 (1.65)
80.00 (3.15)
42.00 (1.65)
T-
R+ / D+
R- / D-
GND
22.00 (0.87)
Test
Mode
SW4
Std.
Mode
42.00 (1.65) 42.00 (1.65)22.00 (0.87)
22.00 (0.87)
80.00 (3.15)
