Serial Media Converters
2
© Moxa Inc. All rights reserved. Updated Apr. 15, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
Specifications
Ordering Information
Available Models
TCC-82: Port-powered RS-232 isolator with 4 kV isolation
Optional Accessories (can be purchased separately)
CBL-F9M9-20: DB9 male to DB9 female RS-232 cable (20 cm)
Note: Additional power adapters can be purchased separately. See Appendix A for details.
Power Adapter: See Appendix A for details
Package Checklist
• 1 TCC-82 RS-232 isolator
• CBL-USBAP-50: USB A male, 2.1 mm DC
jack cable, 50 cm
• Quick installation guide (printed)
• Warranty card
Serial Communication
Baudrate: 50 bps to 921.6 kbps
Optical Isolation: 4 kV for 1 minute
Serial Interface
Serial Standards:
RS-232: TxD, RxD, RTS, CTS, GND
(Loop-back wiring: DTR to DSR and DCD)
Connector: DB9 male and DB9 female
Physical Characteristics
Housing: ABS
Dimensions: 42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)
Weight: 60 g (0.13 lb)
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements
Source of Input Power: RS-232 port (TxD, RTS, DTR) or power input
jack
Input Voltage: 5 to 12 VDC
Input Current: 20 mA @ 5 VDC
Standards and Certifications
Safety: UL 60950-1
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class B
EMS:
EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV
EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m
EN 61000-4-4 (EFT): Power: 0.5 kV
EN 61000-4-5 (Surge): Power: 1 kV
EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m
EN 61000-4-8 (PFMF)
Green Product: RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time: 959,780 hrs
Standard: MIL-HDBK-217F
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty

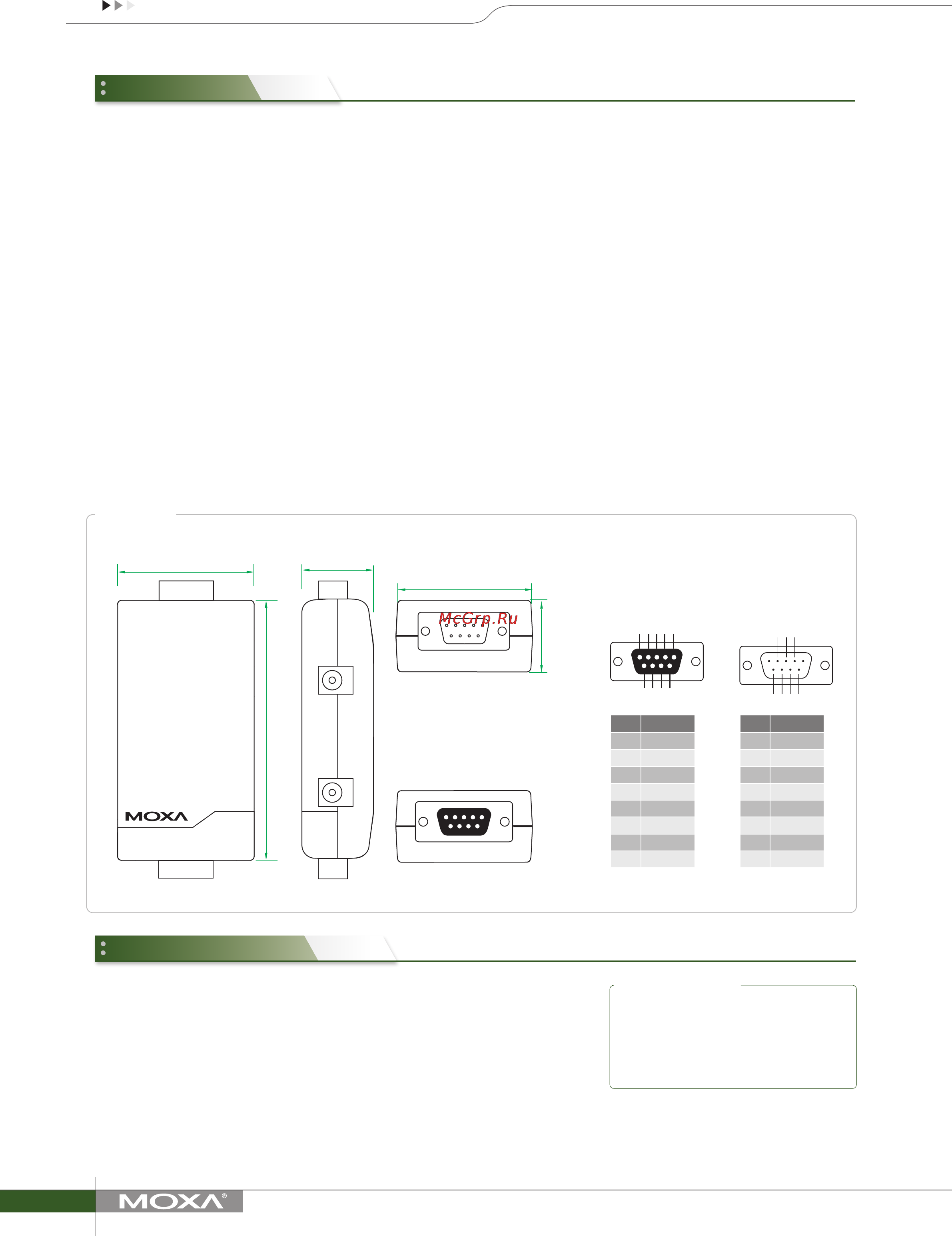

Dimensions
Unit: mm (inch)
PIN RS-232
1 DCD
2 TxD
3 RxD
4 DSR
5 GND
6 DTR
7 CTS
8 RTS
PIN RS-232
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
DB9 female
connector
DB9 male
connector
5 4 3 2 1
9 8 7 6
1 2 3 4 5
6 7 8 9
42.00 (1.65)
42.00 (1.65)
23.60 (0.93)
23.60 (0.93)
80.00 (3.15)
