Serial Media Converters

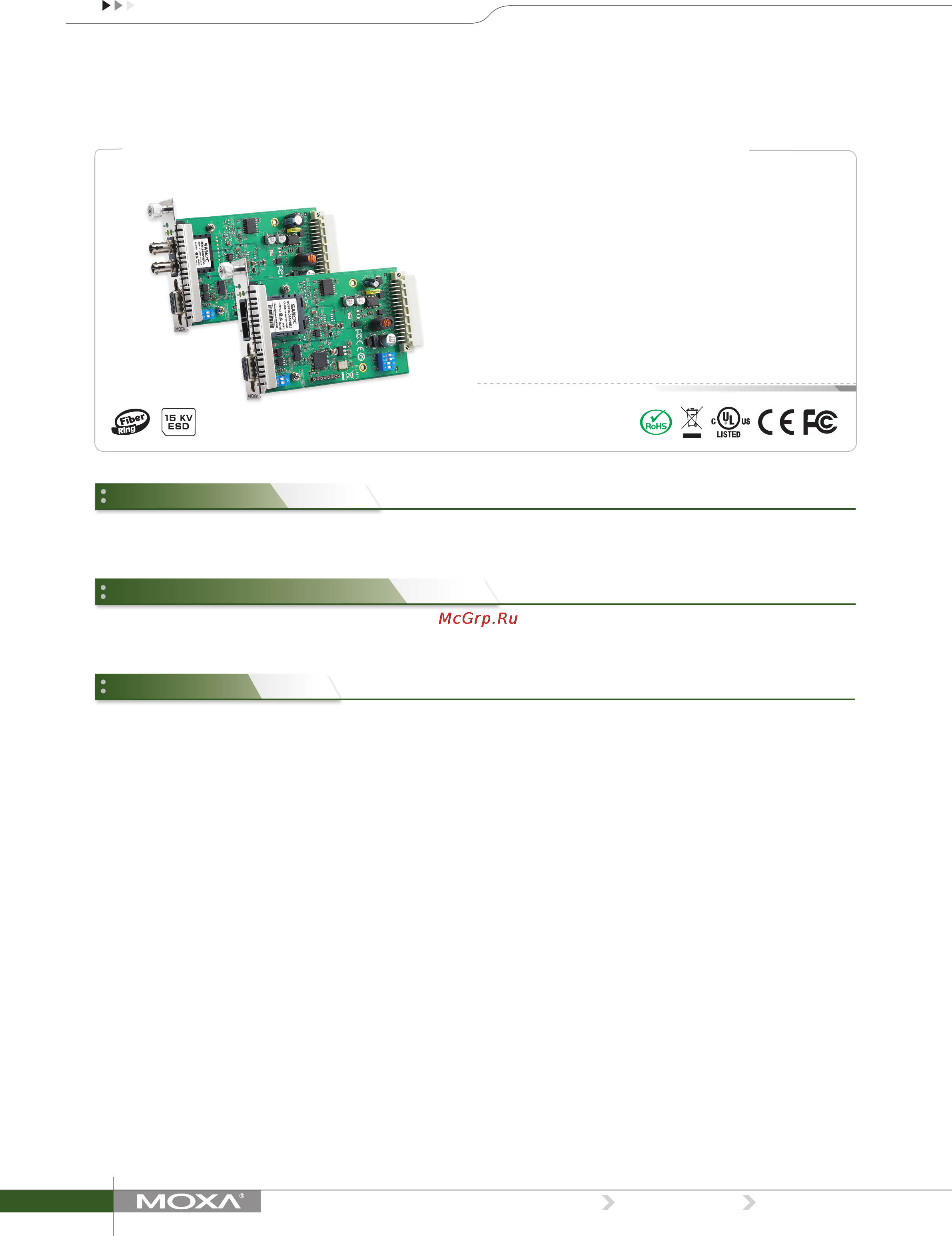

TCF-142-RM Series
RS-232/422/485 to fiber slide-in modules for the NRack System™
The TCF-142-RM series of serial-to-fiber converters are slide-in
modules that work with the TRC-190 chassis. The modules convert
The TCF-142-RM series can automatically detect the serial baudrate.
This is an extremely convenient feature. Even if a device’s baudrate
from the RS-232, RS-422, or RS-485 signal to a fiber optic signal.
is changed, the signal will still be transmitted through the media
converter without any problem.
Optical Fiber Side
Fiber Connector: SC or ST
Cable Requirements:
Single-mode: 8.3/125, 8.7/125, 9/125, or 10/125 μm
Multi-mode: 50/125, 62.5/125, or 100/140 μm
Transmission Distance:
Single-mode: 40 km
Multi-mode: 5 km
Wavelength:
Single-mode: 1310 nm
Multi-mode: 850 nm
Tx Output:
Single-mode: > -5 dBm
Multi-mode: > -5 dBm
Rx Sensitivity:
Single-mode: -25 dBm
Multi-mode: -20 dBm
Point-to-Point Transmission: Half-duplex or full-duplex
Ring Transmission: Half-duplex
RS-232/422/485 Side
Connector: DB9
RS-232 Signals: TxD, RxD, GND
RS-422 Signals: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w Signals: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Signals: Data+, Data-, GND
Baudrate: 50 bps to 921.6 kbps
ESD Protection: 15 kV for all signals
Physical Characteristics
Dimensions: 86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in)
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements
Input Voltage: 12 VDC
Power Consumption: 150 mA @ 12 V
Standards and Certifications
EMC: CE, FCC
EMI: FCC Part 15 Subpart B Class A
EMS:
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 3
Freefall: IEC 60068-2-32
Green Product: RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time: 514,926 hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
› Extend RS-232/422/485 transmission up to:
• 40 km with single-mode
• 5 km with multi-mode
› 1K or 150K ohm adjustable pull high/low resistor
› “Ring” and “Point-to-Point” transmission supported
Introduction
Specifications
Automatic Baudrate Detection
