Moxa TCF-142-M-SC-RM [2/2] Ordering information

Serial Media Converters

TCF-142-M/S-ST-RM Series TCF-142-M/S-SC-RM Series

DB9 female

connector

5 4 3 2 1

9 8 7 6

Pin RS-232 RS-422/485-4w RS-485-2w

1 – RxD-(A) Data-(A)

2 TxD RxD+(B) Data+(B)

3 RxD TxD+(B) –

4 – TxD-(A) –

5 GND GND GND

6 – – –

7 – – –

8 – – –

9 – – –

Pin Assignment

Available Models

TCF-142-M-SC-RM: RS-232/422/485 to multi-mode ﬁber slide-in module converter, SC connector

TCF-142-M-ST-RM: RS-232/422/485 to multi-mode ﬁber slide-in module converter, ST connector

TCF-142-S-SC-RM: RS-232/422/485 to single-mode ﬁber slide-in module converter, SC connector

TCF-142-S-ST-RM: RS-232/422/485 to single-mode ﬁber slide-in module converter, ST connector

Package Checklist

• 1 TCF-142-RM ﬁber converter

• Quick installation guide (printed)

• Warranty card

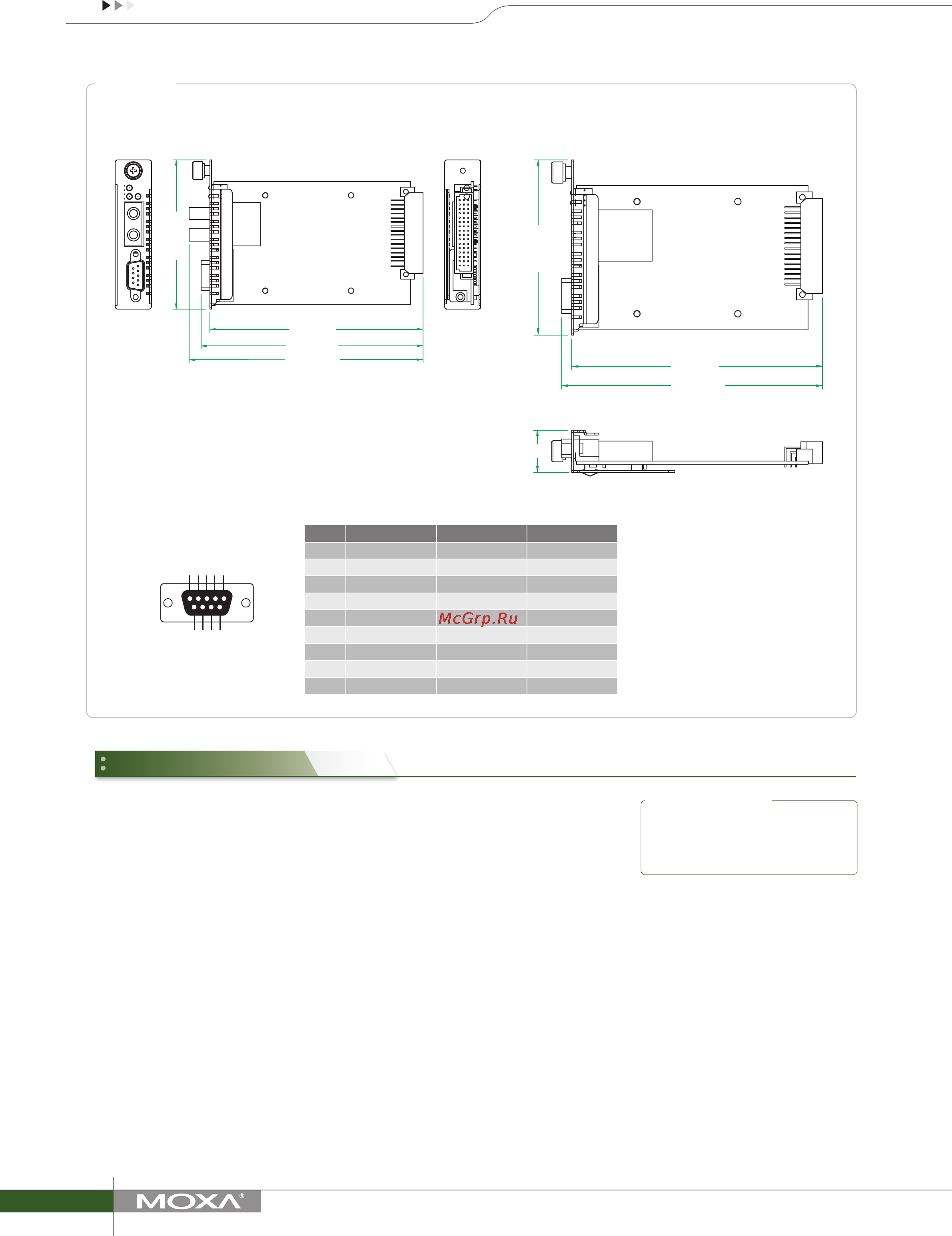

Dimensions

Unit: mm (inch)

124.3 (4.9)

129.3 (5.09)

136.46 (5.38)

86.8 (3.42)

124.3 (4.9)

129.3 (5.09)

(0.83)

Ordering Information
