Installation

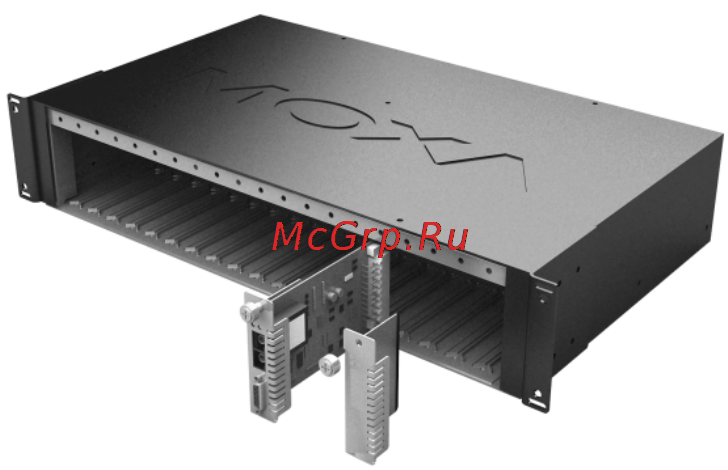

The media converter slide-in module can be hot-swapped, which means

the chassis doesn’t have to power off or be removed during installation.

Align the slide-in module with the chassis installation slot so that the

panel fastener screw is at the top of the module. Carefully slide the

slide-in module into the slot while aligning the module’s circuit board with

the installation guide. Ensure the slide-in module is firmly seated inside

the chassis. Push in and rotate the attached panel fastener screw

clockwise to secure the module to the chassis.

Features

• “Ring” or “Point to Point” transmission

• Extend RS-232/422/485 transmission distance:

 up to 40 km with single-mode—TCF-142-S-XX-RM slide-in

modules series

 up to 5 km with multi-mode—TCF-142-M-XX-RM slide-in modules

series

• Slide-in modules of NRack system

• Decrease signal interference

• Protect against electrical degradation and chemical corrosion

• Support baudrate up to 921.6 Kbps

Package Checklist

Before installing the TCF-142-RM slide-in module, verify that the package

contains the following items:

• TCF-142-RM slide-in module Fiber Converter

• Quick Installation Guide

• Warranty Card

NOTE: Please notify your sales representative if any of the above items

are missing or damaged.
