Manager, if and when you choose the Delta as the Sound Manager input
and output device. If you go to the Apple menu | Control Panel |Sounds
and highlight the Delta icon for Sound In and Sound Out, then your
Apple system sounds will be routed to the Delta hardware output that
you have selected here, and Alert Sounds, if you choose to record, will
receive their input from the Delta hardware input that you select here.
You will want to choose the Delta for input and output in the Sound
control panel if your music program does not use ASIO and the Delta
ASIO drivers. If you are using the ASIO drivers (see Mac Software
Installation), then leave the Sound control panel selection set to “built-
in.” With the Sound control panel set to built-in, these Sound Manager
settings in the Delta Control Panel will have no effect.
The Sound Manager driver limits you to using only one of the Delta
R-BUS stereo input pairs for audio input and only one of the stereo
output pairs for output. These do not need to be matched pairs- you can
use inputs 1&2 for Sound In and S/PDIF for Sound Out, for example, or

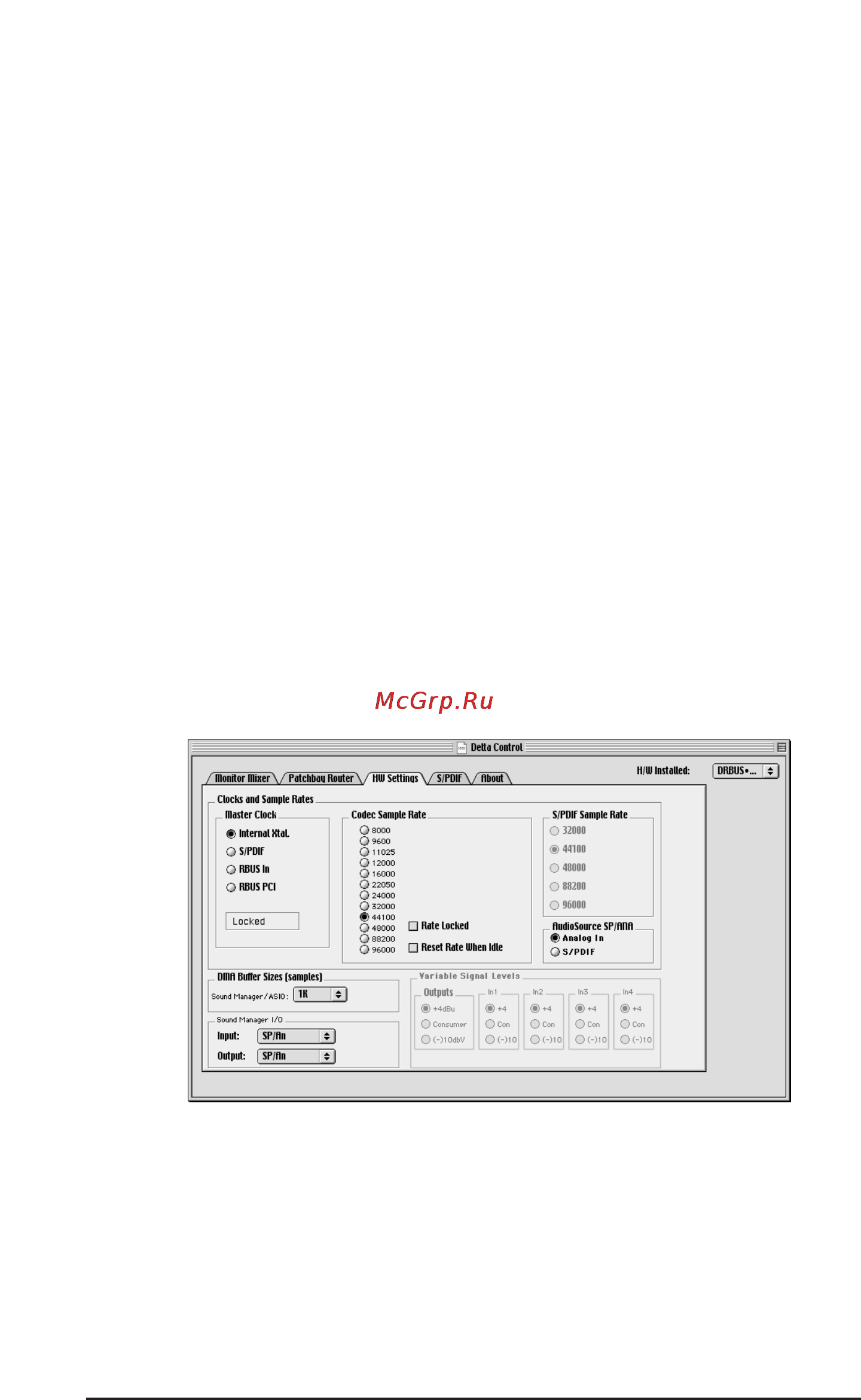

any combination that you choose. The following screen shot shows the
Hardware Settings page on the Mac with the Sound Manager I/O set to
“SP/ANA” for Input and “SP/ANA” for Output. Once you have made a
selection, go to the File menu and “Save as Preferences.”
S/PDIF Page
The S/PDIF page of the Delta Control Panel configures the S/PDIF
output format and displays the status of the S/PDIF input. To display this
page, click the "S/PDIF" tab of the Delta Control Panel software.
DIGITAL INPUT
This group box displays the current S/PDIF input status. The Delta
30
