Moxa NA-4010 [3/7] Removing the i o module from the din rail
![Moxa NA-4020 [3/7] Removing the i o module from the din rail](/views2/1201170/page3/bg3.png)
- 3 -

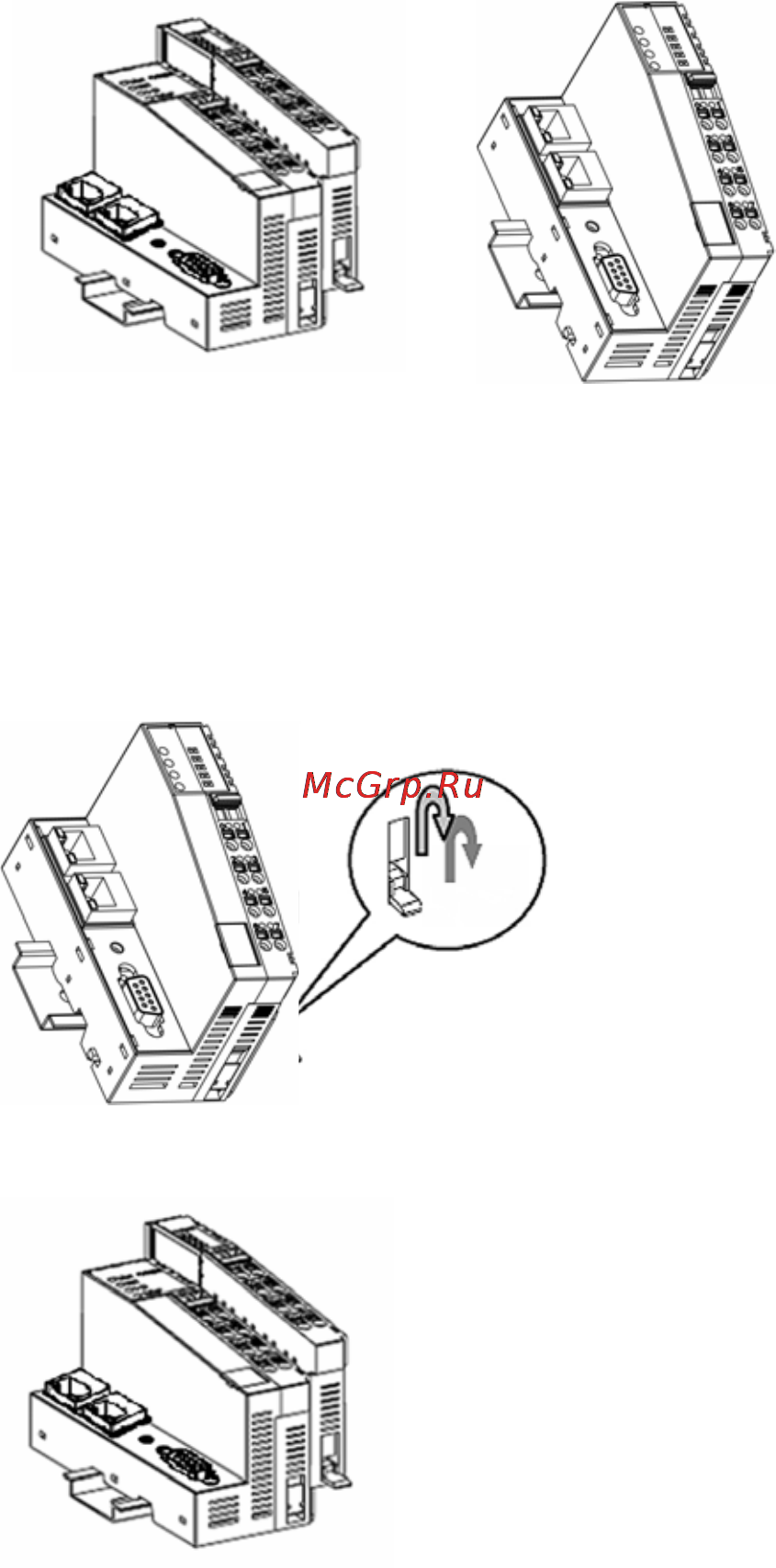

Step 2: Align the I/O module side by side with the network module and then
push the I/O module until it touches the DIN-rail. Next, apply more
force until the module clips to the DIN-rail.
Removing the I/O Module from the
DIN-Rail
Step1: Use your finger or a screw driver to pull down the tab on the lower
part of the module.
Step2: While still holding down the tab, pull out the Module.
