Click&Go V2 Click&Go Examples and Applications
4-27
Moxa Solution
The ioLogik E2210 Active Ethernet I/O server is designed for mixed I/O applications. The 12 digital inputs can
connect to various kinds of sensors and switches and the 8 built-in digital outputs provide the best flexibility in
connecting to multiple alarm devices. With the world’s easiest local control logic, Click&Go, users can easily
program the ioLogik E2210 as a front-end alarm controller to automatically generate the response actions,
such as the alarm lights and speaker, when the emergency buttons are activated.
Solution Benefits
The ioLogik E2210 provides the restroom alarm system with the following benefits:
• A controller equipped with both digital input and digital output channels
• More local input functions such as local acknowledgement and open detection of the control box
• Click&Go’s easy IF-THEN-ELSE style control logic, which eliminates the need for a PLC or RTU
• Simultaneous control for local and remote Ethernet
• Alarm messaging can be generated via TCP, UDP, or SNMP trap, or e-mail
• Compact size and cost-effectiveness
Additional Features
The ioLogik E2210 is also equipped with the following features:
• CGI Command to integrate video surveillance to record or take snapshots during an emergency
• Moxa’s Active OPC server to connect Logik devices to the most popular SCADA systems.

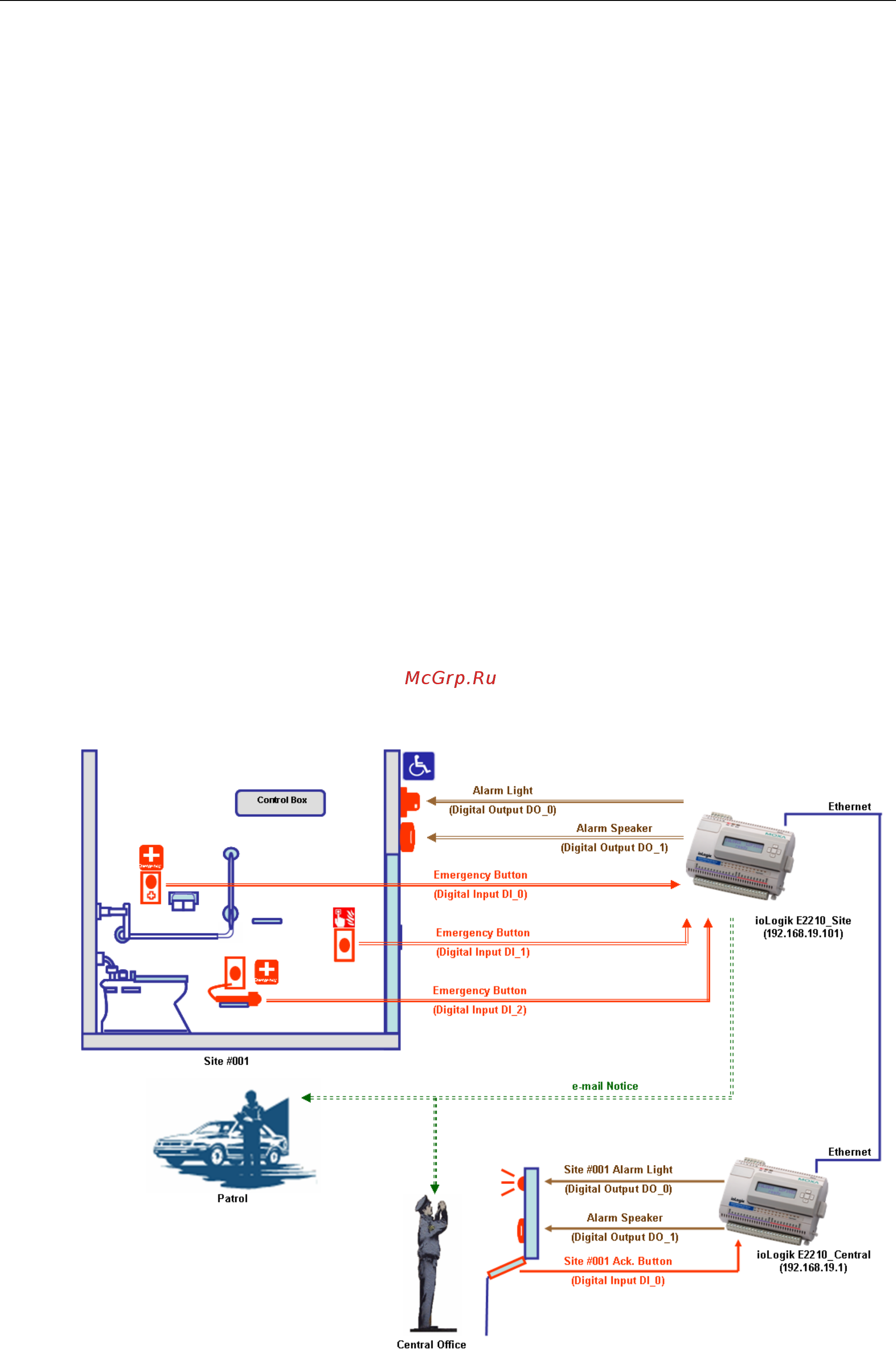

System Diagram
