Programmable RTU Controllers

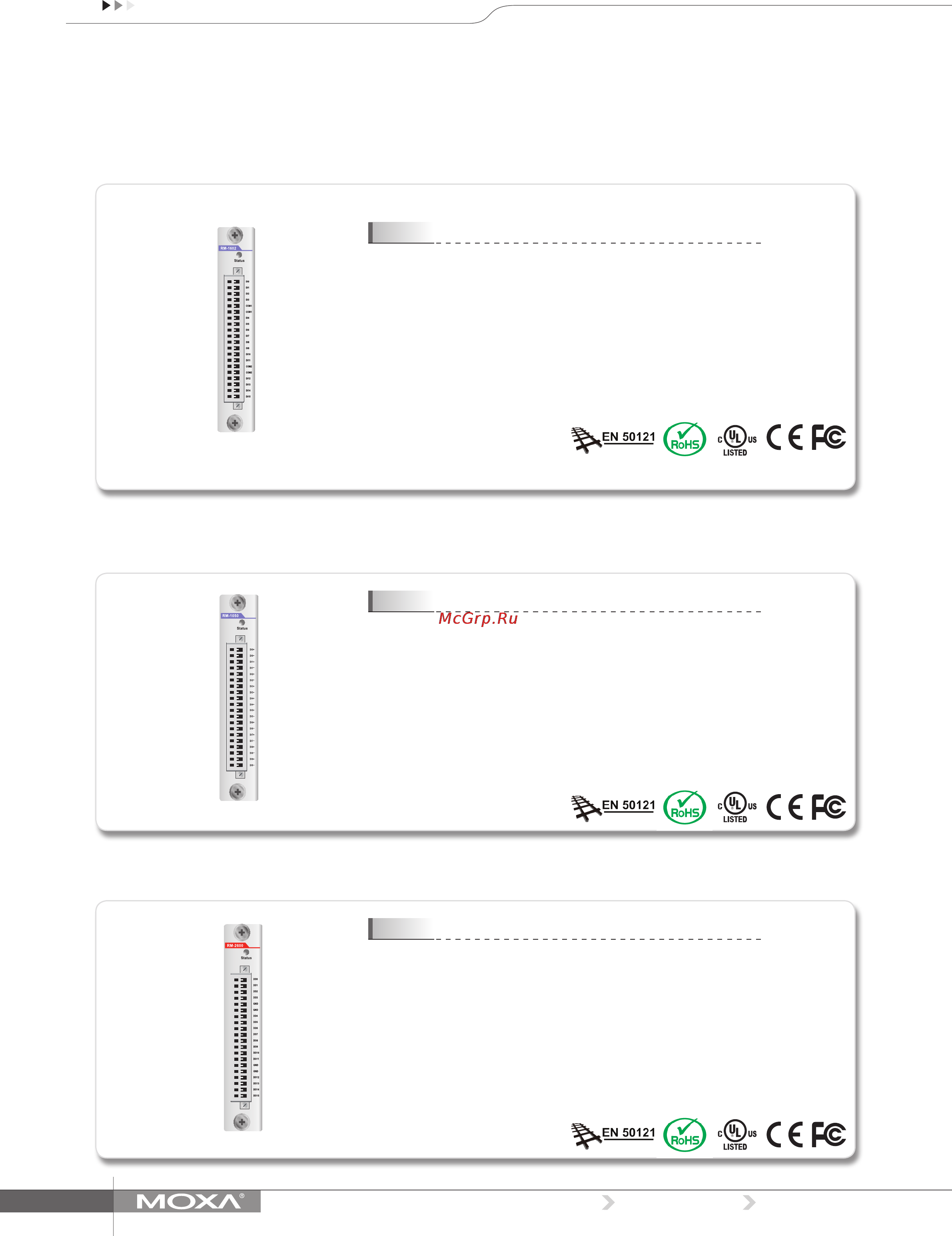

I/O Modules for ioPAC 8020 Products
16-channel 24 VDC digital input module
16-channel digital output module
10-channel 110 VDC digital input module
RM-1602-T: 16 digital inputs, 24 VDC, sink/source type
Digital Inputs: 16 channels, 24 VDC, sink/source type
On: 10 to 30 VDC
Off: 0 to 3 VDC
Input Impedance: 3k ohms (typical)
Common Type: 8 points per 2 COMs
Response Time: 10 ms
Isolation: 3k VDC or 2k Vrms
Operating Temperature: -40 to 75°C
Power Consumption: 7 mA @ 24 VDC
Wiring: I/O cable, max. 14 AWG
MTBF: 4,132,863 hrs (Database: Telcordia/Bellcore)
RM-1050-T: 10 digital inputs, 110 VDC, isolated
Digital Inputs: 10 channels, 110 VDC, channel-to-channel isolated
On: 50 to 175 VDC
Off: 0 to 15 VDC
Input Impedance: 120k ohms (typical)
Response Time: 10 ms
Isolation: 3k VDC or 2k Vrms
Channel-to-Channel Isolation: 2.5k VDC
Operating Temperature: -40 to 75°C
Power Consumption: 7 mA @ 24 VDC
Wiring: I/O cable max. 14 AWG
MTBF: 3,993,435 hrs (Database: Telcordia/Bellcore)
RM-2600-T: 16 digital outputs, 24 VDC, sink type
Digital Outputs: 16 channels, 24 VDC, sink type
Output Impedance: 120m ohms (typical)
Current Rating: 200 mA per channel
Off-state Resistance: 500k ohms (typical)
Response Time: 10 ms
Over Current Protection: 2.6 A (4 channels @ 650 mA)
Isolation: 3k VDC or 2k Vrms
Operating Temperature: -40 to 75°C
Power Consumption: 10 mA @ 24 VDC
Wiring: I/O cable max. 14 AWG
MTBF: 4,440,241 hrs (Database: Telcordia/Bellcore)
