ioPAC 8500 Hardware Installation
2-9

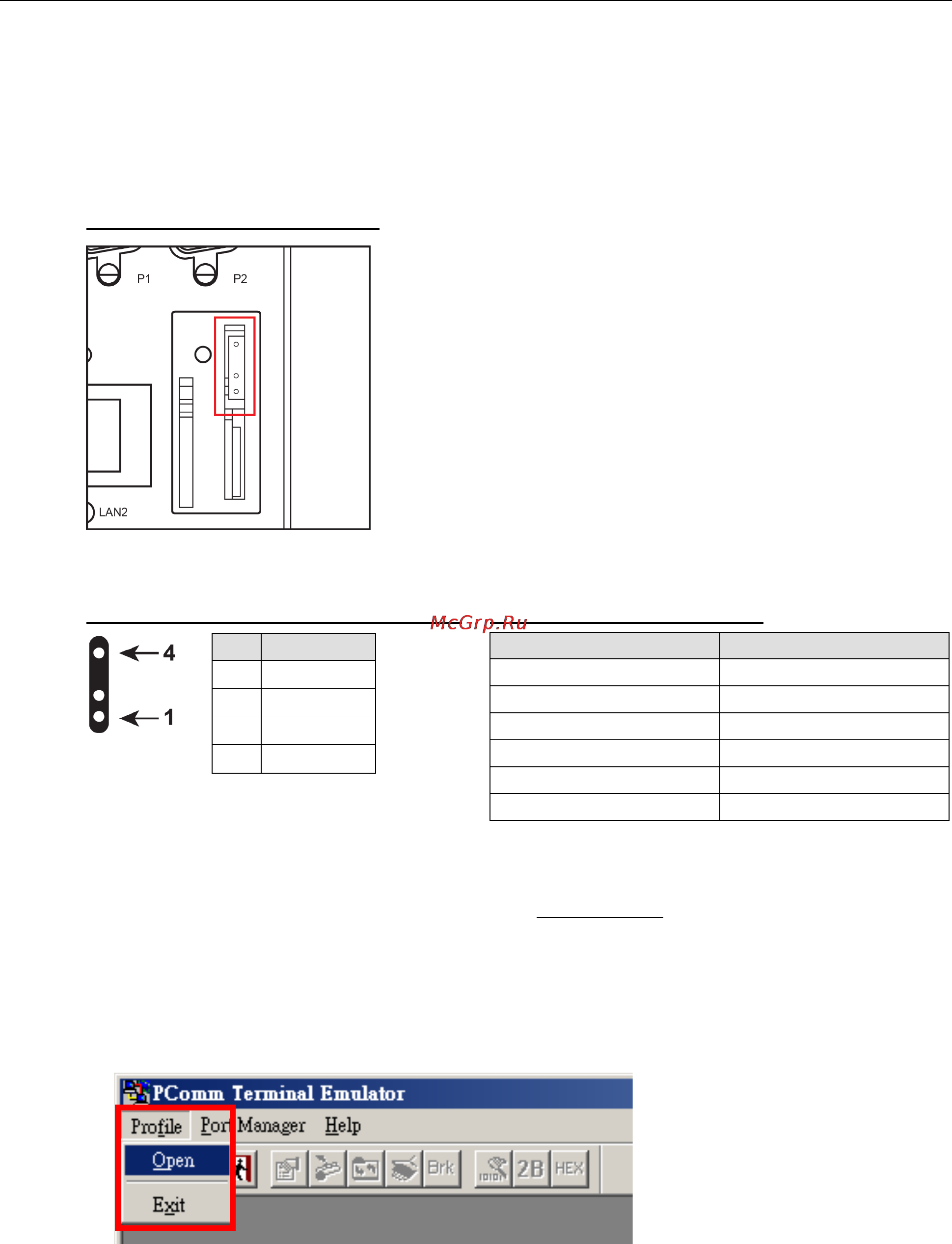

Serial Console (Debug Port)
The serial console gives users a convenient way of connecting to the RTU controllers. This method is
particularly useful when using the computer for the first time. The serial console is also effective for connecting
the Moxa RTU controllers when you do not know target network settings and IP addresses.
Step 1: To use the serial console, remove the cover from the front/top panel first.
Console Port for the ioPAC Series
Step 2: Attach the 4-pin serial console cable to the console port. The following diagram shows the 4-pin serial
connector and pin connections.
Pin Assignment for the Serial Console Port
Serial Console Default Settings
Pin Definition
1 TxD
2 RxD
3 NC
4 GND
Parameter Value
Baudrate 115200 bps
Parity None
Data bits 8
Stop bits 1
Flow Control None
Terminal VT100
We recommend using Moxa PComm Terminal Emulator to connect to the serial console. The following steps
describe how to connect the console.
1. Download Moxa PComm Lite from the Moxa website (www.moxa.com
) or copy it from the following folder
on the Documentation and Software CD: Software\utility\PComm\.
2. Install Moxa PComm Lite to the host Windows PC.
3. Run PComm Lite Terminal Emulator from Start Programs PComm Lite Ver 1.x Terminal
Emulator.
4. Click Profile Open.
