ioPAC 8500 Hardware 85M Module Hardware Introduction
4-16
Accuracy:
±0.1% FSR @ 25°C ±0.3% FSR @ -40 and 75°C
Input Impedance:
1 Mohms (min.)
Physical Characteristics
Wiring:
I/O cable, max. 16 AWG
Connector:
Spring type terminal block
Environmental Limits
Operating Temperature:
-40 to 75°C

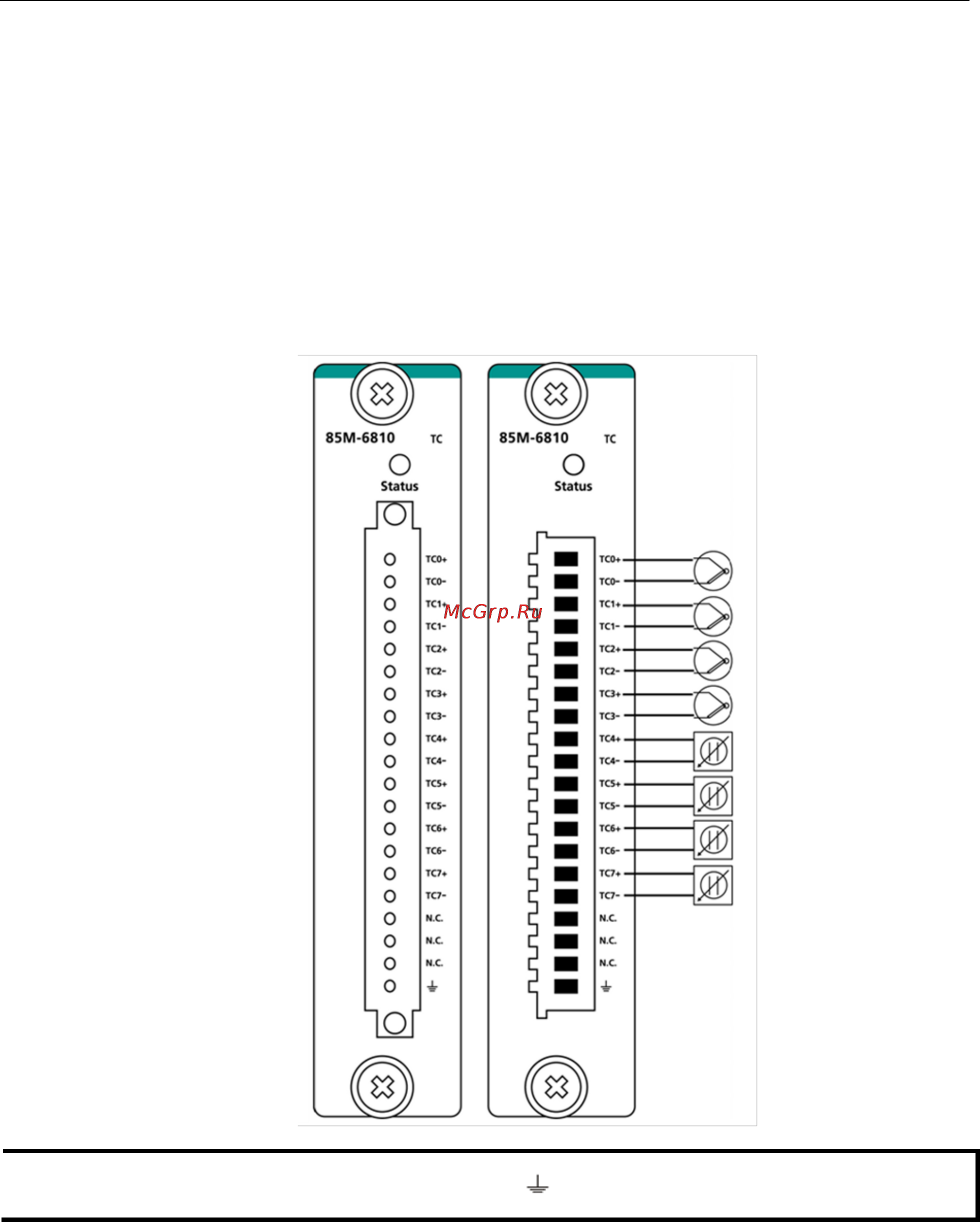

Pin Assignment and Wiring Guide
The following is the 85M-6810-T module’s pin assignment and wiring guide.
NOTE
Grounding the device throu
gh the earth/ground pin ( ) gives 6kV ESD protection.
