ioPAC 8500 Hardware ioPAC 8500 Hardware Introduction
3-2
Appearance and Dimensions
Appearance
ioPAC 8500 Modular Head

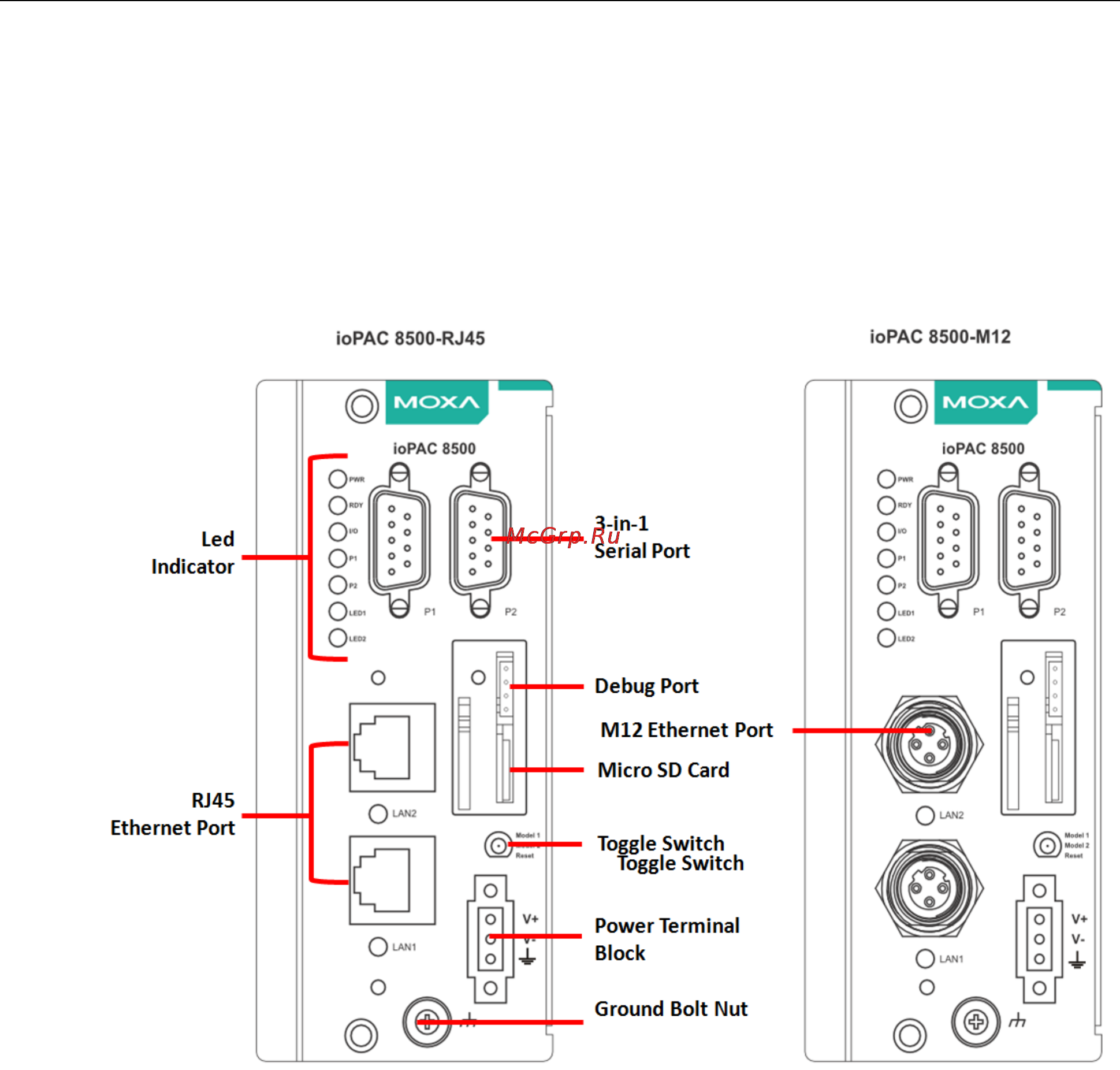

The following figures depict ioPAC 8500 modular heads. There are two types of modular heads, both have dual
Ethernet ports but one is RJ45 and the other is M12.
