Installation

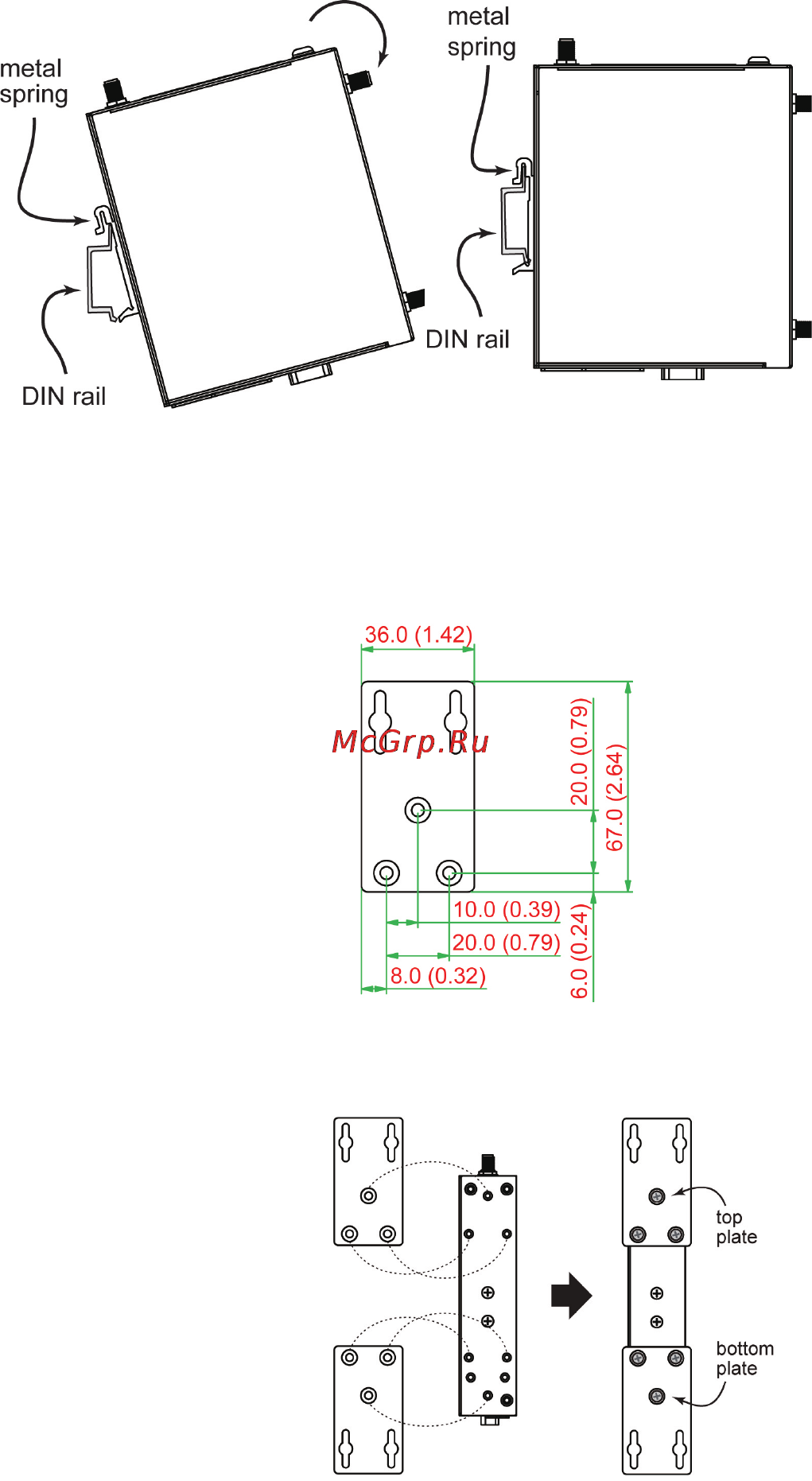

STEP 1: Insert the upper lip of the DIN rail into the top hook of the

DIN

-rail mounting kit.

STEP 2:

Press the OnCell G3150A-LTE series towards the

DIN rail until it

snaps into place.

To remove the OnCell G3150A-LTE from the DIN rail, reverse steps 1 and

2 above.

Wall Mounting (optional)

Wall-Mounting Kit

Dimension

Unit = mm (inch)

For some applications, it may be more convenient to mount the OnCell

G3150A-LTE to a wall, as illustrated below:

STEP 1:

Remove the aluminum

DIN

rail attachment plate

from the OnCell

G3150A

-LTE, and then

attach the wall

-mounting

plates with M3 screws, as

shown in the adjacent

diagram.
