OnCell 5000 Series Web Console Configuration

4-10

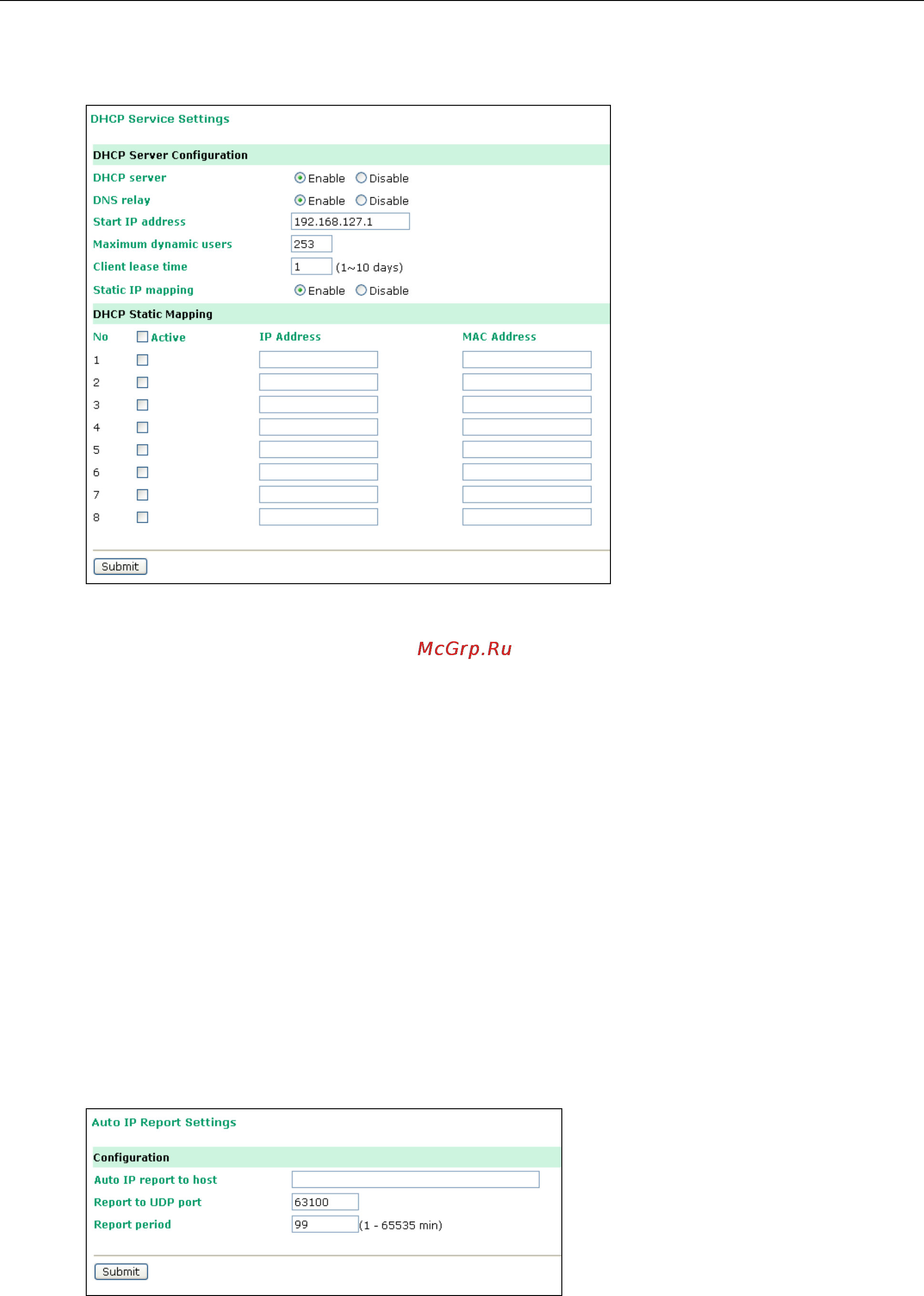

DHCP Settings

DHCP (default=Enable): DHCP stands for Dynamic Host Control Protocol. When you enable the DHCP Server,

it will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your

computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When

you turn your computers on, they will automatically load the proper TCP/IP settings provided by the OnCell

5000. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the

requesting computer. You must specify the starting and ending address of the IP address pool.

DNS relay (default=Enable): If enabled, your computers will use the router as a DNS server. If disabled, the

DNS server information will be transferred from your ISP to your computers.

Start IP address: Enter the starting IP addresses for the DHCP server’s IP assignment.

Note: If you assign static IP addresses to your computers or devices, make sure the IP addresses are outside

of this range or you may have an IP conflict.

Client lease time: The length of time for the IP address lease. Enter the Lease time in days.

Static IP mapping: If enabled, the mapping list allows you to assign specific IP addresses to specific MAC

addresses, provided the IP addresses are in the range specified under DHCP Server Configuration.

Auto IP Report

Auto IP report to host: Reports generated by the Auto report function will be sent automatically to this IP

address or host name.
