- 10 -
Communication Connections
10/100BaseT(X) Ethernet Port Connection
The 10/100BaseT(X) ports located on the WDR-3124A’s front panel are
used to connect to Ethernet-enabled devices. Below we show pinouts for
both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports.

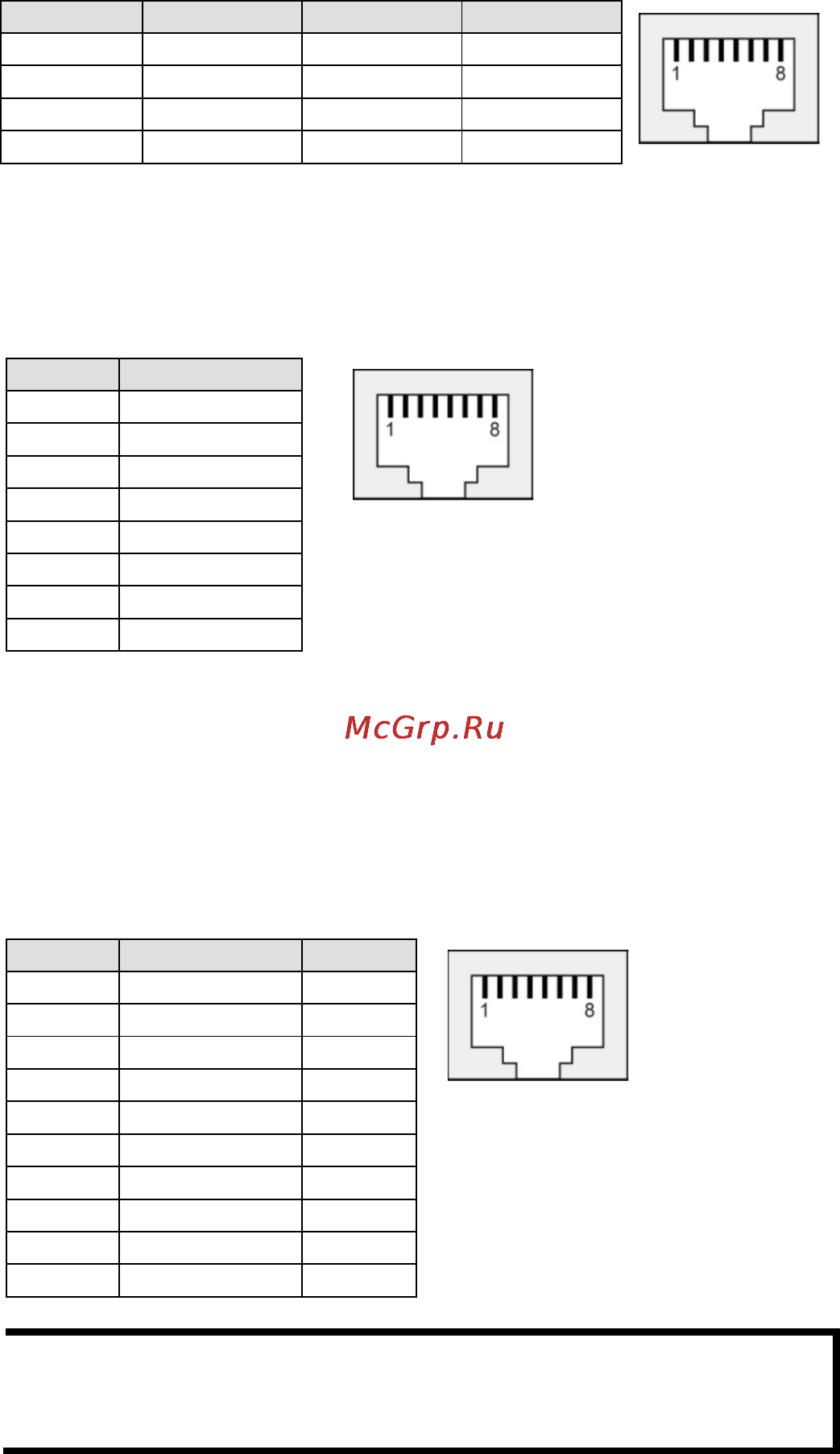

MDI Port Pinouts
MDI-X Port Pinouts
8-pin RJ45
Pin
Signal
Pin
Signal
1
Tx+
1
Rx+
2
Tx-
2
Rx-
3
Rx+
3
Tx+
6
Rx-
6
Tx-
1000BaseT Ethernet Port Connection
1000BaseT data is transmitted on differential TRD+/- signal pairs over
copper wires.
MDI/MDI-X Port Pinouts
Pin
1
2
3
4
5
6
7
8
RS-232 Connection
The WDR-3124A has one RS-232 (8-pin RJ45) console port located on the
front panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect
the WDR-3124A’s console port to your PC’s COM port. You may then use
a console terminal program to access the WDR-3124A for console
configuration.
Console Pinouts for 10-pin or 8-pin RJ45
10-Pin
8-Pin
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
9
8
10
NOTE
The pin numbers for both 8-pin and 10-pin RJ45 connectors (and
ports) are typically not labeled on the connector (or port). Refer
to the Pinout diagram above to see how RJ45 pins are numbered.
