VPort 36-1MP System Configuration

4-29

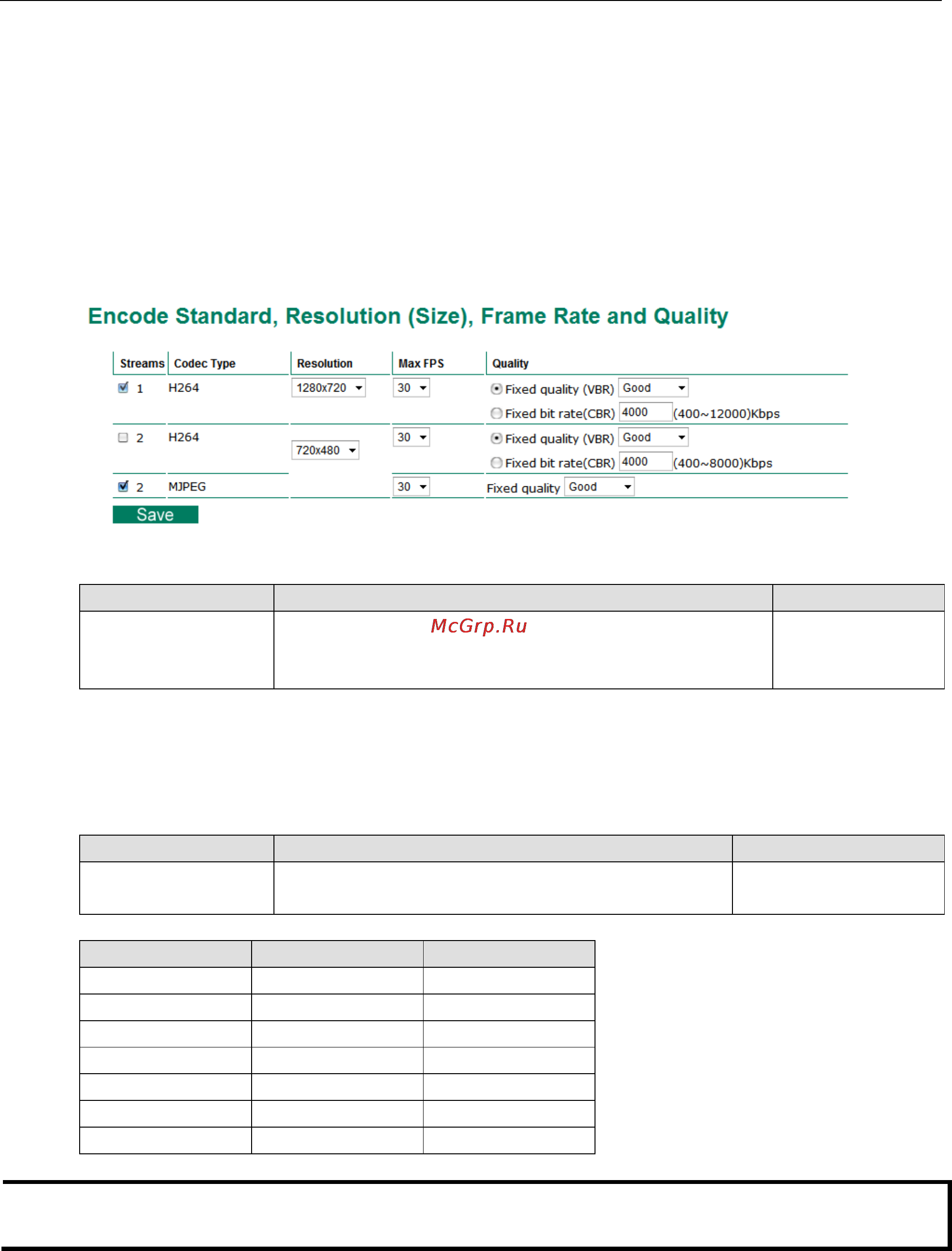

Video Performance

The VPort 36-1MP can send a maximum of three simultaneous video streams: two H.264 and one MJEPG. In

fact, the VPort 36-1MP has two encoder engines. The first encoder engine can generate one completely

independent H.264 video stream, which means that its resolution, FPS, and video quality can be configured

independently. The second encoder engine can generate one H.264 video stream and one MJPEG video stream.

Because both the H.264 and MJPEG video streams come from the same encoder engine, their resolutions must

be the same, but the FPS and the Video Quality can be configured separately. The administrator can set the

Resolution, Max. Frame Rate, and Video Quality on this web page.

Streams

Setting Description Default

Enable the video

streams

Enables the VPort to send this video stream. Enable stream 1:

H.264 and stream 2:

MJPEG

Codec Type

This codec type shows the codec of each video stream.

Resolution

The VPort 36-1MP supports 7 different resolutions: 1MP, HD, SVGA, Full D1, 4CIF, VGA, CIF

Setting Description Default

Select the image size 6 image resolutions (size) are provided. The administrator

can choose each option with NTSC or PAL modulation.

1280 x 720 for stream1;

720 x 480 for stream 2

Resolution NTSC PAL

1MP 1280 x 800 1280 x 800

HD 720P 1280 x 720 1280 x 720

SVGA 800 x 600 800x 600

Full D1 720 x 480 720 x 576

4CIF 704 x 480 704 x 576

VGA 640 x 480 640 x 480

CIF 352 x 240 352 x 288

NOTE

1280 x 800, 1280 x 720, and 800 x 600 are only available in stream 1. QCIF (176 x 112 or 176 x 144) is only

available in stream 2.

The maximum resolution for stream 2 is full D1 resolution.
